固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTX1000-1-52-RFIXED IND 1MH 1.5A 638 MOHM TH Eaton - Electronics Division |
0 |
|
规格书 |
CTX | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 1 mH | ±20% | 1.5 A | 2.1A | Unshielded | 638mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.173" Dia x 0.461" W (29.80mm x 11.70mm) | - |
|
|
CTX20-7-52-RFIXED IND 20UH 11.4A 11 MOHM TH Eaton - Electronics Division |
0 |
|
规格书 |
CTX | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 20 µH | ±20% | 11.4 A | 14.5A | Unshielded | 11mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.276" Dia x 0.780" W (32.40mm x 19.80mm) | - |
|
|
CTX250-2-52-RFIXED IND 250UH 4.2A 83.3MOHM TH Eaton - Electronics Division |
0 |
|
规格书 |
CTX | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 250 µH | ±20% | 4.2 A | 4.2A | Unshielded | 83.3mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.228" Dia x 0.748" W (31.20mm x 19.00mm) | - |
|
|
CTX20-7-52M-RFIXED IND 20UH 11.4A 11 MOHM TH Eaton - Electronics Division |
0 |
|
规格书 |
CTX | Radial, Vertical, 4 Leads (Open) | Bulk | Active | Toroidal | Iron Powder | 20 µH | ±20% | 11.4 A | 14.5A | Unshielded | 11mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.394" L x 0.854" W (35.40mm x 21.70mm) | 1.346" (34.20mm) |
|
|
CTX500-2-52M-RFIXED IND 500UH 3.1A 183 MOHM TH Eaton - Electronics Division |
0 |
|
规格书 |
CTX | Radial, Vertical, 4 Leads (Open) | Bulk | Active | Toroidal | Iron Powder | 500 µH | ±20% | 3.1 A | 3.3A | Unshielded | 183mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.220" L x 0.630" W (31.00mm x 16.00mm) | 1.512" (38.40mm) |
|

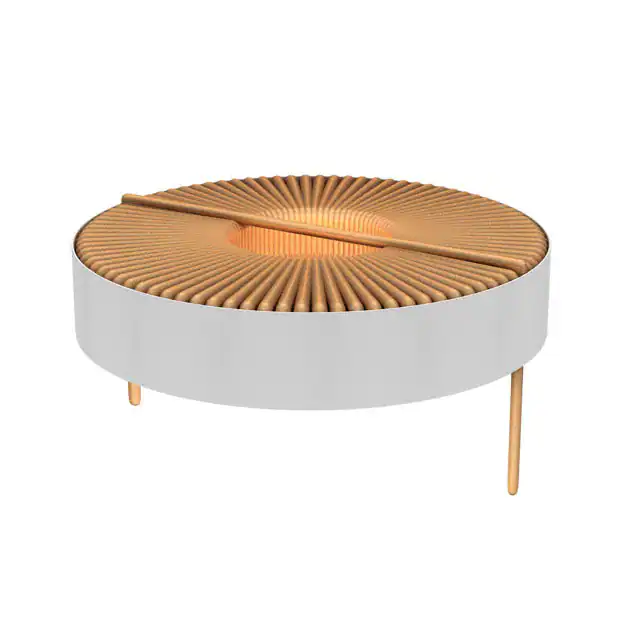

CTX10-10-52LP-RFIXED IND 10UH 16.9A 5.1 MOHM TH Eaton - Electronics Division |
0 |
|
规格书 |
CTX | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 10 µH | ±20% | 16.9 A | 20.9A | Unshielded | 5.1mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.339" Dia (34.00mm) | 0.843" (21.40mm) |
|
|
CTX1000-1-52M-RFIXED IND 1MH 1.5A 638 MOHM TH Eaton - Electronics Division |
0 |
|
规格书 |
CTX | Radial, Vertical, 4 Leads (Open) | Bulk | Active | Toroidal | Iron Powder | 1 mH | ±20% | 1.5 A | 2.1A | Unshielded | 638mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.394" L x 0.854" W (35.40mm x 21.70mm) | 1.228" (31.20mm) |
|
|
CTX500-2-52LP-RFIXED IND 500UH 3.1A 183 MOHM TH Eaton - Electronics Division |
0 |
|
规格书 |
CTX | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 500 µH | ±20% | 3.1 A | 3.3A | Unshielded | 183mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.445" Dia (36.70mm) | 0.583" (14.80mm) |
|
|
CTX50-7-52M-RFIXED IND 50UH 10.5A 16.3MOHM TH Eaton - Electronics Division |
0 |
|
规格书 |
CTX | Radial, Vertical, 4 Leads (Open) | Bulk | Active | Toroidal | Iron Powder | 50 µH | ±20% | 10.5 A | 10.2A | Unshielded | 16.3mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.394" L x 0.854" W (35.40mm x 21.70mm) | 1.587" (40.30mm) |
|
|
CTX500-2-52-RFIXED IND 500UH 3.1A 183 MOHM TH Eaton - Electronics Division |
0 |
|
规格书 |
CTX | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 500 µH | ±20% | 3.1 A | 3.3A | Unshielded | 183mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.445" Dia x 0.583" W (36.70mm x 14.80mm) | - |
