上传BOM
固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WCLA3225V1-R47-RCHIP IND 0.47UH 0.8A SMT 2 PAD Eaton - Electronics Division |
74 |
|
规格书 |
WCLA3225V1 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 470 nH | ±10% | 800 mA | - | Unshielded | 500mOhm Max | 30 @ 25.2MHz | 350MHz | AEC-Q200 | -55°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1210 | 0.142" L x 0.110" W (3.60mm x 2.80mm) | 0.094" (2.40mm) |
|
SDCL1V4020-R47N-RIND 0.47 UH10A SMT Eaton - Electronics Division |
50 |
|
规格书 |
SDCL1V40 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 470 nH | ±30% | 7 A | 10A | Shielded | 20mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
SDCH1V6045-100M-RIND 10 UH 4.50A SMT Eaton - Electronics Division |
0 |
|
规格书 |
SDCH1V60 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±20% | 2.4 A | 4.5A | Shielded | 67mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
EXL1V0503-2R2-RFIXED IND 2.2UH 9.7A 14.5MOHM SM Eaton - Electronics Division |
1 |
|
规格书 |
EXL1V0503 | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 2.2 µH | ±20% | 9.7 A | 9A | Shielded | 14.5mOhm Max | - | 33MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.224" W (6.00mm x 5.70mm) | 0.122" (3.10mm) |
|

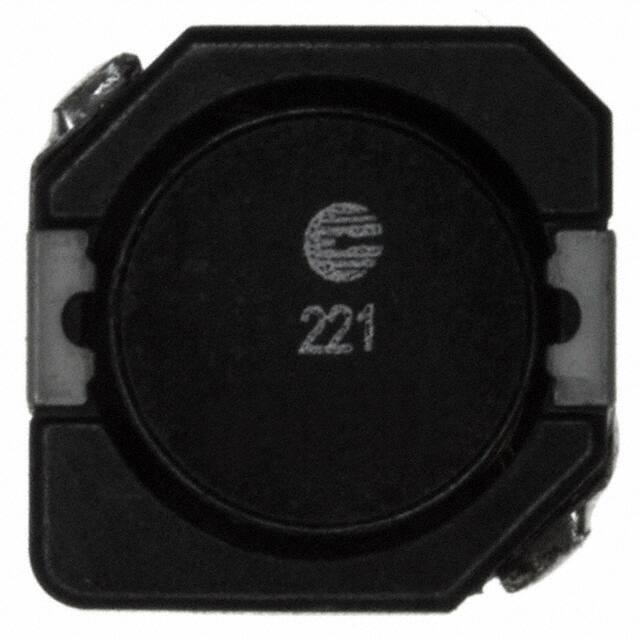

DR1040-221-RFIXED IND 220UH 700MA 640MOHM SM Eaton - Electronics Division |
0 |
|
规格书 |
DR1040 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±30% | 700 mA | 920mA | Shielded | 640mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.157" (4.00mm) |
|
HCMA0703-R82-RFIXED IND 820NH 13A 8 MOHM SMD Eaton - Electronics Division |
0 |
|
规格书 |
HCMA0703 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 820 nH | ±20% | 13 A | 24A | Shielded | 8mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.268" W (7.10mm x 6.80mm) | 0.118" (3.00mm) |
|
HCM1A4020V2-1R0-RFIXED IND 1UH 5.6A 24 MOHM SMD Eaton - Electronics Division |
7 |
|
规格书 |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 1 µH | ±20% | 5.6 A | 7A | Shielded | 24mOhm Max | - | 60MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.079" (2.00mm) |
|
|
EXL1V0603-1R0-RFIXED IND 1UH 18A 6.05 MOHM SMD Eaton - Electronics Division |
25 |
|
规格书 |
EXL1V0603 | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 1 µH | ±20% | 18 A | 18A | Shielded | 6.05mOhm Max | - | 52MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.118" (3.00mm) |
|

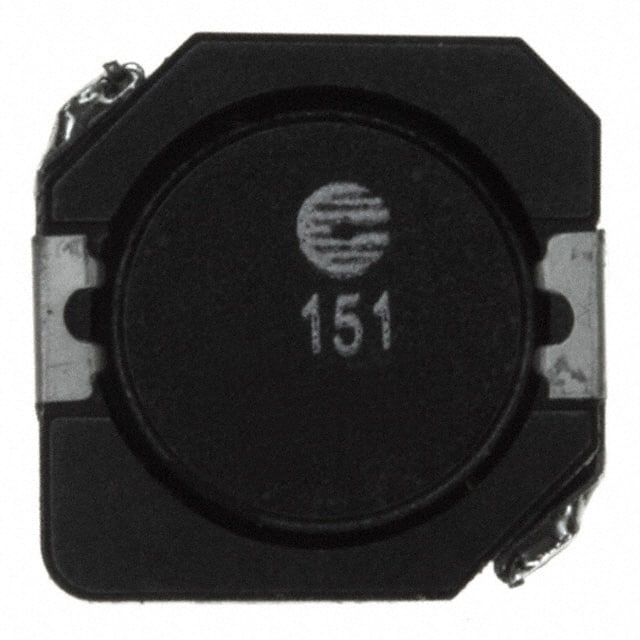

DR1040-151-RFIXED IND 150UH 850MA 430MOHM SM Eaton - Electronics Division |
4 |
|
规格书 |
DR1040 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±30% | 850 mA | 1.15A | Shielded | 430mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.157" (4.00mm) |
|

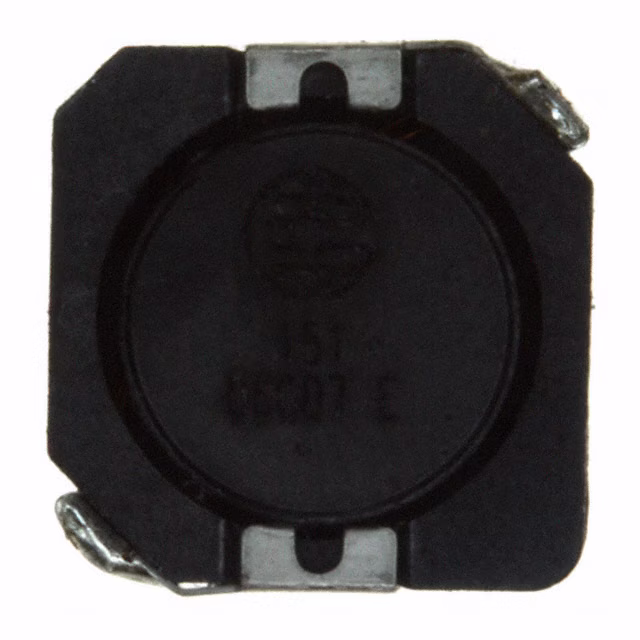

DR1030-151-RFIXED IND 150UH 680MA 700MOHM SM Eaton - Electronics Division |
0 |
|
规格书 |
DR1030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±30% | 680 mA | 860mA | Shielded | 700mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.118" (3.00mm) |
