上传BOM
固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UP2UC-221-RFIXED IND 220UH 800MA 610MOHM SM Eaton - Electronics Division |
81 |
|
规格书 |
UNI-PAC™ 2UC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 220 µH | ±20% | 800 mA | 800mA | Unshielded | 610mOhm Max | - | 5MHz | - | -25°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.205" (5.21mm) |
|
HCM1104-1R0-RFIXED IND 1UH 18A 3.3 MOHM SMD Eaton - Electronics Division |
850 |
|
规格书 |
HCM1104 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1 µH | ±20% | 18 A | 28A | Shielded | 3.3mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.437" L x 0.394" W (11.10mm x 10.00mm) | 0.157" (4.00mm) |
|
EXLA1V0707-2R2-RIND MOLDED SHLD 2.2UH 13.2A Eaton - Electronics Division |
700 |
|
规格书 |
EXLA1V07 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 2.2 µH | ±20% | 17.8 A | 17.6A | Shielded | 6.33mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.315" W (8.40mm x 8.00mm) | 0.276" (7.00mm) |
|
|
EXLA1V0707-6R8-RIND MOLDED SHLD 6.8UH 7.0A Eaton - Electronics Division |
700 |
|
规格书 |
EXLA1V07 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 6.8 µH | ±20% | 9.5 A | 11A | Shielded | 19.6mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.315" W (8.40mm x 8.00mm) | 0.276" (7.00mm) |
|
HCMA1305-R56-RFIXED IND 560NH 36A 1.33MOHM SMD Eaton - Electronics Division |
418 |
|
规格书 |
HCMA1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 560 nH | ±20% | 36 A | 55A | Shielded | 1.33mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
|
HCM1307-R47-RFIXED IND 470NH 38A 1.2 MOHM SMD Eaton - Electronics Division |
353 |
|
规格书 |
HCM1307 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 470 nH | ±20% | 38 A | 63A | Shielded | 1.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.256" (6.50mm) |
|

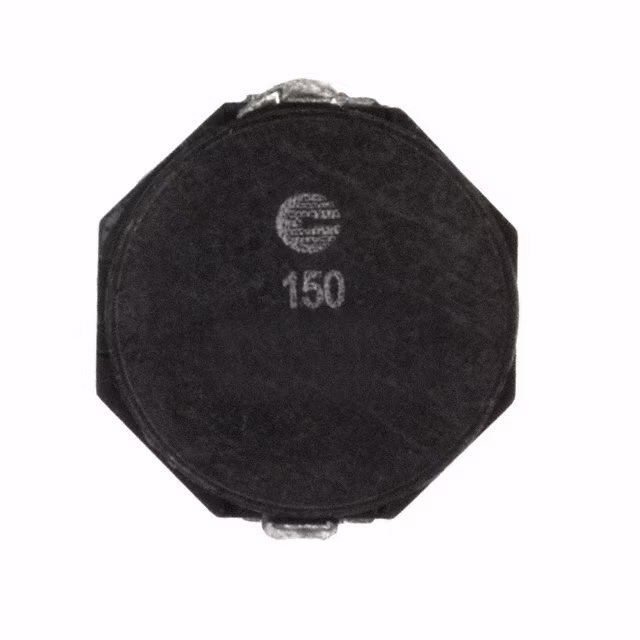

SD8328-150-RFIXED IND 15UH 2.35A 69 MOHM SMD Eaton - Electronics Division |
0 |
|
规格书 |
SD8328 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±30% | 2.35 A | 2A | Shielded | 69mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.374" L x 0.327" W (9.50mm x 8.30mm) | 0.118" (3.00mm) |
|
HCM1A1305V2-6R8-RFIXED IND 6.8UH 9.5A 14MOHM SMD Eaton - Electronics Division |
217 |
|
规格书 |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 6.8 µH | ±20% | 9.5 A | 15A | Shielded | 14mOhm Max | - | 11MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.197" (5.00mm) |
|
FP1007R6-R27-RFIXED IND 270NH 61A 0.29MOHM SMD Eaton - Electronics Division |
120 |
|
规格书 |
FLAT-PAC, FP1007R6 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 270 nH | ±10% | 61 A | 41A | Unshielded | 0.29mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.276" (7.00mm) |
|
|
HCM1A1307V2-220-RFIXED IND 22UH 6A 33.1 MOHM SMD Eaton - Electronics Division |
346 |
|
规格书 |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 22 µH | ±20% | 6 A | 8A | Shielded | 33.1mOhm Max | - | 5MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.256" (6.50mm) |
