固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCM1A1707-1R0-RFIXED IND 1UH 33A 1.55 MOHM SMD Eaton - Electronics Division |
0 |
|
规格书 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 1 µH | ±20% | 33 A | 48A | Shielded | 1.55mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.677" L x 0.663" W (17.20mm x 16.85mm) | 0.276" (7.00mm) |
|
HCM1707-680-RFIXED IND 68UH 5.2A 85 MOHM SMD Eaton - Electronics Division |
0 |
|
规格书 |
HCM1707 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 68 µH | ±20% | 5.2 A | 6.5A | Shielded | 85mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.677" L x 0.663" W (17.20mm x 16.85mm) | 0.276" (7.00mm) |
|
DR73-6R8-RFIXED IND 6.8UH 2.55A 43.5 MOHM Eaton - Electronics Division |
263 |
|
规格书 |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 2.55 A | 3.12A | Shielded | 43.5mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
|

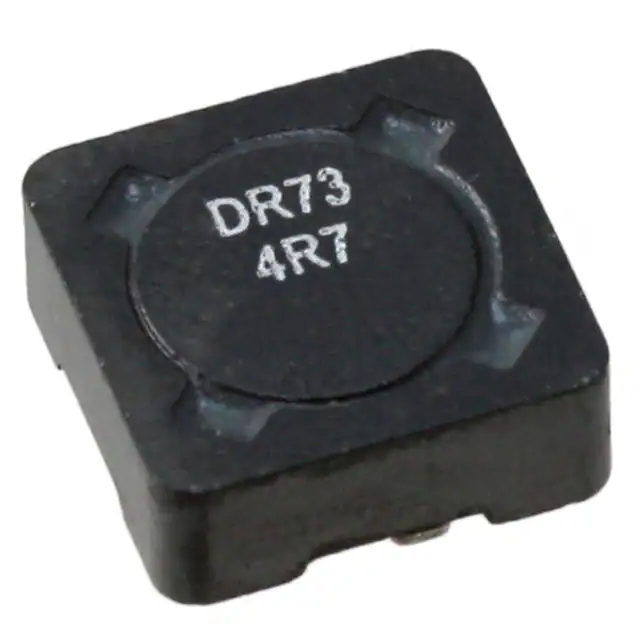

DR73-4R7-RFIXED IND 4.7UH 3.09A 29.7 MOHM Eaton - Electronics Division |
74 |
|
规格书 |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 3.09 A | 3.78A | Shielded | 29.7mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
|
SD52-4R7-RFIXED IND 4.7UH 1.63A 56.8 MOHM Eaton - Electronics Division |
251 |
|
规格书 |
SD52 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.63 A | 1.64A | Shielded | 56.8mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.079" (2.00mm) |
|
SDCH1V8040-102M-RIND 1000 UH0.42A SMT Eaton - Electronics Division |
460 |
|
规格书 |
SDCH1V80 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1 mH | ±20% | 370 mA | 420mA | Shielded | 3.335Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
SDCHA1V8040-330-RIND SMD POWER 33.0UH 2.3A Eaton - Electronics Division |
1,697 |
|
规格书 |
SDCHA1V80 | Nonstandard | Tape & Reel (TR) | Active | - | Nickel Zinc Ferrite (NiZn) | 33 µH | ±20% | 2.3 A | 2.6A | Shielded | 100mOhm | - | 15MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|

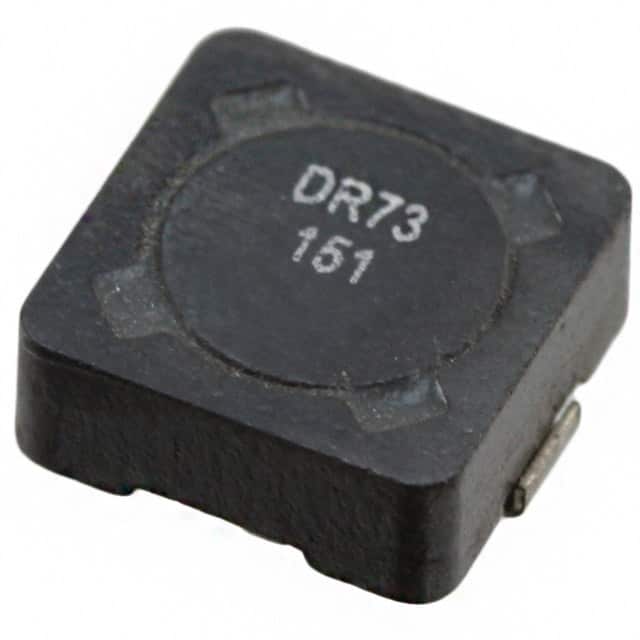

DR73-151-RFIXED IND 150UH 580MA 851MOHM SM Eaton - Electronics Division |
320 |
|
规格书 |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 580 mA | 650mA | Shielded | 851mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
|
DR74-471-RFIXED IND 470UH 400MA 1.74OHM SM Eaton - Electronics Division |
568 |
|
规格书 |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 400 mA | 460mA | Shielded | 1.74Ohm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.171" (4.35mm) |
|
|
DR74-820-RFIXED IND 82UH 910MA 345MOHM SMD Eaton - Electronics Division |
35 |
|
规格书 |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±20% | 910 mA | 1.11A | Shielded | 345mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.171" (4.35mm) |
