固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

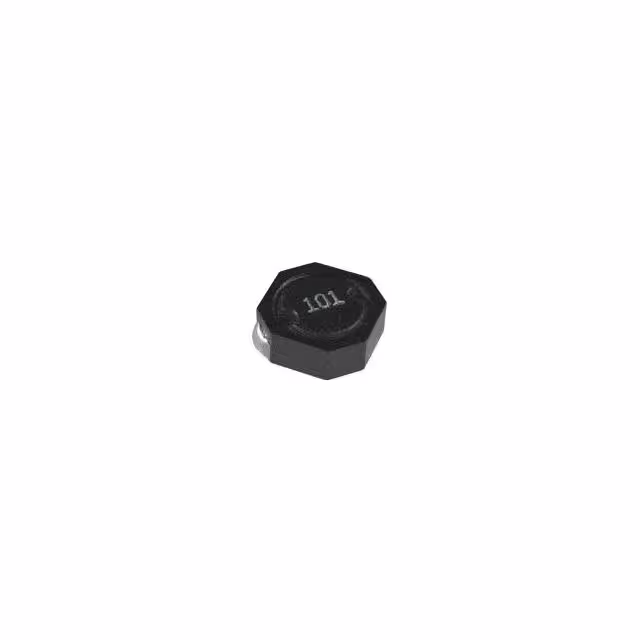

CT914BYF-220MSMD SHIELDED POWER INDUCTOR |
5 |
|
- |
ct914byf | - | Bulk | Obsolete | - | - | 22 µH | ±20% | - | - | - | 275mOhm | - | - | - | -40°C ~ 85°C | - | - | Surface Mount | - | - | - |
|
|
CT914BYF-6R8MSMD SHIELDED POWER INDUCTOR |
5 |
|
- |
ct914byf | - | Bulk | Obsolete | - | - | 6.8 µH | ±20% | - | - | - | 105mOhm | - | - | - | -40°C ~ 85°C | - | - | Surface Mount | - | - | - |
|

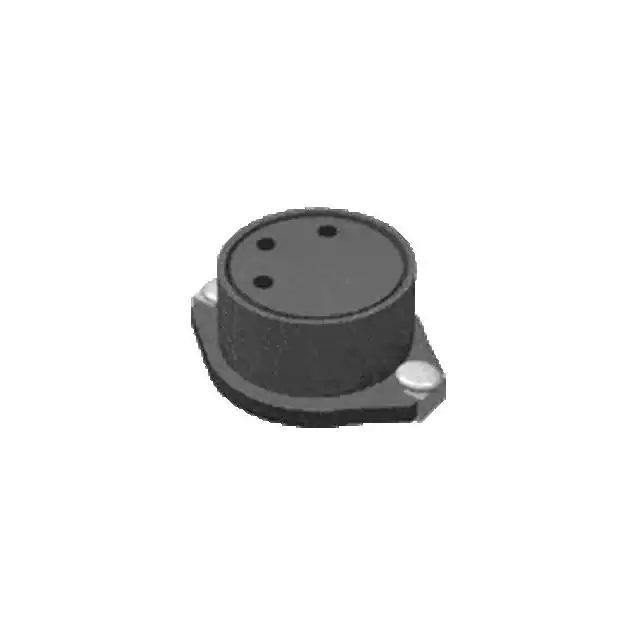

CTDS5022PF-22322UH SMD SHIELDED POWR INDUCTOR |
20 |
|
规格书 |
CTDS5022F | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 3.1 A | 6A | Shielded | 60mOhm Max | 40 @ 100kHz | 14MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.300" (7.62mm) |
|
|
CTDS5022PF-1051000UH SMD SHIELDED PWR INDUCTOR |
15 |
|
规格书 |
CTDS5022F | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 mH | ±20% | 530 mA | 800mA | Shielded | 2Ohm Max | 60 @ 100kHz | 1MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.300" (7.62mm) |
|
|
CTDS5022PF-33333UH SMD SHIELDED POWR INDUCTOR |
15 |
|
规格书 |
CTDS5022F | Nonstandard | Tape & Reel (TR) | Active | - | - | 33 µH | ±20% | 2.8 A | 5A | Shielded | 80mOhm Max | 40 @ 100kHz | 11MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.300" (7.62mm) |
|
CTMSS1278F-181K180UH SMD SHLDED POWER INDUCTOR |
10 |
|
规格书 |
CTMSS1278F | Nonstandard | Tape & Reel (TR) | Active | - | - | 180 µH | ±10% | 1.7 A | 2A | Shielded | 300mOhm Max | - | 4MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
CTMSS1278F-180M18UH SMD SHLDED POWER INDUCTOR |
5 |
|
规格书 |
CTMSS1278F | Nonstandard | Tape & Reel (TR) | Active | - | - | 18 µH | ±20% | 4.5 A | 6.3A | Shielded | 43mOhm Max | - | 12MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|

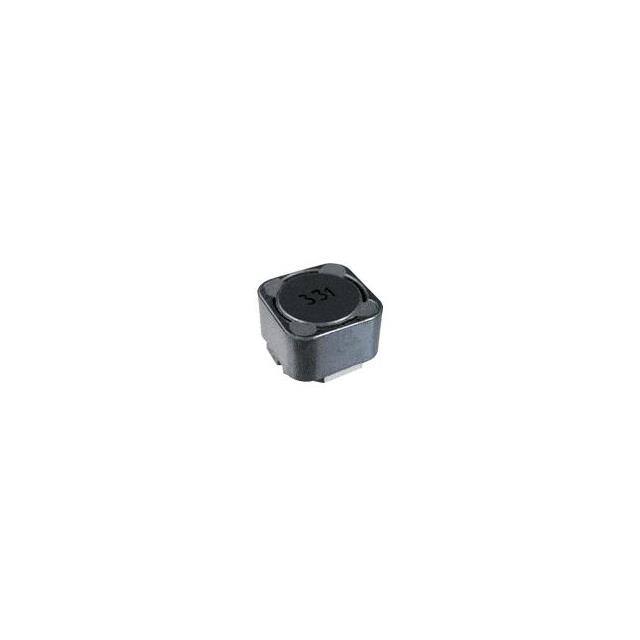

CTMSS1278F-331K330UH SMD SHLDED POWER INDUCTOR |
2 |
|
规格书 |
CTMSS1278F | Nonstandard | Tape & Reel (TR) | Active | - | - | 330 µH | ±10% | 1 A | 1.5A | Shielded | 600mOhm Max | - | 2.9MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
CTSR0908F-102L1000UH SMD SHLDED POWR INDUCTOR |
10 |
|
规格书 |
CTSR0908F | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | - | - | 1 mH | ±15% | 300 mA | - | Shielded | 2.5Ohm Max | 85 @ 252kHz | 1.8MHz | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | 8-SMD | 0.413" L x 0.374" W (10.50mm x 9.50mm) | 0.307" (7.80mm) |
|
CTRL6050F-101M100UH SMD UNSHLD POWER INDUCTOR |
10 |
|
规格书 |
CTRL6050F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±20% | 1.4 A | 1.8A | Unshielded | 350mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.551" L x 0.461" W (14.00mm x 11.70mm) | 0.331" (8.40mm) |
|
|
CTRL6050F-331M330UH SMD UNSHLD POWER INDUCTOR |
10 |
|
规格书 |
CTRL6050F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 330 µH | ±20% | 800 mA | 1A | Unshielded | 1.15Ohm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.551" L x 0.461" W (14.00mm x 11.70mm) | 0.331" (8.40mm) |
|
|
CTRL6050F-330M33UH SMD UNSHLD POWER INDUCTOR |
10 |
|
规格书 |
CTRL6050F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 33 µH | ±20% | 2.3 A | 3.3A | Unshielded | 120mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.551" L x 0.461" W (14.00mm x 11.70mm) | 0.331" (8.40mm) |
|
|
CTRL6050F-100M10UH SMD UNSHLD POWER INDUCTOR |
5 |
|
规格书 |
CTRL6050F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 3.5 A | 6A | Unshielded | 60mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.551" L x 0.461" W (14.00mm x 11.70mm) | 0.331" (8.40mm) |
|
|
CTSR0908F-682L6800UH SMD SHLDED POWER INDUCTOR |
1 |
|
规格书 |
CTSR0908F | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | - | - | 6.8 mH | ±15% | 100 mA | - | Shielded | 16.5Ohm Max | 90 @ 252kHz | 600kHz | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | 8-SMD | 0.413" L x 0.374" W (10.50mm x 9.50mm) | 0.307" (7.80mm) |
|

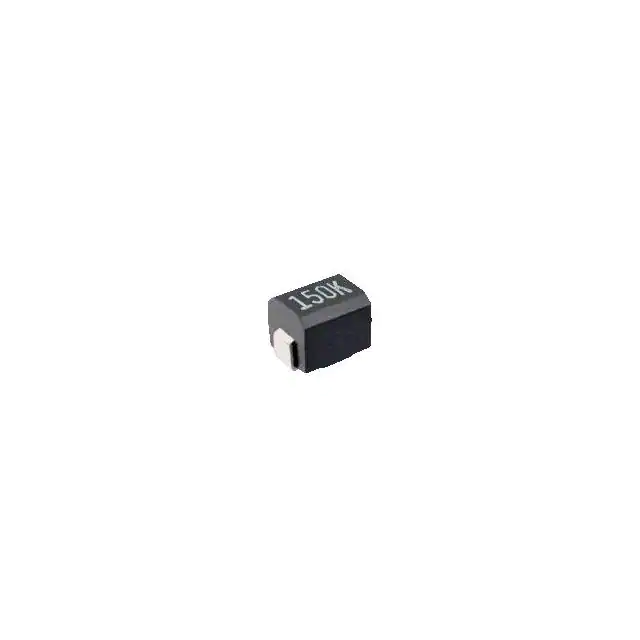

CTHC1812F-150K15UH FERRITE CORE WW INDUCTOR |
15 |
|
规格书 |
CTHC1812F | 1812 (4532 Metric) | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | - | 450mA | Unshielded | 700mOhm Max | 10 @ 2.52MHz | 20MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
CTHC1812F-101K100UH FERRITE CORE WW INDUCTOR |
15 |
|
规格书 |
CTHC1812F | 1812 (4532 Metric) | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | - | 180mA | Unshielded | 4Ohm Max | 20 @ 796kHz | 8MHz | - | -40°C ~ 125°C | 796 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
CTHC1812F-471K470UH FERRITE CORE WW INDUCTOR |
10 |
|
规格书 |
CTHC1812F | 1812 (4532 Metric) | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | - | 75mA | Unshielded | 16Ohm Max | 20 @ 796kHz | 3MHz | - | -40°C ~ 125°C | 796 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
CTHC1812F-3R3K3.3UH FERRITE CORE WW INDUCTOR |
5 |
|
规格书 |
CTHC1812F | 1812 (4532 Metric) | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 µH | ±10% | - | 750mA | Unshielded | 220mOhm Max | 10 @ 7.96MHz | 45MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|

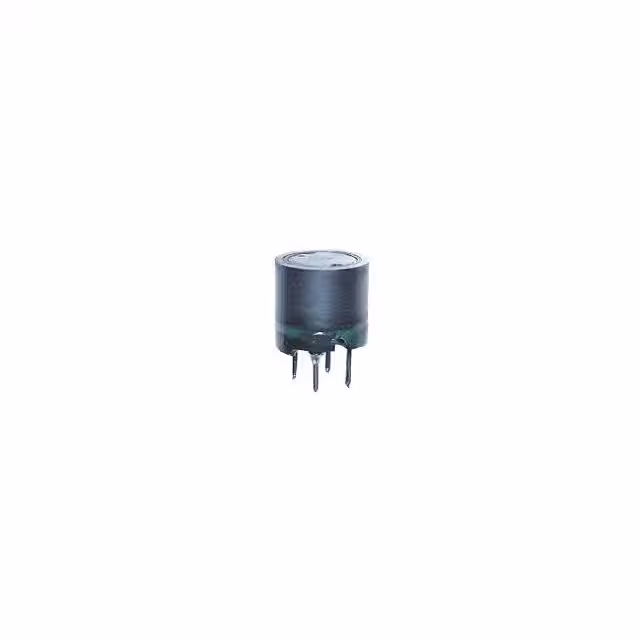

CTSCH110DF-101L100UH RADIAL FIXED INDUCTOR |
6 |
|
规格书 |
CTSCH110DF | Radial, Vertical Cylinder, 4 Leads | Bulk | Active | - | - | 100 µH | ±15% | - | 1.08A | Shielded | 190mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | Radial | 0.394" Dia (10.00mm) | 0.413" (10.50mm) |
|
|
CTSCH110DF-120M12UH RADIAL FIXED INDUCTOR |
2 |
|
规格书 |
CTSCH110DF | Radial, Vertical Cylinder, 4 Leads | Bulk | Active | - | - | 12 µH | ±20% | - | 3.24A | Shielded | 24mOhm Max | - | - | - | - | 2.52 MHz | - | Through Hole | Radial | 0.394" Dia (10.00mm) | 0.413" (10.50mm) |
