固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L0806B8R2JSWSTFIXED IND 8.2UH 225MA 1.1OHM SMD |
0 |
|
规格书 |
L-SWS | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 8.2 µH | ±5% | 225 mA | - | Unshielded | 1.1Ohm | - | 30MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
|
L0806B220JSWSTFIXED IND 22UH 140MA 2.8 OHM SMD |
0 |
|
规格书 |
L-SWS | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±5% | 140 mA | - | Unshielded | 2.8Ohm | - | 17MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
|
L0806B330JSWSTFIXED IND 33UH 125MA 3.6 OHM SMD |
0 |
|
规格书 |
L-SWS | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±5% | 125 mA | - | Unshielded | 3.6Ohm | - | 15MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
|
L0806BR18JSWSTFIXED IND 180NH 560MA 150MOHM SM |
0 |
|
规格书 |
L-SWS | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 180 nH | ±5% | 560 mA | - | Unshielded | 150mOhm | - | 500MHz | - | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
|
L0806BR22JSWSTFIXED IND 220NH 520MA 200MOHM SM |
0 |
|
规格书 |
L-SWS | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 220 nH | ±5% | 520 mA | - | Unshielded | 200mOhm | - | 450MHz | - | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
|
L0806BR39JSWSTFIXED IND 390NH 440MA 260MOHM SM |
0 |
|
规格书 |
L-SWS | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 390 nH | ±5% | 440 mA | - | Unshielded | 260mOhm | - | 375MHz | - | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
|
L0806BR47JSWSTFIXED IND 470NH 430MA 260MOHM SM |
0 |
|
规格书 |
L-SWS | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 470 nH | ±5% | 430 mA | - | Unshielded | 260mOhm | - | 350MHz | - | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
|
L0806BR56JSWSTFIXED IND 560NH 410MA 290MOHM SM |
0 |
|
规格书 |
L-SWS | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 560 nH | ±5% | 410 mA | - | Unshielded | 290mOhm | - | 300MHz | - | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|

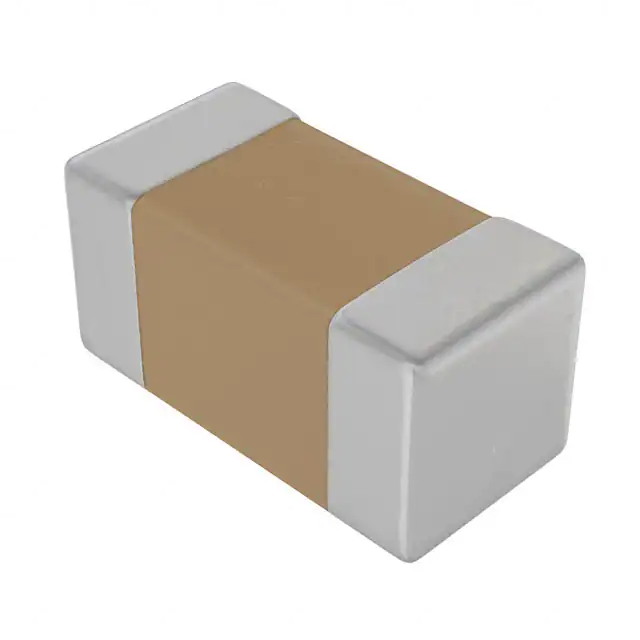

L0603B220MDWFTFIXED IND 22UH 230MA 1 OHM SMD |
0 |
|
规格书 |
L-DWF | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 230 mA | - | Unshielded | 1Ohm | - | 16MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
L0805C2R2MDWITFIXED IND 2.2UH 640MA 330MOHM SM |
0 |
|
规格书 |
L-DWI | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 640 mA | - | Unshielded | 330mOhm | - | 70MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
CAL45KB101KFIXED INDUCTOR TH |
0 |
|
- |
- | - | Tape & Box (TB) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CAL45TB101K-1KFIXED IND 100UH 590MA 1.2 OHM TH |
0 |
|
- |
CA, L Type | Axial | Tape & Box (TB) | Obsolete | Wirewound | - | 100 µH | ±10% | 590 mA | 590mA | Unshielded | 1.2Ohm Max | - | - | - | -25°C ~ 105°C | 796 kHz | - | Through Hole | - | 0.173" Dia x 0.315" L (4.40mm x 8.00mm) | - |
|
|
CAL45TB103K-1KFIXED IND 10MH 45MA 155 OHM TH |
0 |
|
- |
CA, L Type | Axial | Tape & Box (TB) | Obsolete | Wirewound | - | 10 mH | ±10% | 45 mA | 65mA | Unshielded | 155Ohm Max | - | - | - | -25°C ~ 105°C | 79.6 kHz | - | Through Hole | - | 0.173" Dia x 0.315" L (4.40mm x 8.00mm) | - |
|
|
CAL45TB123KFIXED INDUCTOR TH |
0 |
|
- |
- | - | Tape & Box (TB) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CAL45TB150K-1KFIXED IND 15UH 1.4A 190 MOHM TH |
0 |
|
- |
CA, L Type | Axial | Tape & Box (TB) | Obsolete | Wirewound | - | 15 µH | ±10% | 1.4 A | 1.4A | Unshielded | 190mOhm Max | - | - | - | -25°C ~ 105°C | 2.52 MHz | - | Through Hole | - | 0.173" Dia x 0.315" L (4.40mm x 8.00mm) | - |
|
|
CAL45TB560K-1KFIXED IND 56UH 710MA 750MOHM TH |
0 |
|
- |
CA, L Type | Axial | Tape & Box (TB) | Obsolete | Wirewound | - | 56 µH | ±10% | 710 mA | 790mA | Unshielded | 750mOhm Max | - | - | - | -25°C ~ 105°C | 2.52 MHz | - | Through Hole | - | 0.173" Dia x 0.315" L (4.40mm x 8.00mm) | - |
|
|
CAL45TB680K-1KFIXED IND 68UH 700MA 780MOHM TH |
0 |
|
- |
CA, L Type | Axial | Tape & Box (TB) | Obsolete | Wirewound | - | 68 µH | ±10% | 700 mA | 700mA | Unshielded | 780mOhm Max | - | - | - | -25°C ~ 105°C | 2.52 MHz | - | Through Hole | - | 0.173" Dia x 0.315" L (4.40mm x 8.00mm) | - |
|
|
CAL45TB682K-1KFIXED IND 6.8MH 60MA 100 OHM TH |
0 |
|
- |
CA, L Type | Axial | Tape & Box (TB) | Obsolete | Wirewound | - | 6.8 mH | ±10% | 60 mA | 80mA | Unshielded | 100Ohm Max | - | - | - | -25°C ~ 105°C | 252 kHz | - | Through Hole | - | 0.173" Dia x 0.315" L (4.40mm x 8.00mm) | - |
|
|
CAL45TB820K-1KFIXED IND 82UH 620MA 920MOHM TH |
0 |
|
- |
CA, L Type | Axial | Tape & Box (TB) | Obsolete | Wirewound | - | 82 µH | ±10% | 620 mA | 620mA | Unshielded | 920mOhm Max | - | - | - | -25°C ~ 105°C | 2.52 MHz | - | Through Hole | - | 0.173" Dia x 0.315" L (4.40mm x 8.00mm) | - |
|
|
CAL45VB123KFIXED INDUCTOR TH |
0 |
|
- |
- | - | Tape & Box (TB) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
