固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VCHA105D-6R8MS6IND SMD 6.8UH AUTO GRADE CHOKE Delta Electronics/Cyntec |
0 |
|
规格书 |
VCHA105D | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal | 6.8 µH | ±20% | 10.8 A | 11.4A | Unshielded | 14mOhm Max | - | - | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.427" L x 0.394" W (10.85mm x 10.00mm) | 0.213" (5.40mm) |
|
SDEM20161T-1R5MSFIXED IND 1.5UH 2.16A 0.12OHM SM Delta Electronics/Cyntec |
100 |
|
规格书 |
SDEM20161T | 0806 (2016 Metric) | Tape & Reel (TR) | Active | - | Metal | 1.5 µH | ±20% | 2.16 A | 2.43A | Shielded | 120mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 2016 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
SDEM20161T-R47MSFIXED IND 470NH 3A 0.041OHM SMD Delta Electronics/Cyntec |
0 |
|
规格书 |
SDEM20161T | 0806 (2016 Metric) | Tape & Reel (TR) | Active | - | Metal | 470 nH | ±20% | 3 A | 3.9A | Shielded | 41mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 2016 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
SDEI054T-1R0MSFIXED IND 1UH 6.85A 11 MOHM SMD Delta Electronics/Cyntec |
0 |
|
规格书 |
SDEI054T | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±20% | 6.85 A | 9.4A | Shielded | 11mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.157" (4.00mm) |
|
|
SDEI054T-6R8MSFIXED IND 6.8UH 3.15A 50MOHM SMD Delta Electronics/Cyntec |
0 |
|
规格书 |
SDEI054T | Nonstandard | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±20% | 3.15 A | 4.1A | Shielded | 50mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.157" (4.00mm) |
|
CMLE063T-3R3MSFIXED IND 3.3UH 8A 21 MOHM SMD Delta Electronics/Cyntec |
0 |
|
规格书 |
CMLE063T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 3.3 µH | ±20% | 8 A | 10A | Shielded | 21mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.274" L x 0.260" W (6.95mm x 6.60mm) | 0.118" (3.00mm) |
|
|
CMLS104T-R68MSFIXED IND 680NH 22A 2.1MOHM SMD Delta Electronics/Cyntec |
7 |
|
规格书 |
CMLS104T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 680 nH | ±20% | 22 A | 37A | Shielded | 2.1mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.439" L x 0.394" W (11.15mm x 10.00mm) | 0.157" (4.00mm) |
|

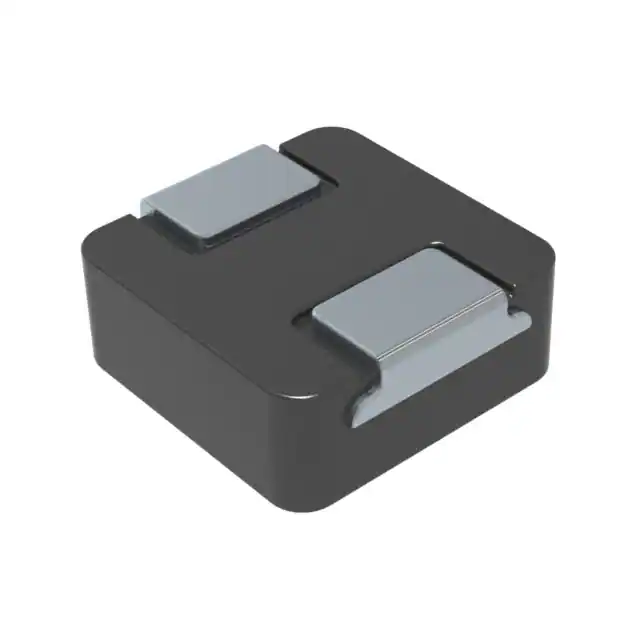

VCMI105T-680MS5FIXED IND 68UH 3.2A 211MOHM SMD Delta Electronics/Cyntec |
0 |
|
规格书 |
VCMI105T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 68 µH | ±3% | 3.2 A | 3.9A | Unshielded | 211mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.427" L x 0.394" W (10.85mm x 10.00mm) | 0.197" (5.00mm) |
|
CMLE105T-1R5MSFIXED IND 1.5UH 24A 3 MOHM SMD Delta Electronics/Cyntec |
0 |
|
规格书 |
CMLE105T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 1.5 µH | ±20% | 24 A | 30A | Shielded | 3mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.439" L x 0.394" W (11.15mm x 10.00mm) | 0.197" (5.00mm) |
|
CMLB136T-220MSFIXED IND 22UH 7A 39 OHM SMD Delta Electronics/Cyntec |
13 |
|
规格书 |
CMLB136T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 22 µH | ±20% | 7 A | 6.9A | Shielded | 39Ohm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.236" (6.00mm) |
