上传BOM
固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VCHA105D-100MS6FIXED IND 10UH 8.7A 24.2MOHM SMD Delta Electronics/Cyntec |
1,208 |
|
规格书 |
VCHA105D | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 10 µH | ±20% | 8.7 A | 10.9A | Unshielded | 24.2mOhm Max | - | - | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.427" L x 0.394" W (10.85mm x 10.00mm) | 0.213" (5.40mm) |
|
CMLB136T-101MSFIXED IND 100UH 3A 198 OHM SMD Delta Electronics/Cyntec |
489 |
|
规格书 |
CMLB136T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 100 µH | ±20% | 3 A | 3.5A | Shielded | 198mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.236" (6.00mm) |
|
CMLS136E-3R3MSFIXED IND 3.3UH 22A 4.4MOHM SMD Delta Electronics/Cyntec |
489 |
|
规格书 |
CMLS136E | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 3.3 µH | ±20% | 22 A | 40A | Shielded | 4.4mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.256" (6.50mm) |
|
SDET32251E-3R3MSFIXED IND 3.3UH 2.1A 102MOHM SMD Delta Electronics/Cyntec |
3,466 |
|
规格书 |
SDET32251E | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Metal | 3.3 µH | ±20% | 2.1 A | 1.2A | Unshielded | 102mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.059" (1.50mm) |
|

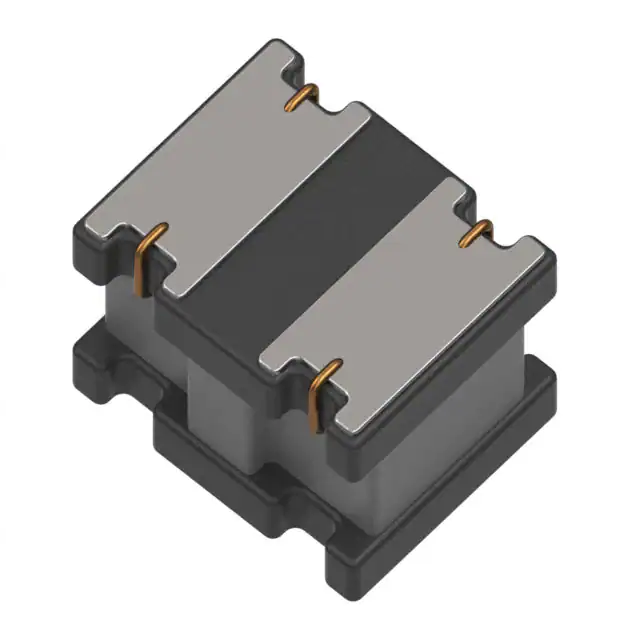

SDEB12101T-2R2MSDFIXED IND 2.2UH 710MA 338MOHM SM Delta Electronics/Cyntec |
9,205 |
|
规格书 |
SDEB12101T | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±20% | 710 mA | 610mA | Shielded | 338mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.049" L x 0.039" W (1.25mm x 1.00mm) | 0.039" (1.00mm) |
|
SDET25201T-6R8MSFIXED IND 6.8UH 810MA 485MOHM SM Delta Electronics/Cyntec |
8,423 |
|
规格书 |
SDET25201T | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±20% | 810 mA | 770mA | Shielded | 485mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
SDEM25201B-3R3MSFIXED IND 3.3UH 1.45A 0.188OHM Delta Electronics/Cyntec |
3,624 |
|
规格书 |
SDEM25201B | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Metal | 3.3 µH | ±20% | 1.45 A | 2A | Shielded | 188mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 2520 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
SDEM25201B-1R0MSFIXED IND 1UH 3.35A 0.0525OHM SM Delta Electronics/Cyntec |
2,123 |
|
规格书 |
SDEM25201B | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Metal | 1 µH | ±20% | 3.35 A | 3.8A | Shielded | 52.5mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 2520 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
HMLB25201B-1R0MSRFIXED IND 1UH 3.1A 48 MOHM SMD Delta Electronics/Cyntec |
4,414 |
|
规格书 |
HMLB25201B | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Metal | 1 µH | ±20% | 3.1 A | 3.5A | Shielded | 48mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
SDES064T-4R7MSFIXED IND 4.7UH 4.75A 26MOHM SMD Delta Electronics/Cyntec |
2,713 |
|
规格书 |
SDES064T | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 4.75 A | 4.5A | Shielded | 26mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.157" (4.00mm) |
