固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0603LS-153XJRCRF INDUCTOR, FERRITE CORE, 5% TO Coilcraft |
7,372 |
|
规格书 |
0603LS | 0603 (1608 Metric) | Strip | Active | - | Ceramic, Ferrite | 15 µH | ±5% | 170 mA | - | Unshielded | 7.1Ohm Max | 20 @ 2.5MHz | 23MHz | AEC-Q200 | -40°C ~ 100°C | 2.5 MHz | - | Surface Mount | 0603 | 0.071" L x 0.050" W (1.80mm x 1.27mm) | 0.044" (1.11mm) |
|
0805LS-472XJRCRF INDUCTOR, FERRITE CORE, 5% TO Coilcraft |
7,067 |
|
规格书 |
0805LS | 0805 (2012 Metric) | Strip | Active | Wirewound | Ceramic, Ferrite | 4.7 µH | ±5% | 280 mA | - | Unshielded | 1.87Ohm Max | 20 @ 7.9MHz | 50MHz | AEC-Q200 | -40°C ~ 100°C | 7.9 MHz | - | Surface Mount | 0805 | 0.090" L x 0.075" W (2.29mm x 1.91mm) | 0.063" (1.60mm) |
|

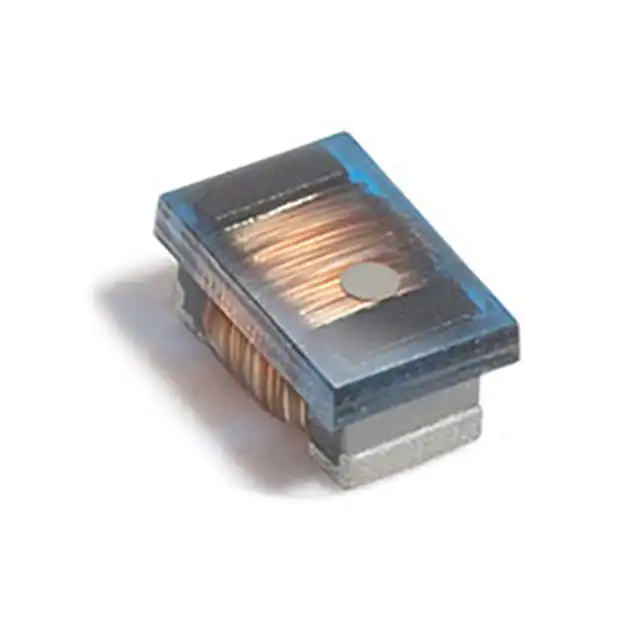

0603AF-241XJRWFIXED IND 240NH 850MA 120MOHM SM Coilcraft |
7,026 |
|
规格书 |
0603AF | 0603 (1608 Metric) | Strip | Active | Wirewound | Ferrite | 240 nH | ±5% | 850 mA | - | Unshielded | 120mOhm Max | 15 @ 7.9MHz | 900MHz | - | -40°C ~ 85°C | 7.9 MHz | - | Surface Mount | 0603 | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.036" (0.91mm) |
|
|
0603AF-103XJRWFIXED IND 10UH 180MA 4.5 OHM SMD Coilcraft |
7,024 |
|
规格书 |
0603AF | 0603 (1608 Metric) | Strip | Active | Wirewound | Ferrite | 10 µH | ±5% | 180 mA | - | Unshielded | 4.5Ohm Max | 12 @ 2.5MHz | 40MHz | - | -40°C ~ 85°C | 2.5 MHz | - | Surface Mount | 0603 | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.036" (0.91mm) |
|
|
0603LS-152XJRCRF INDUCTOR, FERRITE CORE, 5% TO Coilcraft |
6,933 |
|
规格书 |
0603LS | 0603 (1608 Metric) | Strip | Active | - | Ceramic, Ferrite | 1.5 µH | ±5% | 350 mA | - | Unshielded | 960mOhm Max | 15 @ 7.9MHz | 100MHz | AEC-Q200 | -40°C ~ 100°C | 7.9 MHz | - | Surface Mount | 0603 | 0.071" L x 0.050" W (1.80mm x 1.27mm) | 0.044" (1.11mm) |
|
|
0603AF-33NXJRWFIXED IND 33NH 1.9A 28 MOHM SMD Coilcraft |
6,922 |
|
规格书 |
0603AF | 0603 (1608 Metric) | Strip | Active | Wirewound | Ferrite | 33 nH | ±5% | 1.9 A | - | Unshielded | 28mOhm Max | 13 @ 7.9MHz | 2.3GHz | - | -40°C ~ 85°C | 7.9 MHz | - | Surface Mount | 0603 | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.036" (0.91mm) |
|
|
0603LS-562XJRCRF INDUCTOR, FERRITE CORE, 5% TO Coilcraft |
6,742 |
|
规格书 |
0603LS | 0603 (1608 Metric) | Strip | Active | - | Ceramic, Ferrite | 5.6 µH | ±5% | 240 mA | - | Unshielded | 2.6Ohm Max | 15 @ 7.9MHz | 32MHz | AEC-Q200 | -40°C ~ 100°C | 7.9 MHz | - | Surface Mount | 0603 | 0.071" L x 0.050" W (1.80mm x 1.27mm) | 0.044" (1.11mm) |
|
|
0603LS-182XJRCRF INDUCTOR, FERRITE CORE, 5% TO Coilcraft |
6,734 |
|
规格书 |
0603LS | 0603 (1608 Metric) | Strip | Active | - | Ceramic, Ferrite | 1.8 µH | ±5% | 350 mA | - | Unshielded | 1.1Ohm Max | 15 @ 7.9MHz | 80MHz | AEC-Q200 | -40°C ~ 100°C | 7.9 MHz | - | Surface Mount | 0603 | 0.071" L x 0.050" W (1.80mm x 1.27mm) | 0.044" (1.11mm) |
|
|
0603LS-122XJRCRF INDUCTOR, FERRITE CORE, 5% TO Coilcraft |
6,696 |
|
规格书 |
0603LS | 0603 (1608 Metric) | Strip | Active | - | Ceramic, Ferrite | 1.2 µH | ±5% | 370 mA | - | Unshielded | 870mOhm Max | 15 @ 7.9MHz | 160MHz | AEC-Q200 | -40°C ~ 100°C | 7.9 MHz | - | Surface Mount | 0603 | 0.071" L x 0.050" W (1.80mm x 1.27mm) | 0.044" (1.11mm) |
|
|
0603LS-781XJRCRF INDUCTOR, FERRITE CORE, 5% TO Coilcraft |
6,383 |
|
规格书 |
0603LS | 0603 (1608 Metric) | Strip | Active | - | Ceramic, Ferrite | 780 nH | ±5% | 390 mA | - | Unshielded | 830mOhm Max | 15 @ 7.9MHz | 460MHz | AEC-Q200 | -40°C ~ 100°C | 7.9 MHz | - | Surface Mount | 0603 | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.044" (1.11mm) |
