固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

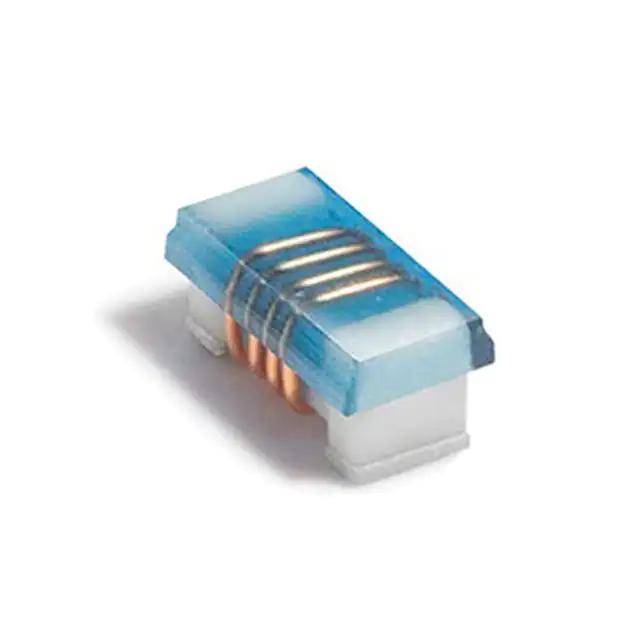

0603DC-3N9XJRWFIXED IND 3.9NH 2.8A 40MOHM SMD Coilcraft |
4,795 |
|
规格书 |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 3.9 nH | ±5% | 2.8 A | - | Unshielded | 40mOhm Max | 105 @ 900MHz | 11.25GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
|
|
0603DC-51NXJRWFIXED IND 51NH 1.17A 216MOHM SMD Coilcraft |
4,771 |
|
规格书 |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 51 nH | ±5% | 1.17 A | - | Unshielded | 216mOhm Max | 77 @ 900MHz | 1.95GHz | AEC-Q200 | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
|
|
0603DC-68NXJRWFIXED IND 68NH 890MA 372MOHM SMD Coilcraft |
4,746 |
|
规格书 |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 68 nH | ±5% | 890 mA | - | Unshielded | 372mOhm Max | 63 @ 900MHz | 1.65GHz | AEC-Q200 | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
|
|
0603DC-62NXJRWFIXED IND 62NH 970MA 312MOHM SMD Coilcraft |
4,711 |
|
规格书 |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 62 nH | ±5% | 970 mA | - | Unshielded | 312mOhm Max | 73 @ 900MHz | 2GHz | AEC-Q200 | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
|
|
0603DC-R33XJRWFIXED IND 330NH 300MA 2.93OHM SM Coilcraft |
4,607 |
|
规格书 |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 330 nH | ±5% | 300 mA | - | Unshielded | 2.93Ohm Max | - | 700MHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
|
|
0603DC-R27XJRWFIXED IND 270NH 360MA 2.06OHM SM Coilcraft |
4,577 |
|
规格书 |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 270 nH | ±5% | 360 mA | - | Unshielded | 2.06Ohm Max | - | 850MHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
|
|
0603DC-36NXJRWFIXED IND 36NH 1.49A 134MOHM SMD Coilcraft |
4,558 |
|
规格书 |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 36 nH | ±5% | 1.49 A | - | Unshielded | 134mOhm Max | 79 @ 900MHz | 2.35GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
|
|
0603DC-R11XJRWFIXED IND 110NH 620MA 725MOHM SM Coilcraft |
4,556 |
|
规格书 |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 110 nH | ±5% | 620 mA | - | Unshielded | 725mOhm Max | 55 @ 900MHz | 1.25GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
|
|
0603DC-2N7XJRWFIXED IND 2.7NH 3.34A 29MOHM SMD Coilcraft |
4,540 |
|
规格书 |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 2.7 nH | ±5% | 3.34 A | - | Unshielded | 29mOhm Max | 80 @ 900MHz | 11.4GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
|
|
0603DC-47NXJRWFIXED IND 47NH 1.2A 200MOHM SMD Coilcraft |
4,510 |
|
规格书 |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 47 nH | ±5% | 1.2 A | - | Unshielded | 200mOhm Max | 73 @ 900MHz | 2GHz | AEC-Q200 | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
