固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LPS4018-183MRCFIXED IND 18UH 1A 270 MOHM SMD Coilcraft |
54,346 |
|
规格书 |
LPS4018 | Nonstandard | Strip | Active | Drum Core | Ferrite | 18 µH | ±20% | 700 mA | 780mA | Shielded | 270mOhm Max | - | 27MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.154" L x 0.154" W (3.90mm x 3.90mm) | 0.071" (1.80mm) |
|
|
LPS4018-472MRCFIXED IND 4.7UH 1.8A 125MOHM SMD Coilcraft |
49,804 |
|
规格书 |
LPS4018 | Nonstandard | Strip | Active | Drum Core | Ferrite | 4.7 µH | ±20% | 1.3 A | 1.8A | Shielded | 125mOhm Max | - | 65MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.154" L x 0.154" W (3.90mm x 3.90mm) | 0.071" (1.80mm) |
|
LPS4012-155MRCFIXED IND 1.5MH 115MA 30OHM SM Coilcraft |
46,642 |
|
规格书 |
LPS4012 | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | 1.5 mH | ±20% | 115 mA | 90mA | Shielded | 30Ohm Max | - | 2.5MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.154" L x 0.154" W (3.90mm x 3.90mm) | 0.047" (1.20mm) |
|
|
LPS4018-333MRCFIXED IND 33UH 800MA 420MOHM SMD Coilcraft |
45,500 |
|
规格书 |
LPS4018 | Nonstandard | Strip | Active | Drum Core | Ferrite | 33 µH | ±20% | 550 mA | 580mA | Shielded | 420mOhm Max | - | 20MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.154" L x 0.154" W (3.90mm x 3.90mm) | 0.071" (1.80mm) |
|
LPS3015-683MRCFIXED IND 68UH 330MA 2.35OHM SMD Coilcraft |
44,983 |
|
规格书 |
LPS3015 | Nonstandard | Strip | Active | - | Ferrite | 68 µH | ±20% | 330 mA | 310mA | Shielded | 2.35Ohm Max | - | 14MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.116" L x 0.116" W (2.95mm x 2.95mm) | 0.059" (1.50mm) |
|
1008LS-472XJRC1008LS-472XJRC Coilcraft |
37,158 |
|
规格书 |
1008LS | 1008 (2520 Metric) | Strip | Active | Wirewound | Ceramic, Ferrite | 4.7 µH | ±5% | 400 mA | - | Unshielded | 1.68Ohm Max | 32 @ 7.9MHz | 90MHz | AEC-Q200 | -40°C ~ 100°C | 7.9 MHz | - | Surface Mount | 1008 | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.080" (2.03mm) |
|
|

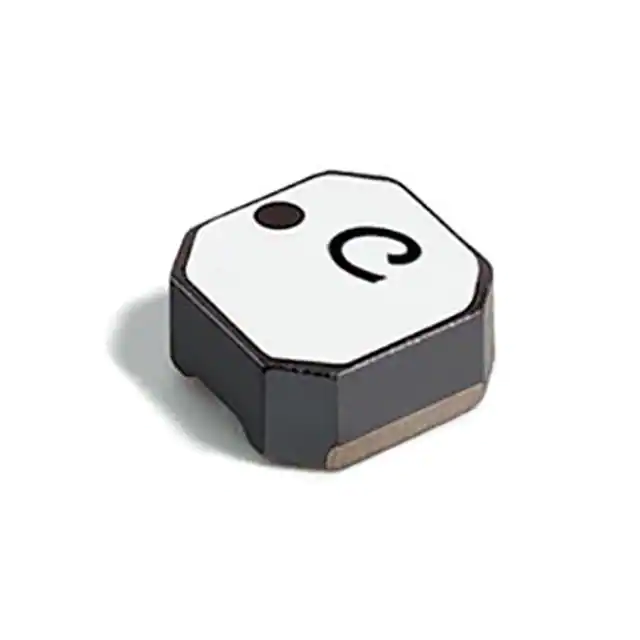

LPS4018-102NRCFIXED IND 1UH 2.5A 42 MOHM SMD Coilcraft |
35,371 |
|
规格书 |
LPS4018 | Nonstandard | Strip | Active | Drum Core | Ferrite | 1 µH | ±30% | 1.8 A | 3.8A | Shielded | 42mOhm Max | - | 180MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.154" L x 0.154" W (3.90mm x 3.90mm) | 0.071" (1.80mm) |
|
|
1008LS-123XJRC1008LS-123XJRC Coilcraft |
31,603 |
|
规格书 |
1008LS | 1008 (2520 Metric) | Strip | Active | Wirewound | Ceramic, Ferrite | 12 µH | ±5% | 290 mA | - | Unshielded | 3.3Ohm Max | 28 @ 2.5MHz | 38MHz | AEC-Q200 | -40°C ~ 100°C | 7.9 MHz | - | Surface Mount | 1008 | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.080" (2.03mm) |
|
|
LPS3015-472MRCFIXED IND 4.7UH 1.2A 200MOHM SMD Coilcraft |
29,136 |
|
规格书 |
LPS3015 | Nonstandard | Strip | Active | - | Ferrite | 4.7 µH | ±20% | 1.2 A | 1.2A | Shielded | 200mOhm Max | - | 79MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.116" L x 0.116" W (2.95mm x 2.95mm) | 0.059" (1.50mm) |
|
|
LPS4012-152MRCFIXED IND 1.5UH 2.2A 70MOHM SM Coilcraft |
27,474 |
|
规格书 |
LPS4012 | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | 1.5 µH | ±20% | 2.2 A | 2.8A | Shielded | 70mOhm Max | - | 140MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.154" L x 0.154" W (3.90mm x 3.90mm) | 0.047" (1.20mm) |
