固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RFC0807BV-824KEFIXED INDUCTOR 820UH SMD Coilcraft |
99 |
|
规格书 |
RFC0807BV | Radial, Vertical Cylinder | Strip | Active | Wirewound | Ferrite | 820 µH | ±10% | 300 mA | 820mA | Unshielded | 2.83Ohm Max | - | 2.1MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.346" Dia (8.80mm) | 0.295" (7.50mm) |
|
|
RFC0807BV-394KEFIXED INDUCTOR 390UH SMD Coilcraft |
99 |
|
规格书 |
RFC0807BV | Radial, Vertical Cylinder | Strip | Active | Wirewound | Ferrite | 390 µH | ±10% | 450 mA | 1.23A | Unshielded | 1.54Ohm Max | - | 3.3MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.346" Dia (8.80mm) | 0.295" (7.50mm) |
|
|
RFC0807BV-564KEFIXED INDUCTOR 560UH SMD Coilcraft |
99 |
|
规格书 |
RFC0807BV | Radial, Vertical Cylinder | Strip | Active | Wirewound | Ferrite | 560 µH | ±10% | 380 mA | 1.01A | Unshielded | 1.85Ohm Max | - | 2.7MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.346" Dia (8.80mm) | 0.295" (7.50mm) |
|
|
RFC0807BV-823KEFIXED INDUCTOR 82UH SMD Coilcraft |
99 |
|
规格书 |
RFC0807BV | Radial, Vertical Cylinder | Strip | Active | Wirewound | Ferrite | 82 µH | ±10% | 850 mA | 2.53A | Unshielded | 376mOhm Max | - | 8MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.346" Dia (8.80mm) | 0.295" (7.50mm) |
|
|
RFC0807BV-274KEFIXED INDUCTOR 270UH SMD Coilcraft |
99 |
|
规格书 |
RFC0807BV | Radial, Vertical Cylinder | Strip | Active | Wirewound | Ferrite | 270 µH | ±10% | 500 mA | 1.43A | Unshielded | 960mOhm Max | - | 3.6MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.346" Dia (8.80mm) | 0.295" (7.50mm) |
|
|
RFC0807BV-683KEFIXED INDUCTOR 68UH SMD Coilcraft |
98 |
|
规格书 |
RFC0807BV | Radial, Vertical Cylinder | Strip | Active | Wirewound | Ferrite | 68 µH | ±10% | 870 mA | 2.74A | Unshielded | 338mOhm Max | - | 8.4MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.346" Dia (8.80mm) | 0.295" (7.50mm) |
|
|
RFC0807BV-473KEFIXED INDUCTOR 47UH SMD Coilcraft |
98 |
|
规格书 |
RFC0807BV | Radial, Vertical Cylinder | Strip | Active | Wirewound | Ferrite | 47 µH | ±10% | 950 mA | 3.04A | Unshielded | 267mOhm Max | - | 10.6MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.346" Dia (8.80mm) | 0.295" (7.50mm) |
|
|
RFC0807BV-563KEFIXED INDUCTOR 56UH SMD Coilcraft |
96 |
|
规格书 |
RFC0807BV | Radial, Vertical Cylinder | Strip | Active | Wirewound | Ferrite | 56 µH | ±10% | 900 mA | 2.84A | Unshielded | 303mOhm Max | - | 9.7MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.346" Dia (8.80mm) | 0.295" (7.50mm) |
|

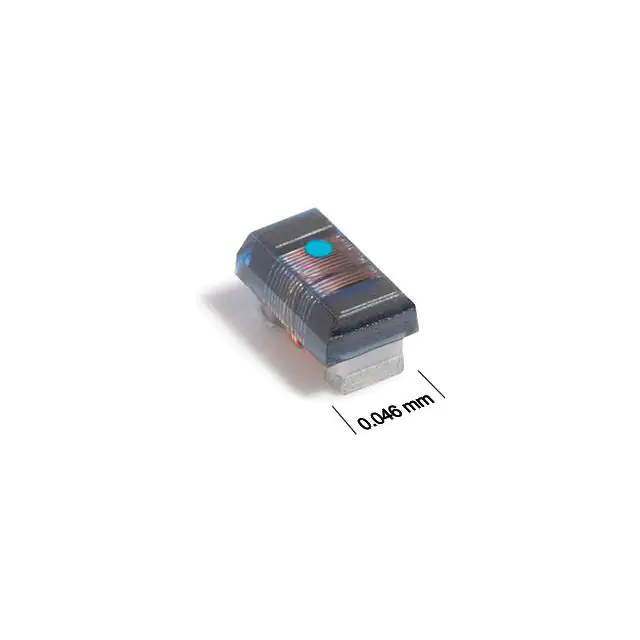

0603LS-121XGRCRF INDUCTOR, FERRITE CORE, 2% TO Coilcraft |
34 |
|
规格书 |
0603LS | 0603 (1608 Metric) | Strip | Active | - | Ceramic, Ferrite | 120 nH | ±2% | 1.4 A | - | Unshielded | 150mOhm Max | 12 @ 2.5MHz | 1.1GHz | AEC-Q200 | -40°C ~ 100°C | 7.9 MHz | - | Surface Mount | 0603 | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.044" (1.11mm) |
|
DO5040H-392MLDFIXED IND 3.9UH 11.2A 6MOHM SM Coilcraft |
98 |
|
规格书 |
DO5040H | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.9 µH | ±20% | 11.2 A | 26.8A | Unshielded | 6mOhm Max | - | 40MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.880" L x 0.640" W (22.35mm x 16.26mm) | 0.472" (12.00mm) |
