固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1812PS-473JRCFIXED IND 47UH 800MA 870MOHM SM Coilcraft |
202 |
|
规格书 |
1812PS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ceramic, Ferrite | 47 µH | ±5% | 800 mA | 350mA | Shielded | 870mOhm Max | 50 @ 1MHz | 28MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1812 | 0.231" L x 0.196" W (5.87mm x 4.98mm) | 0.150" (3.80mm) |
|
|
1812PS-334JRCFIXED IND 330UH 310MA 4.85OHM SM Coilcraft |
200 |
|
规格书 |
1812PS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ceramic, Ferrite | 330 µH | ±5% | 310 mA | 150mA | Shielded | 4.85Ohm Max | 60 @ 1MHz | 5.5MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1812 | 0.231" L x 0.196" W (5.87mm x 4.98mm) | 0.150" (3.80mm) |
|
|
1812PS-333JRCFIXED IND 33UH 1.1A 400MOHM SM Coilcraft |
192 |
|
规格书 |
1812PS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ceramic, Ferrite | 33 µH | ±5% | 1.1 A | 460mA | Shielded | 400mOhm Max | 40 @ 1MHz | 30MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1812 | 0.231" L x 0.196" W (5.87mm x 4.98mm) | 0.150" (3.80mm) |
|
|
1812PS-682JRCFIXED IND 6.8UH 1.9A 130MOHM SM Coilcraft |
176 |
|
规格书 |
1812PS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ceramic, Ferrite | 6.8 µH | ±5% | 1.9 A | 1A | Shielded | 130mOhm Max | 40 @ 1MHz | 140MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1812 | 0.231" L x 0.196" W (5.87mm x 4.98mm) | 0.150" (3.80mm) |
|
MSS6132-183MLCPOWER INDUCTOR, SHIELDED, 20% TO Coilcraft |
3,294 |
|
规格书 |
MSS6132 | Nonstandard | Strip | Active | Drum Core | Ferrite | 18 µH | ±20% | 1.55 A | 1.04A | Shielded | 118mOhm Max | - | 24MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.240" L x 0.240" W (6.10mm x 6.10mm) | 0.126" (3.20mm) |
|
|

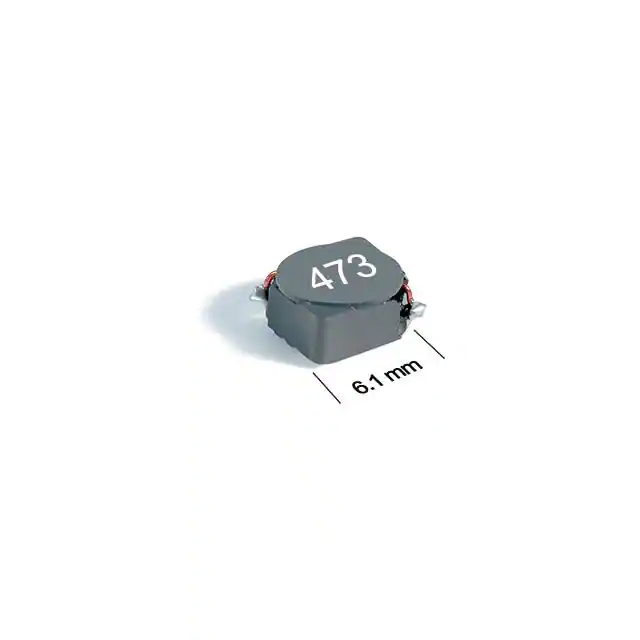

MSS6132-683MLCPOWER INDUCTOR, SHIELDED, 20% TO Coilcraft |
1,729 |
|
规格书 |
MSS6132 | Nonstandard | Strip | Active | Drum Core | Ferrite | 68 µH | ±20% | 730 mA | 550mA | Shielded | 410mOhm Max | - | 12MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.240" L x 0.240" W (6.10mm x 6.10mm) | 0.126" (3.20mm) |
|
|
MSS6132-562MLCPOWER INDUCTOR, SHIELDED, 20% TO Coilcraft |
1,685 |
|
规格书 |
MSS6132 | Nonstandard | Strip | Active | Drum Core | Ferrite | 5.6 µH | ±20% | 2.2 A | 2.1A | Shielded | 48mOhm Max | - | 60MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.240" L x 0.240" W (6.10mm x 6.10mm) | 0.126" (3.20mm) |
|
|
0402CS-68NXGRWFIXED IND 68NH 100MA 1.12OHM SM Coilcraft |
38,157 |
|
规格书 |
0402CS | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 68 nH | ±2% | 100 mA | - | Unshielded | 1.12Ohm Max | 36 @ 900MHz | 1.62GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.047" L x 0.025" W (1.19mm x 0.64mm) | 0.026" (0.66mm) |
|
|
0402CS-11NXGRWFIXED IND 11NH 640MA 120MOHM SM Coilcraft |
22,869 |
|
规格书 |
0402CS | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 11 nH | ±2% | 640 mA | - | Unshielded | 120mOhm Max | 52 @ 900MHz | 3.68GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.047" L x 0.025" W (1.19mm x 0.64mm) | 0.026" (0.66mm) |
|
|
0402CS-4N7XGRWFIXED IND 4.7NH 640MA 130MOHM SM Coilcraft |
20,205 |
|
规格书 |
0402CS | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 4.7 nH | ±2% | 640 mA | - | Unshielded | 130mOhm Max | 48 @ 900MHz | 4.77GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.047" L x 0.025" W (1.19mm x 0.64mm) | 0.026" (0.66mm) |
