固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0805CS-821XGRCFIXED IND 820NH 180MA 2.35OHM SM Coilcraft |
1,939 |
|
规格书 |
0805CS | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 820 nH | ±2% | 180 mA | - | Unshielded | 2.35Ohm Max | 23 @ 50MHz | 310MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|
|
0603CS-R21XGRWFIXED IND 210NH 200MA 2.06OHM SM Coilcraft |
832 |
|
规格书 |
0603CS | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 210 nH | ±2% | 200 mA | - | Unshielded | 2.06Ohm Max | 27 @ 100MHz | 895MHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
RFC0807BV-224KEFIXED INDUCTOR 220UH SMD Coilcraft |
102 |
|
规格书 |
RFC0807BV | Radial, Vertical Cylinder | Strip | Active | Wirewound | Ferrite | 220 µH | ±10% | 600 mA | 1.57A | Unshielded | 850mOhm Max | - | 4.1MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.346" Dia (8.80mm) | 0.295" (7.50mm) |
|
|
DO3316P-105MLDFIXED IND 1MH 300MA 3OHM SM Coilcraft |
9,102 |
|
规格书 |
DO3316 | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | 1 mH | ±20% | 300 mA | 300mA | Unshielded | 3Ohm Max | - | 2MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.205" (5.21mm) |
|
|
DO3316P-152MLDFIXED IND 1.5UH 6.4A 10MOHM SM Coilcraft |
2,560 |
|
规格书 |
DO3316 | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | 1.5 µH | ±20% | 6.4 A | 8A | Unshielded | 10mOhm Max | - | 90MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.205" (5.21mm) |
|
|
DO3316P-222MLDFIXED IND 2.2UH 6.1A 12MOHM SM Coilcraft |
2,184 |
|
规格书 |
DO3316 | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | 2.2 µH | ±20% | 6.1 A | 7A | Unshielded | 12mOhm Max | - | 80MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.205" (5.21mm) |
|
|
DO3316P-102MLDFIXED IND 1UH 6.8A 9MOHM SM Coilcraft |
1,854 |
|
规格书 |
DO3316 | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | 1 µH | ±20% | 6.8 A | 9A | Unshielded | 9mOhm Max | - | 100MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.205" (5.21mm) |
|
|
DO3316P-684MLDFIXED IND 680UH 400MA 2.02OHM SM Coilcraft |
997 |
|
规格书 |
DO3316 | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | 680 µH | ±20% | 400 mA | 400mA | Unshielded | 2.02Ohm Max | - | 2.5MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.205" (5.21mm) |
|
LPS5015-563MRCPOWER INDUCTOR, SHIELDED, 20% TO Coilcraft |
3,423 |
|
规格书 |
LPS5015 | Nonstandard | Strip | Active | Drum Core | Ferrite | 56 µH | ±20% | 400 mA | 400mA | Shielded | 1.13Ohm Max | - | 17MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.059" (1.50mm) |
|
|

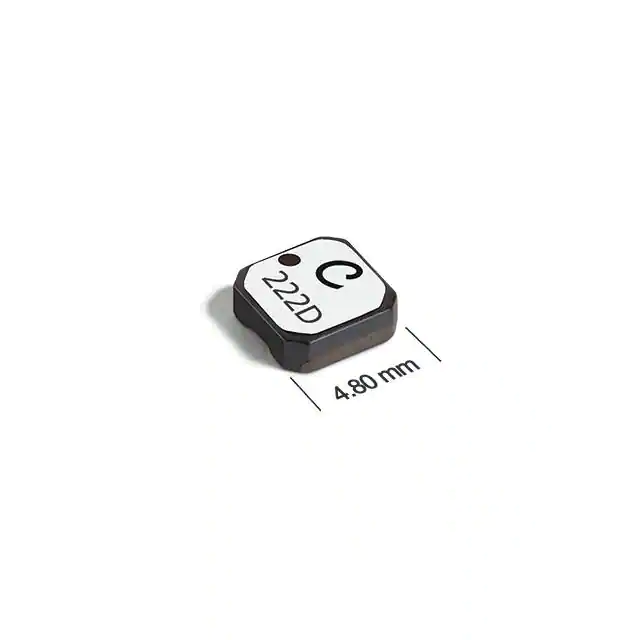

LPS5015-153MRCPOWER INDUCTOR, SHIELDED, 20% TO Coilcraft |
3,174 |
|
规格书 |
LPS5015 | Nonstandard | Strip | Active | Drum Core | Ferrite | 15 µH | ±20% | 730 mA | 800mA | Shielded | 360mOhm Max | - | 38MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.059" (1.50mm) |
