固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CPEX3231H-4R7MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
10 |
|
规格书 |
CPEX3231H | Vertical, 2 PC Pin | Tray | Active | Wirewound | Metal Composite | 4.7 µH | ±20% | 55 A | 195A | Shielded | 1.06mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Through Hole | - | 1.268" L x 1.240" W (32.20mm x 31.50mm) | 1.201" (30.50mm) |
|

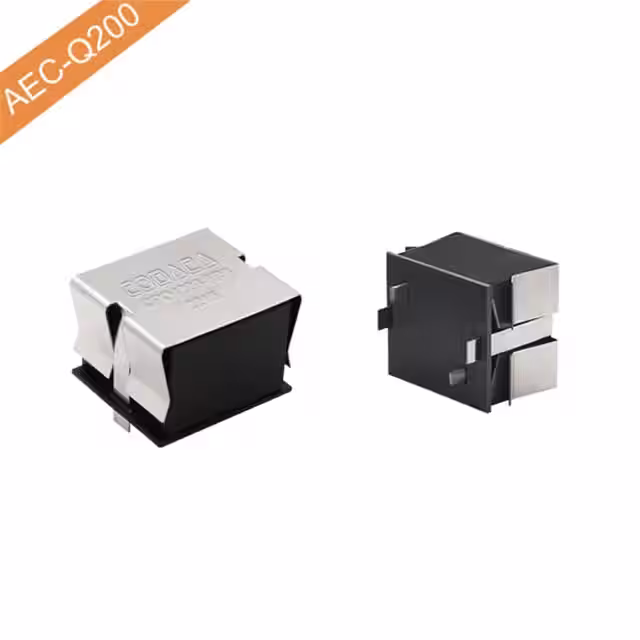

CPQ4228-330MTHT HIGH CURRENT POWER INDUCTOR CODACA |
71 |
|
规格书 |
CPQ4228 | Nonstandard | Tray | Active | Wirewound | Ferrite | 33 µH | ±20% | 34 A | 24.7A | Shielded | 2.95mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Flat Wire, High Current | Through Hole | Vertical, 4 PC Pin | 1.654" L x 1.409" W (42.00mm x 35.80mm) | 1.142" (29.00mm) |
|
|
CPQ4228-471MTHT HIGH CURRENT POWER INDUCTOR CODACA |
62 |
|
规格书 |
CPQ4228 | Nonstandard | Tray | Active | Wirewound | Ferrite | 470 µH | ±20% | 17.5 A | 3.6A | Shielded | 11.5mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Flat Wire, High Current | Through Hole | Vertical, 4 PC Pin | 1.654" L x 1.409" W (42.00mm x 35.80mm) | 1.142" (29.00mm) |
|
|
CPQ4228-470MTHT HIGH CURRENT POWER INDUCTOR CODACA |
83 |
|
规格书 |
CPQ4228 | Nonstandard | Tray | Active | Wirewound | Ferrite | 47 µH | ±20% | 34 A | 17.6A | Shielded | 2.95mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Flat Wire, High Current | Through Hole | Vertical, 4 PC Pin | 1.654" L x 1.409" W (42.00mm x 35.80mm) | 1.142" (29.00mm) |
|
|
CPQ4228-221MTHT HIGH CURRENT POWER INDUCTOR CODACA |
31 |
|
规格书 |
CPQ4228 | Nonstandard | Tray | Active | Wirewound | Ferrite | 220 µH | ±20% | 17.5 A | 7.2A | Shielded | 11.5mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Flat Wire, High Current | Through Hole | Vertical, 4 PC Pin | 1.654" L x 1.409" W (42.00mm x 35.80mm) | 1.142" (29.00mm) |
|
|
CPEX3635S-620MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
30 |
|
规格书 |
CPEX3635S | Vertical, 2 PC Pin | Tray | Active | Wirewound | Metal Composite | 62 µH | ±20% | 32 A | 41A | Shielded | 6.15mOhm Max | - | - | - | -55°C ~ 155°C | - | Low DCR, Soft Saturation | Through Hole | - | 1.417" L x 1.406" W (36.00mm x 35.70mm) | 1.346" (34.20mm) |
|
|
CPEX3635S-4R3MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
30 |
|
规格书 |
CPEX3635S | Vertical, 2 PC Pin | Tray | Active | Wirewound | Metal Composite | 4.3 µH | ±20% | 107 A | 150A | Shielded | 0.46mOhm Max | - | - | - | -55°C ~ 155°C | - | Low DCR, Soft Saturation | Through Hole | - | 1.417" L x 1.406" W (36.00mm x 35.70mm) | 1.346" (34.20mm) |
|
|
CPEX3635S-750MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
30 |
|
规格书 |
CPEX3635S | Vertical, 2 PC Pin | Tray | Active | Wirewound | Metal Composite | 75 µH | ±20% | 30 A | 38A | Shielded | 7.41mOhm Max | - | - | - | -55°C ~ 155°C | - | Low DCR, Soft Saturation | Through Hole | - | 1.417" L x 1.406" W (36.00mm x 35.70mm) | 1.346" (34.20mm) |
|
|
CPEX3635S-5R6MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
30 |
|
规格书 |
CPEX3635S | Vertical, 2 PC Pin | Tray | Active | Wirewound | Metal Composite | 5.6 µH | ±20% | 73 A | 130A | Shielded | 0.61mOhm Max | - | - | - | -55°C ~ 155°C | - | Low DCR, Soft Saturation | Through Hole | - | 1.417" L x 1.406" W (36.00mm x 35.70mm) | 1.346" (34.20mm) |
|
|
CPEX3635S-3R3MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
30 |
|
规格书 |
CPEX3635S | Vertical, 2 PC Pin | Tray | Active | Wirewound | Metal Composite | 3.3 µH | ±20% | 120 A | 175A | Shielded | 0.36mOhm Max | - | - | - | -55°C ~ 155°C | - | Low DCR, Soft Saturation | Through Hole | - | 1.417" L x 1.406" W (36.00mm x 35.70mm) | 1.346" (34.20mm) |
