固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CPDX1515A-4R7MCTHT CLASS D IND FOR DIGITAL AMP CODACA |
350 |
|
规格书 |
CPDX1515A | Vertical, 2 PC Pin | Tray | Active | Wirewound | Metal Composite | 4.7 µH | ±20% | 21 A | 44.3A | Shielded | 4mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Through Hole | - | 0.610" L x 0.602" W (15.50mm x 15.30mm) | 0.630" (16.00mm) |
|

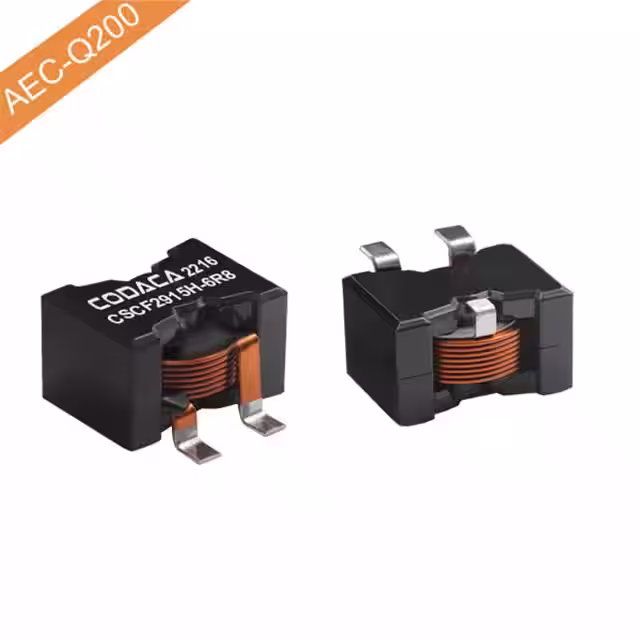

CSCF2915H-100MCSMD HIGH CURRENT POWER INDUCTOR CODACA |
515 |
|
规格书 |
CSCF2915H | Nonstandard | Tray | Active | Wirewound | Ferrite | 10 µH | ±20% | 32 A | 23A | Shielded | 1.65mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Mn-Zn Ferrite Low Loss | Surface Mount | - | 1.098" L x 1.098" W (27.90mm x 27.90mm) | 0.606" (15.40mm) |
|
|
CSCM1290-220MSMD HIGH CURRENT POWER INDUCTOR CODACA |
250 |
|
规格书 |
CSCM1290 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Ferrite | 22 µH | ±20% | 7.7 A | 6.8A | Shielded | 23.1mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Low Loss Ferrite Core | Surface Mount | 3-SMD | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.354" (9.00mm) |
|
|
CSCM1480L-8R0MSMD HIGH CURRENT POWER INDUCTOR CODACA |
250 |
|
规格书 |
CSCM1480L | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 8 µH | ±20% | 11 A | 12.5A | Shielded | 7.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Low Loss Ferrite Core | Surface Mount | 3-SMD | 0.583" L x 0.571" W (14.80mm x 14.50mm) | 0.315" (8.00mm) |
|
|
CSCM1480L-6R1MSMD HIGH CURRENT POWER INDUCTOR CODACA |
250 |
|
规格书 |
CSCM1480L | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.1 µH | ±20% | 12.5 A | 14.5A | Shielded | 6.03mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Low Loss Ferrite Core | Surface Mount | 3-SMD | 0.583" L x 0.571" W (14.80mm x 14.50mm) | 0.315" (8.00mm) |
|
|
CSCM1480L-4R5MSMD HIGH CURRENT POWER INDUCTOR CODACA |
250 |
|
规格书 |
CSCM1480L | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.5 µH | ±20% | 16 A | 17A | Shielded | 4.97mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Low Loss Ferrite Core | Surface Mount | 3-SMD | 0.583" L x 0.571" W (14.80mm x 14.50mm) | 0.315" (8.00mm) |
|
|
CSCM1480L-120MSMD HIGH CURRENT POWER INDUCTOR CODACA |
248 |
|
规格书 |
CSCM1480L | Nonstandard | Cut Tape (CT) | Active | Wirewound | Ferrite | 12 µH | ±20% | 8.5 A | 10A | Shielded | 13.3mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Low Loss Ferrite Core | Surface Mount | 3-SMD | 0.583" L x 0.571" W (14.80mm x 14.50mm) | 0.315" (8.00mm) |
|
|
CSCM1480H-4R7MSMD HIGH CURRENT POWER INDUCTOR CODACA |
248 |
|
规格书 |
CSCM1480H | Nonstandard | Cut Tape (CT) | Active | Wirewound | Ferrite | 4.7 µH | ±20% | 11 A | 22A | Shielded | 7.8mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Low Loss Ferrite Core | Surface Mount | 3-SMD | 0.583" L x 0.571" W (14.80mm x 14.50mm) | 0.315" (8.00mm) |
|
|
CSCM1480L-100MSMD HIGH CURRENT POWER INDUCTOR CODACA |
246 |
|
规格书 |
CSCM1480L | Nonstandard | Cut Tape (CT) | Active | Wirewound | Ferrite | 10 µH | ±20% | 10 A | 11.5A | Shielded | 9.58mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Low Loss Ferrite Core | Surface Mount | 3-SMD | - | - |
|
|
CSCM1480L-3R1MSMD HIGH CURRENT POWER INDUCTOR CODACA |
246 |
|
规格书 |
CSCM1480L | Nonstandard | Cut Tape (CT) | Active | Wirewound | Ferrite | 3.1 µH | ±20% | 17.5 A | 20A | Shielded | 3.23mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Low Loss Ferrite Core | Surface Mount | 3-SMD | 0.583" L x 0.571" W (14.80mm x 14.50mm) | 0.315" (8.00mm) |
