固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CSEG0520H-1R8MMOLDING POWER CHOKE CODACA |
0 |
|
规格书 |
* | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
CSEG0520H-R90MMOLDING POWER CHOKE CODACA |
0 |
|
规格书 |
* | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|

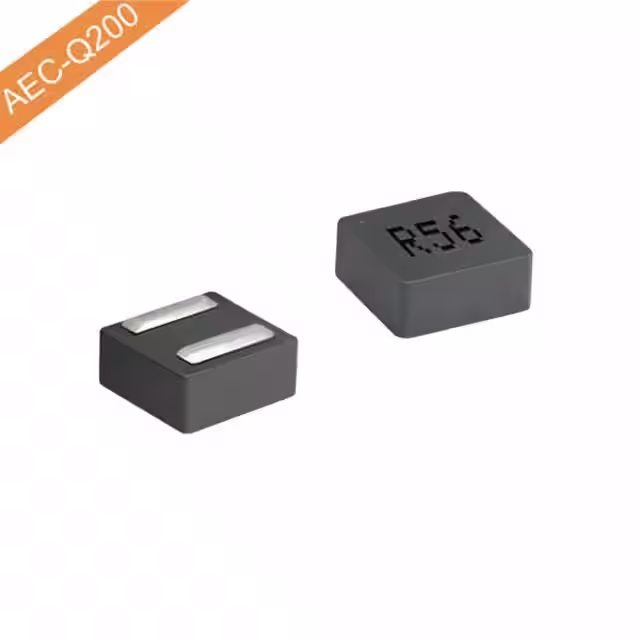

CSEB0530H-2R2MSMD MOLDING POWER CHOKE CODACA |
0 |
|
规格书 |
CSEB0530H | Nonstandard | Active | Molded | Metal Composite | 2.2 µH | ±20% | 8.8 A | 8.5A | Shielded | 14.5mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.219" L x 0.211" W (5.55mm x 5.35mm) | 0.126" (3.20mm) | |
|
|
CSBX1250-3R3MFLAT WIRE HIGH CURRENT INDUCTOR CODACA |
0 |
|
规格书 |
* | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
CSBX1265-390MFLAT WIRE HIGH CURRENT INDUCTOR CODACA |
0 |
|
规格书 |
CSBX1265 | 2-SMD | Active | Wirewound | Metal Composite | 39 µH | ±20% | 4.5 A | 8A | Shielded | 46.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | - | High Current, Low Loss | Surface Mount | 1265 | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.244" (6.20mm) | |
|
|
CSBX1265-R20MFLAT WIRE HIGH CURRENT INDUCTOR CODACA |
0 |
|
规格书 |
CSBX1265 | 2-SMD | Active | Wirewound | Metal Composite | 0.2 µH | ±20% | 36 A | 110A | Shielded | 0.37mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | - | High Current, Low Loss | Surface Mount | 1265 | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.244" (6.20mm) | |
|
|
CSBX1265-7R3MFLAT WIRE HIGH CURRENT INDUCTOR CODACA |
0 |
|
规格书 |
CSBX1265 | 2-SMD | Active | Wirewound | Metal Composite | 7.3 µH | ±20% | 13 A | 18.5A | Shielded | 6.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | - | High Current, Low Loss | Surface Mount | 1265 | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.244" (6.20mm) | |
|
|
CSBX1265-R47MFLAT WIRE HIGH CURRENT INDUCTOR CODACA |
0 |
|
规格书 |
CSBX1265 | 2-SMD | Active | Wirewound | Metal Composite | 0.47 µH | ±20% | 32 A | 90A | Shielded | 0.75mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | - | High Current, Low Loss | Surface Mount | 1265 | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.244" (6.20mm) | |
|
|
CSBX1265-110MFLAT WIRE HIGH CURRENT INDUCTOR CODACA |
0 |
|
规格书 |
CSBX1265 | 2-SMD | Active | Wirewound | Metal Composite | 11 µH | ±20% | 11 A | 15A | Shielded | 10.2mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | - | High Current, Low Loss | Surface Mount | 1265 | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.244" (6.20mm) | |
|
|
CSBX1265-270MFLAT WIRE HIGH CURRENT INDUCTOR CODACA |
0 |
|
规格书 |
CSBX1265 | 2-SMD | Active | Wirewound | Metal Composite | 27 µH | ±20% | 6.5 A | 9.5A | Shielded | 27.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | - | High Current, Low Loss | Surface Mount | 1265 | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.244" (6.20mm) |
