固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTGS54F-2R2M2.2UH SMD UNSHLD POWER INDUCTOR Central Technologies |
1,500 |
|
规格书 |
CTGS54F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±20% | 3.8 A | - | Unshielded | 35mOhm Max | - | - | - | -40°C ~ 100°C | 7.96 MHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.193" (4.90mm) |
|
|
CTGS54F-1R8M1.8UH SMD UNSHLD POWER INDUCTOR Central Technologies |
1,500 |
|
规格书 |
CTGS54F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.8 µH | ±20% | 4 A | - | Unshielded | 30mOhm Max | - | - | - | -40°C ~ 100°C | 7.96 MHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.193" (4.90mm) |
|
|
CTGS54F-6R8M6.8UH SMD UNSHLD POWER INDUCTOR Central Technologies |
1,500 |
|
规格书 |
CTGS54F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 6.8 µH | ±20% | 2.1 A | - | Unshielded | 80mOhm Max | - | - | - | -40°C ~ 100°C | 7.96 MHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.193" (4.90mm) |
|
|
CTGS54F-150M15UH SMD UNSHLD POWER INDUCTOR Central Technologies |
1,495 |
|
规格书 |
CTGS54F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 15 µH | ±20% | 1.3 A | - | Unshielded | 140mOhm Max | - | - | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.193" (4.90mm) |
|
|
CTGS54F-180K18UH SMD UNSHLD POWER INDUCTOR Central Technologies |
505 |
|
规格书 |
CTGS54F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 18 µH | ±10% | 1.2 A | - | Unshielded | 150mOhm Max | - | - | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.193" (4.90mm) |
|
CT921CYF-2R2MSMD SHIELDED POWER INDUCTOR Central Technologies |
2,000 |
|
规格书 |
ct921cyf | - | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±20% | - | - | - | 24mOhm | - | - | - | -40°C ~ 85°C | - | - | Surface Mount | - | - | - |
|
CTMMP104F-R47MSMD Shielded Power Inductor Central Technologies |
1,987 |
|
规格书 |
- | - | Bulk | Active | - | - | 0.47 µH | ±20% | 38 A | - | Shielded | 1.2mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.398" L x 0.457" W (10.10mm x 11.60mm) | 0.157" (4.00mm) |
|

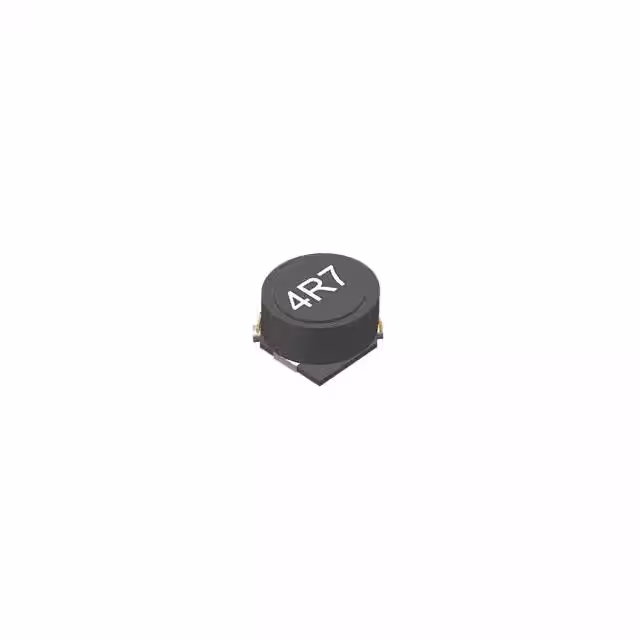

CTSLF0628TF-4R7M4.7UH SMD SHLDED POWER INDUCTOR Central Technologies |
2,000 |
|
规格书 |
CTSLF0628TF | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 2.5 A | 1.6A | Shielded | 28.4mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
CTCDRH8D43F-6R8N6.8UH SMD SHIELDED POWR INDUCTOR Central Technologies |
1,580 |
|
规格书 |
CTCDRH8D43F | Nonstandard | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±30% | - | 4.2A | Shielded | 25mOhm Max | - | - | - | -30°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.185" (4.70mm) |
|
|
CTCDRH8D43F-470N47UH SMD SHIELDED POWER INDUCTOR Central Technologies |
800 |
|
规格书 |
CTCDRH8D43F | Nonstandard | Tape & Reel (TR) | Active | - | - | 47 µH | ±30% | - | 1.4A | Shielded | 150mOhm Max | - | - | - | -30°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.185" (4.70mm) |
