固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTMC1812SF-391JSMD FERRITE CORE WW INDUCTOR Central Technologies |
1,010 |
|
规格书 |
CTMC1812SF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 390 µH | ±5% | 80 mA | - | Unshielded | 18Ohm Max | 40 @ 796kHz | 3.5MHz | - | -40°C ~ 125°C | 796 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|

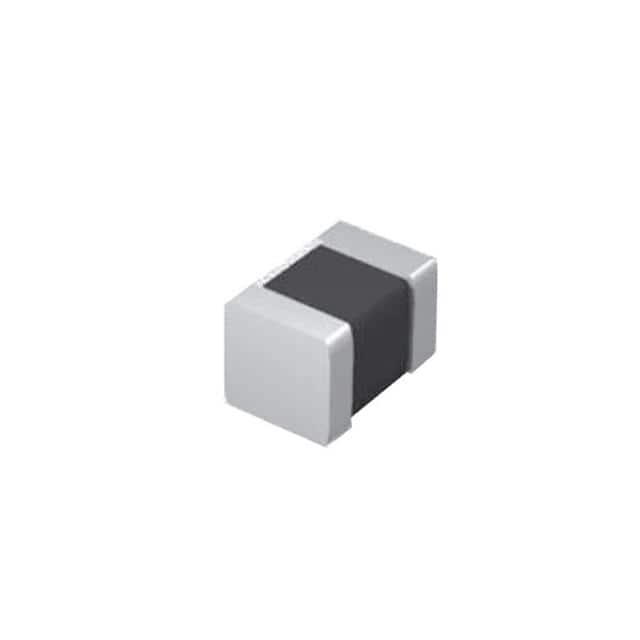

CTLC0603F-10NJSMD LASER CUT INDUCTOR Central Technologies |
2,950 |
|
- |
CTLC0603F | 0603 (1608 Metric) | Bulk | Obsolete | - | - | 10 nH | ±5% | 600 mA | - | Unshielded | 200mOhm Max | 14 @ 100MHz | 5GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
CTLQ1812NF-221J220UH 110MA SMD WW INDUCTOR Central Technologies |
1,500 |
|
规格书 |
CTLQ1812NF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 220 µH | ±5% | 110 mA | - | Unshielded | 5.4Ohm Max | 40 @ 796kHz | 4.5MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
CTDO3308PF-104100UH SMD POWER INDUCTOR Central Technologies |
6,011 |
|
规格书 |
CTDO3308PF | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±20% | 730 mA | 870mA | Unshielded | 690mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.118" (3.00mm) |
|
|
CTDO3308PF-6826.8UH SMD POWER INDUCTOR Central Technologies |
5,001 |
|
规格书 |
CTDO3308PF | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 6.8 µH | ±20% | 2.6 A | 3.9A | Unshielded | 60mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.118" (3.00mm) |
|
|
CTDO3308PF-33333UH SMD POWER INDUCTOR Central Technologies |
2,000 |
|
规格书 |
CTDO3308PF | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 33 µH | ±20% | 1.2 A | 1.6A | Unshielded | 250mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.118" (3.00mm) |
|
|
CTDO3308PF-10310UH SMD POWER INDUCTOR Central Technologies |
1,650 |
|
规格书 |
CTDO3308PF | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 2.3 A | 2.7A | Unshielded | 85mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.118" (3.00mm) |
|
CT0603CSF-4N7GSMD CER CORE WIRE-WOUND INDUCTOR Central Technologies |
16,378 |
|
规格书 |
ct0603csf | - | Tape & Reel (TR) | Active | Wirewound | - | 4.7 nH | ±2% | - | - | - | 116mOhm | - | 5.8GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT0603CSF-8N2GSMD CER CORE WIRE-WOUND INDUCTOR Central Technologies |
15,143 |
|
规格书 |
ct0603csf | - | Tape & Reel (TR) | Active | Wirewound | - | 8.2 nH | ±2% | - | - | - | 109mOhm | - | 4.7GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
CT0805CSF-122GSMD CER CORE WIRE-WOUND INDUCTOR Central Technologies |
6,380 |
|
规格书 |
ct0805csf | - | Tape & Reel (TR) | Active | Wirewound | - | 1.2 µH | ±2% | - | - | - | 2.5Ohm | - | 100MHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
