固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CT1008LSCF-220JSMD FER CORE WIRE-WOUND INDUCTOR Central Technologies |
1,820 |
|
规格书 |
ct1008lscf | - | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±5% | - | - | - | 5.5Ohm | - | 22MHz | - | -25°C ~ 85°C | - | - | Surface Mount | - | - | - |
|
CT0603CSF-18NGSMD CER CORE WIRE-WOUND INDUCTOR Central Technologies |
4,044 |
|
规格书 |
ct0603csf | - | Tape & Reel (TR) | Active | Wirewound | - | 18 nH | ±2% | - | - | - | 170mOhm | - | 3.1GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
CT0805FSF-102JSMD FER CORE WIRE-WOUND INDUCTOR Central Technologies |
1,800 |
|
规格书 |
ct0805fsf | - | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±5% | - | - | - | 800mOhm | - | 280MHz | - | -40°C ~ 85°C | - | - | Surface Mount | - | - | - |
|
|
CT0603CSF-R27GSMD CER CORE WIRE-WOUND INDUCTOR Central Technologies |
1,400 |
|
规格书 |
ct0603csf | - | Tape & Reel (TR) | Active | Wirewound | - | 270 nH | ±2% | - | - | - | 2.3Ohm | - | 900MHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|

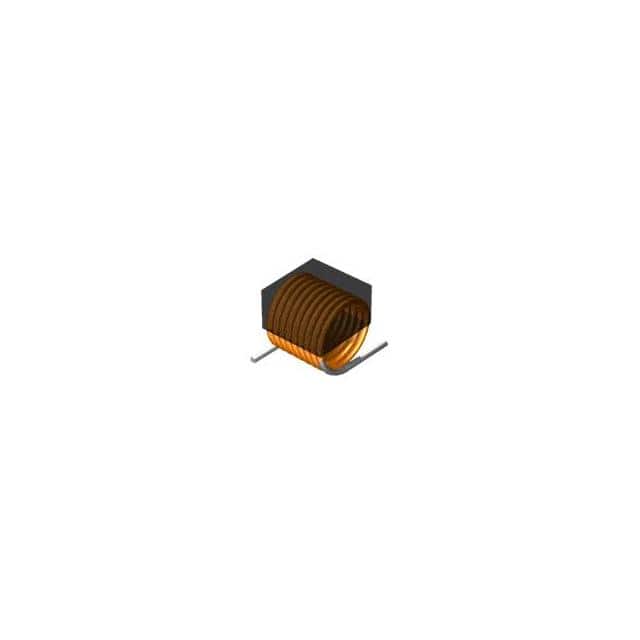

CT1812SMSF-39NJSMD AIR CORE INDUCTOR Central Technologies |
1,965 |
|
规格书 |
ct1812smsf | - | Tape & Reel (TR) | Active | Wirewound | - | 39 nH | ±5% | - | - | - | 5.4mOhm | - | 2.1MHz | - | -40°C ~ 85°C | - | - | Surface Mount | - | - | - |
|

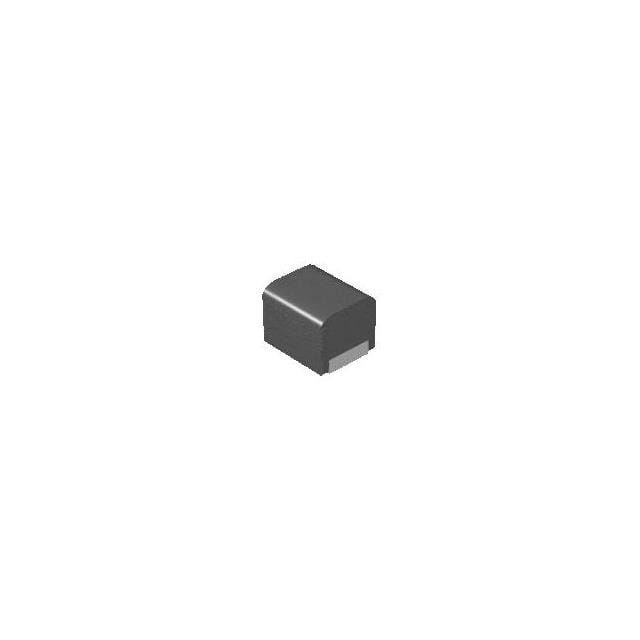

CTMC1008F-R18J.18UH FERRITE CORE WW INDUCTOR Central Technologies |
1,990 |
|
规格书 |
CTMC1008F | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 nH | ±5% | 460 mA | - | Unshielded | 400mOhm Max | 30 @ 25.2MHz | 500MHz | - | -45°C ~ 85°C | 25.2 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
|

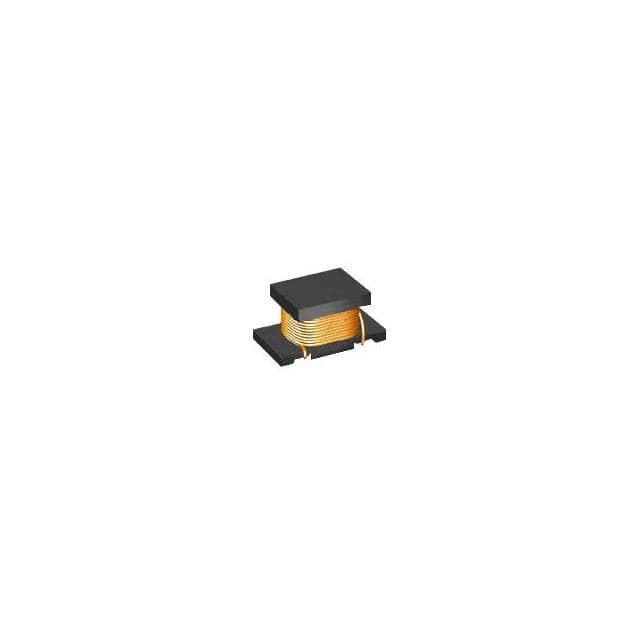

CTLQ1210CF-470K47UH 170MA SMD WW INDUCTOR Central Technologies |
1,694 |
|
规格书 |
CTLQ1210CF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±10% | 170 mA | - | Unshielded | 1.8Ohm Max | - | 15MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
CTLQ1210CF-331K330UH 60MA SMD WW INDUCTOR Central Technologies |
1,685 |
|
规格书 |
CTLQ1210CF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 330 µH | ±10% | 60 mA | - | Unshielded | 14Ohm Max | - | 5.6MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
CTLQ1210CF-220K22UH 250MA SMD WW INDUCTOR Central Technologies |
1,680 |
|
规格书 |
CTLQ1210CF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±10% | 250 mA | - | Unshielded | 950mOhm Max | - | 19MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
CTLQ1210CF-561K560UH 60MA SMD WW INDUCTOR Central Technologies |
1,190 |
|
规格书 |
CTLQ1210CF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 560 µH | ±10% | 60 mA | - | Unshielded | 30Ohm Max | - | 5MHz | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
