固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

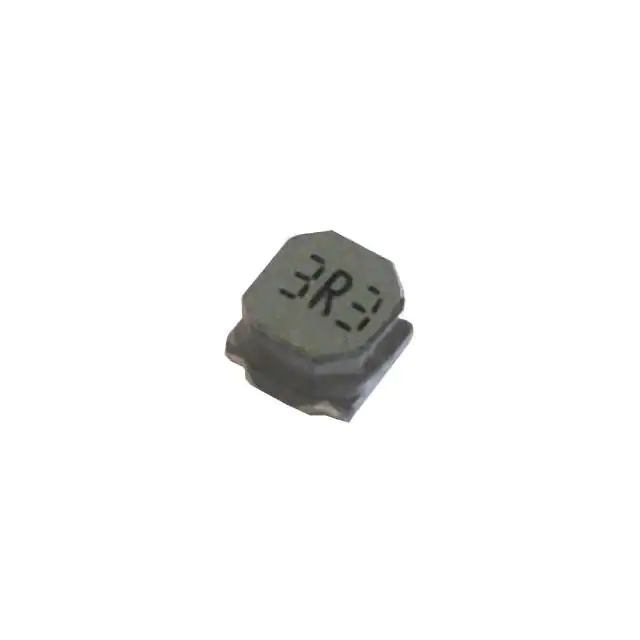

CTLV4026SF-3R3MSMD POWER INDUCTOR Central Technologies |
10 |
|
规格书 |
CTLV4026SF | Nonstandard | Tape & Reel (TR) | Active | - | - | 3.3 µH | ±20% | 2.25 A | 2.7A | Shielded | 67mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.110" (2.80mm) |
|
|
CTLV4026SF-5R6MSMD POWER INDUCTOR Central Technologies |
10 |
|
规格书 |
CTLV4026SF | Nonstandard | Tape & Reel (TR) | Active | - | - | 5.6 µH | ±20% | 1.71 A | 2.07A | Shielded | 110mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.110" (2.80mm) |
|
|
CTLV4026SF-4R7MSMD POWER INDUCTOR Central Technologies |
10 |
|
规格书 |
CTLV4026SF | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 1.8 A | 2.34A | Shielded | 92mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.110" (2.80mm) |
|
|
CTLV4026SF-220MSMD POWER INDUCTOR Central Technologies |
10 |
|
规格书 |
CTLV4026SF | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 900 mA | 1.09A | Shielded | 330mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.110" (2.80mm) |
|
|
CTLV4026SF-1R5MSMD POWER INDUCTOR Central Technologies |
10 |
|
规格书 |
CTLV4026SF | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.5 µH | ±20% | 3.33 A | 3.78A | Shielded | 35mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.110" (2.80mm) |
|
|
CTLV4026SF-1R0MSMD POWER INDUCTOR Central Technologies |
10 |
|
规格书 |
CTLV4026SF | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±20% | 3.6 A | 4.5A | Shielded | 30mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.110" (2.80mm) |
|
|
CTLV4026SF-330MSMD POWER INDUCTOR Central Technologies |
10 |
|
规格书 |
CTLV4026SF | Nonstandard | Tape & Reel (TR) | Active | - | - | 33 µH | ±20% | 730 mA | 900mA | Shielded | 480mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.110" (2.80mm) |
|
|
CTLV4026SF-150MSMD POWER INDUCTOR Central Technologies |
10 |
|
规格书 |
CTLV4026SF | Nonstandard | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | 1.08 A | 1.3A | Shielded | 240mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.110" (2.80mm) |
|
CTMMP73VCZF-R33MSMD Shielded Power Inductor Central Technologies |
10 |
|
规格书 |
- | - | Bulk | Active | - | - | 0.33 µH | ±20% | 33 A | - | Shielded | 4mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.260" L x 0.287" W (6.60mm x 7.30mm) | 0.118" (3.00mm) |
|
|
CTMMP73VCZF-R82MSMD Shielded Power Inductor Central Technologies |
10 |
|
规格书 |
- | - | Bulk | Active | - | - | 0.82 µH | ±20% | 23 A | - | Shielded | 7.5mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.260" L x 0.287" W (6.60mm x 7.30mm) | 0.118" (3.00mm) |
