固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTRL5480F-1-223K22000UH RADIAL FIXED INDUCTR Central Technologies |
1 |
|
- |
CTRL5480F-1 | Radial, Vertical Cylinder | Bulk | Active | - | - | 22 mH | ±10% | 15 mA | 18mA | Unshielded | 135Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.224" Dia (5.70mm) | 0.337" (8.57mm) |
|
|
CTRL5480F-1-102K1000UH RADIAL FIXED INDUCTR Central Technologies |
1 |
|
- |
CTRL5480F-1 | Radial, Vertical Cylinder | Bulk | Active | - | - | 1 mH | ±10% | 60 mA | 92mA | Unshielded | 5.5Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.224" Dia (5.70mm) | 0.337" (8.57mm) |
|
CTLV2510SF-1R0M1.0UH SMD POWER INDUCTOR Central Technologies |
6 |
|
规格书 |
CTLV2510SF | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | - | 1 µH | ±20% | 1.78 A | 1.84A | Shielded | 66mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.040" (1.02mm) |
|
CTGS32F-821K820UH SMD UNSHLD POWER INDUCTOR Central Technologies |
46 |
|
规格书 |
CTGS32F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 820 µH | ±10% | 80 mA | 100mA | Unshielded | 22.5Ohm Max | 45 @ 796kHz | 4MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.110" W (3.00mm x 2.80mm) | 0.110" (2.80mm) |
|

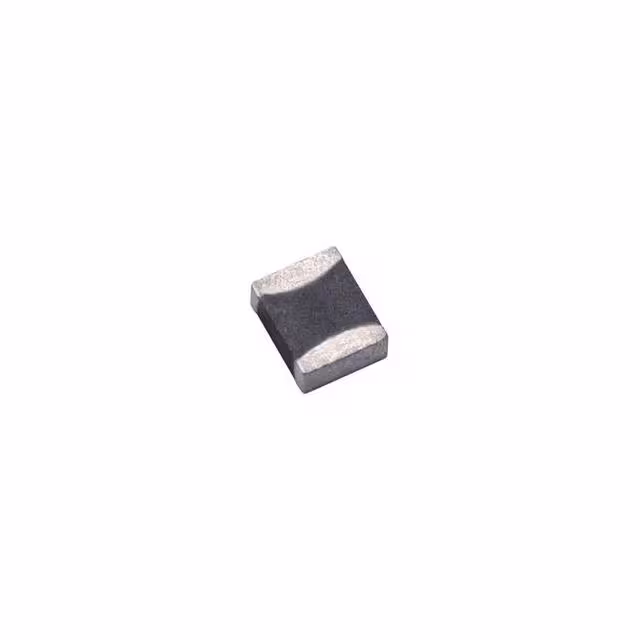

CTMPC080605F-R68M0.68UH SMD SHLDED POWER INDUCTOR Central Technologies |
25 |
|
规格书 |
CTMPC080605F | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Molded | - | 680 nH | ±20% | 2.6 A | 3.3A | Shielded | 70mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
|
CTLVC6028F-680M68UH SMD POWER INDUCTOR Central Technologies |
5 |
|
规格书 |
CTLVC6028F | 2424 (6060 Metric) | Tape & Reel (TR) | Active | - | - | 68 µH | ±20% | 810 mA | 880mA | Shielded | 420mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
CTLV4026SF-100MSMD POWER INDUCTOR Central Technologies |
9 |
|
规格书 |
CTLV4026SF | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 1.26 A | 1.71A | Shielded | 188mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.110" (2.80mm) |
|
CTMMP73VCZF-3R3MSMD Shielded Power Inductor Central Technologies |
8 |
|
规格书 |
- | - | Bulk | Active | - | - | 3.3 µH | ±20% | 12 A | - | Shielded | 32mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.260" L x 0.287" W (6.60mm x 7.30mm) | 0.118" (3.00mm) |
|
|
CTLV4026SF-6R8MSMD POWER INDUCTOR Central Technologies |
5 |
|
规格书 |
CTLV4026SF | Nonstandard | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±20% | 1.53 A | 1.8A | Shielded | 130mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.110" (2.80mm) |
|
|
CTLV4026SF-2R2MSMD POWER INDUCTOR Central Technologies |
5 |
|
规格书 |
CTLV4026SF | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±20% | 3.15 A | 3.42A | Shielded | 45mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.110" (2.80mm) |
