固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTGS43F-4R7M4.7UH SMD UNSHLD POWER INDUCTOR Central Technologies |
1,490 |
|
规格书 |
CTGS43F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±20% | - | 1.7A | Unshielded | 94mOhm Max | - | - | - | -40°C ~ 100°C | 7.96 MHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
|
CTGS43F-330K33UH SMD UNSHLD POWER INDUCTOR Central Technologies |
470 |
|
规格书 |
CTGS43F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 33 µH | ±10% | - | 640mA | Unshielded | 540mOhm Max | - | - | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
CTGS75F-180K18UH SMD UNSHLD POWER INDUCTOR Central Technologies |
2,768 |
|
规格书 |
CTGS75F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 18 µH | ±10% | - | 1.6A | Unshielded | 100mOhm Max | - | - | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
CTGS75F-120K12UH SMD UNSHLD POWER INDUCTOR Central Technologies |
415 |
|
规格书 |
CTGS75F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 12 µH | ±10% | - | 2A | Unshielded | 80mOhm Max | - | - | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
CTCDRH127/LDF-180M18UH SMD SHIELDED POWR INDUCTOR Central Technologies |
1,480 |
|
规格书 |
CTCDRH127/LDF | Nonstandard | Tape & Reel (TR) | Active | - | - | 18 µH | ±20% | 5.04 A | 5.1A | Shielded | 28mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
CTCDRH127/LDF-151M150UH SMD SHIELDED POWR INDUCTOR Central Technologies |
223 |
|
规格书 |
CTCDRH127/LDF | Nonstandard | Tape & Reel (TR) | Active | - | - | 150 µH | ±20% | 1.76 A | 1.8A | Shielded | 227mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|

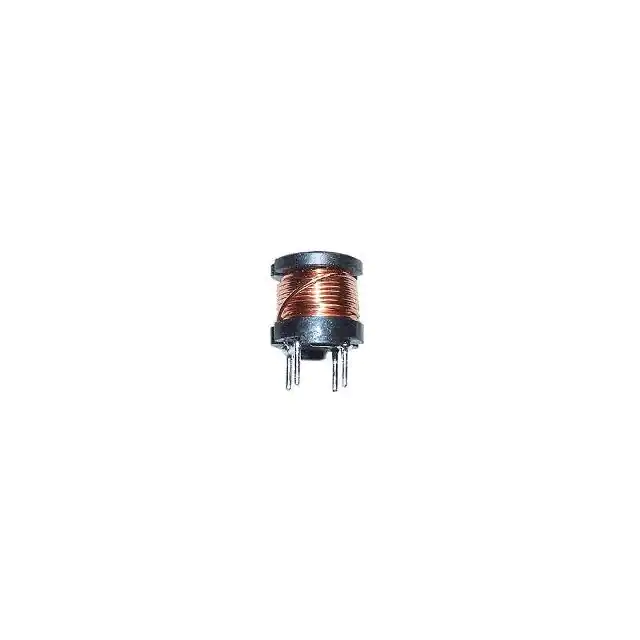

CTCH110F-271K270UH RADIAL LEAD FIXED INDUCTOR Central Technologies |
3,000 |
|
- |
CTCH110F | Radial, Vertical Cylinder, 4 Leads | Bulk | Active | Wirewound | - | 270 µH | ±10% | - | 1A | Unshielded | 400mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | Radial | 0.394" Dia (10.00mm) | 0.413" (10.50mm) |
|
CTCDRH125F-121M120UH SMD SHIELDED POWR INDUCTOR Central Technologies |
2,940 |
|
规格书 |
CTCDRH125F | Nonstandard | Tape & Reel (TR) | Active | - | - | 120 µH | ±20% | - | 1.1A | Shielded | 170mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.236" (6.00mm) |
|
|
CTCDRH125F-221M220UH SMD SHIELDED POWR INDUCTOR Central Technologies |
490 |
|
规格书 |
CTCDRH125F | Nonstandard | Tape & Reel (TR) | Active | - | - | 220 µH | ±20% | - | 800mA | Shielded | 400mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.236" (6.00mm) |
|
CTGS54F-220M22UH SMD UNSHLD POWER INDUCTOR Central Technologies |
2,062 |
|
规格书 |
CTGS54F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 1.1 A | - | Unshielded | 180mOhm Max | - | - | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.193" (4.90mm) |
