固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MLG1005SR30JT000FIXED IND 300NH 50MA 6.5 OHM SMD |
12,771 |
|
规格书 |
MLG | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 300 nH | ±5% | 50 mA | - | Unshielded | 6.5Ohm Max | - | 350MHz | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
.jpg)
|
LQP03TN56NH02DFIXED IND 56NH 100MA 3.9 OHM SMD |
12,735 |
|
规格书 |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | 56 nH | ±3% | 100 mA | - | Unshielded | 3.9Ohm Max | 9 @ 300MHz | 1.2GHz | - | -55°C ~ 125°C | 300 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
.jpg)
|
LQG15HN22NH02DFIXED IND 22NH 350MA 0.58OHM SMD |
12,679 |
|
规格书 |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 22 nH | ±3% | 350 mA | - | Unshielded | 580mOhm Max | - | 1.8GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
.jpg)
|
LQP03TG20NH02DFIXED IND 20NH 140MA 2.57OHM SMD |
12,555 |
|
规格书 |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | 20 nH | ±3% | 140 mA | - | Unshielded | 2.57Ohm Max | 9 @ 500MHz | 2.6GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
CV201210-220KFIXED IND 22UH 5MA 1.1 OHM SMD |
12,518 |
|
规格书 |
CV201210 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 22 µH | ±10% | 5 mA | - | Shielded | 1.1Ohm Max | 30 @ 1MHz | 16MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|

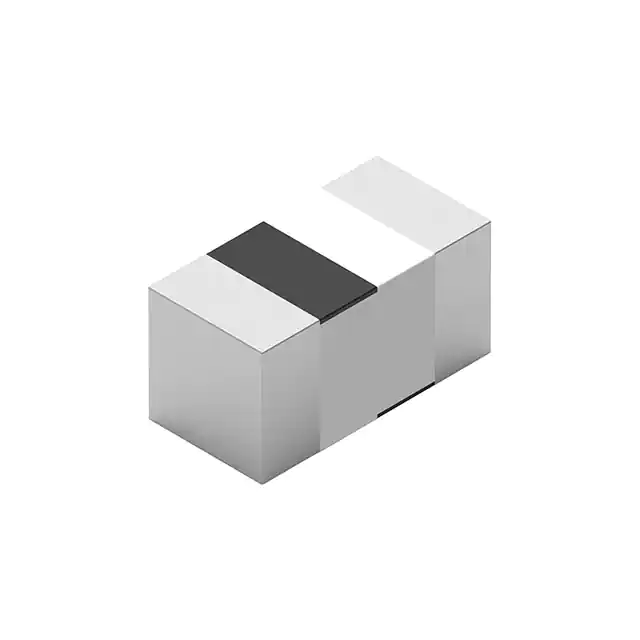

7847806271WE-MCI MULTILAYER CERAMIC SMD IN |
12,509 |
|
规格书 |
WE-MCI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 270 nH | ±5% | 300 mA | - | Unshielded | 1.9Ohm Max | 8 @ 50MHz | 400MHz | AEC-Q200 | -55°C ~ 125°C | 50 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
MLG0603P3N9CT000FIXED IND 3.9NH 400MA 300MOHM SM |
12,341 |
|
规格书 |
MLG-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 3.9 nH | ±0.2nH | 400 mA | - | Unshielded | 300mOhm Max | 14 @ 500MHz | 5.8GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
LQP03TN12NHZ2DFIXED IND 12NH 250MA 700MOHM SMD |
12,315 |
|
规格书 |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | 12 nH | ±3% | 250 mA | - | Unshielded | 700mOhm Max | 12 @ 500MHz | 2.9GHz | AEC-Q200 | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
-,65-White-Field.jpg)
|
MCL1005-101-RFIXED IND 100NH 150MA 2.6OHM SMD |
12,269 |
|
规格书 |
MCL1005 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 100 nH | ±5% | 150 mA | - | Unshielded | 2.6Ohm Max | 8 @ 100MHz | 700MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.026" (0.65mm) |
|
|
CV201210-6R8KFIXED IND 6.8UH 15MA 1 OHM SMD |
12,230 |
|
规格书 |
CV201210 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 6.8 µH | ±10% | 15 mA | - | Shielded | 1Ohm Max | 45 @ 4MHz | 29MHz | - | -55°C ~ 125°C | 4 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
7447820024GWE-MK MULTILAYER CERAMIC SMT IND |
12,185 |
|
规格书 |
WE-MK | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 2.4 nH | ±0.1nH | 350 mA | - | Unshielded | 200mOhm Max | 4 @ 100MHz | 8.3GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0201 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
BSPQ000603040N8B00FIXED IND CHIP CERM 0.8NH 1.1A |
12,175 |
|
规格书 |
BSPQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Ceramic | 0.8 nH | ±0.1nH | 1.1 A | - | Unshielded | 40mOhm Max | 20 @ 500MHz | 18GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.017" (0.43mm) |
|
BSCH001005052N7SCSINDUCTOR RF |
12,068 |
|
规格书 |
BSCH | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 2.7 nH | ±0.3nH | 400 mA | - | Unshielded | 150mOhm Max | 8 @ 100MHz | 7.7GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
|
MLG0603SR10JT000FIXED IND 100NH 50MA 4.5 OHM SMD |
12,001 |
|
规格书 |
MLG | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 100 nH | ±5% | 50 mA | - | Unshielded | 4.5Ohm Max | 5 @ 100MHz | 770MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
CI160808-82NJFIXED IND 82NH 300MA 1.5 OHM SMD |
11,985 |
|
规格书 |
CI160808 | 0603 (1608 Metric) | Tape & Reel (TR) | Not For New Designs | Multilayer | Ceramic | 82 nH | ±5% | 300 mA | - | Unshielded | 1.5Ohm Max | 10 @ 100MHz | 600MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
7447820110GWE-MK MULTILAYER CERAMIC SMT IND |
11,828 |
|
规格书 |
WE-MK | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 10 nH | ±2% | 220 mA | - | Unshielded | 510mOhm Max | 4 @ 100MHz | 2.9GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0201 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
MCQ1V1608-1R0-RFIXED IND 1UH 25MA 500 MOHM SMD |
11,690 |
|
规格书 |
MCQ1V1608 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 1 µH | ±10% | 25 mA | - | Unshielded | 500mOhm Max | 25 @ 10MHz | 75MHz | - | -40°C ~ 85°C | 10 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
MCQ1V3216-R820-RFIXED IND 820NH 150MA 600MOHM SM |
11,666 |
|
规格书 |
MCQ1V3216 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 820 nH | ±10% | 150 mA | - | Unshielded | 600mOhm Max | 30 @ 25MHz | 100MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.043" (1.10mm) |
|
|
LQG15HZ1N0C02DFIXED IND 1NH 1A 0.07OHM SMD |
11,550 |
|
规格书 |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 1 nH | ±0.2nH | 1 A | - | Unshielded | 70mOhm Max | - | 10GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
MCL1608V2-331-RFIXED IND 330NH 150MA 2.8OHM SMD |
11,420 |
|
规格书 |
MCL1608V2 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 330 nH | ±5% | 150 mA | - | Unshielded | 2.8Ohm Max | 8 @ 100MHz | 350MHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
