上传BOM
固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
17S472KLFMOLDED SHIELDED RF COILS AXIAL |
1,209 |
|
规格书 |
17S | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 47 µH | ±10% | 195 mA | - | Shielded | 2.11Ohm Max | 50 @ 2.5MHz | 27MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | Axial | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
FP3-R68-RFIXED IND 680NH 9.72A 4.63 MOHM |
2,355 |
|
规格书 |
FLAT-PAC 3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 680 nH | ±15% | 9.72 A | 11.6A | Unshielded | 4.63mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.285" L x 0.264" W (7.25mm x 6.70mm) | 0.118" (3.00mm) |
|

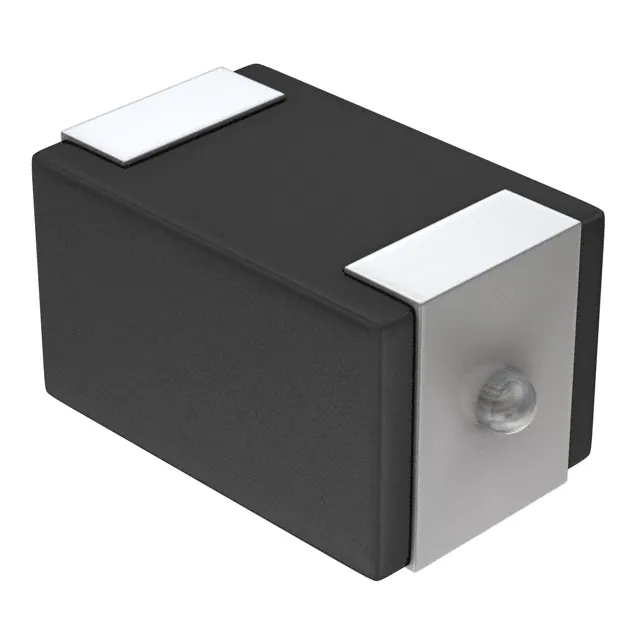

IHSM3825ER101LFIXED IND 100UH 480MA 1.44OHM SM |
428 |
|
规格书 |
IHSM-3825 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±15% | 480 mA | 420mA | Unshielded | 1.44Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.440" L x 0.250" W (11.18mm x 6.35mm) | 0.225" (5.72mm) |
|
2300LL-470-V-RCFIXED IND 47UH 11.8A 12 MOHM TH |
1,617 |
|
规格书 |
2300LL | Radial, Vertical (Open) | Bulk | Active | Toroidal | Sendust | 47 µH | ±15% | 11.8 A | - | Shielded | 12mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
HC9-6R8-RFIXED IND 6.8UH 10.3A 9.4MOHM SM |
484 |
|
规格书 |
HC9 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 6.8 µH | ±15% | 10.3 A | 15.1A | Unshielded | 9.4mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.555" L x 0.516" W (14.10mm x 13.10mm) | 0.295" (7.50mm) |
|
2300LL-102-H-RCFIXED IND 1MH 3.5A 137 MOHM TH |
453 |
|
规格书 |
2300LL | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Sendust | 1 mH | ±15% | 3.5 A | - | Shielded | 137mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.280" Dia (32.51mm) | 0.650" (16.51mm) |
|
2300LL-561-V-RCFIXED IND 560UH 4A 103 MOHM TH |
386 |
|
规格书 |
2300LL | Radial, Vertical (Open) | Bulk | Active | Toroidal | Sendust | 560 µH | ±15% | 4 A | - | Shielded | 103mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|

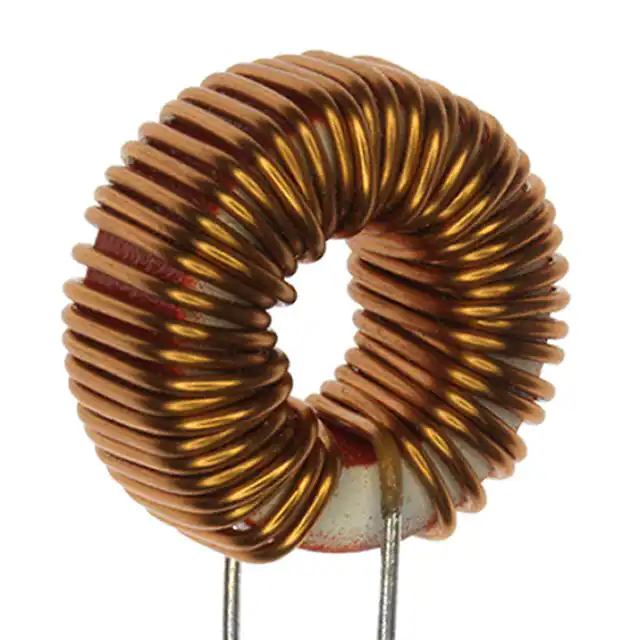

7447076FIXED IND 150UH 5A 45 MOHM TH |
290 |
|
规格书 |
WE-FI | Radial, Vertical (Open) | Tray | Active | Toroidal | Ferrite | 150 µH | ±20% | 5 A | - | Unshielded | 45mOhm Max | - | - | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 1.083" Dia x 0.512" W (27.50mm x 13.00mm) | - |
|

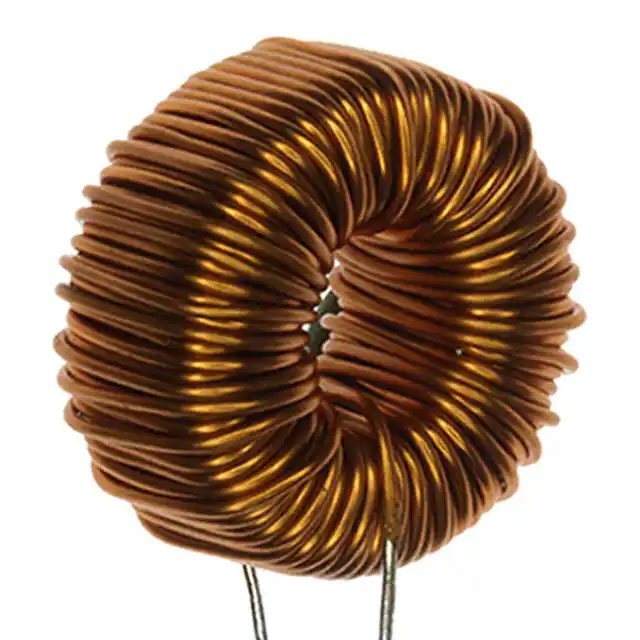

7447075FIXED IND 860UH 3A 150 MOHM TH |
195 |
|
规格书 |
WE-FI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | 860 µH | ±20% | 3 A | - | Unshielded | 150mOhm Max | - | - | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 1.122" Dia x 0.591" W (28.50mm x 15.00mm) | - |
|
SDS680R-105MFIXED IND 1MH 150MA 3.4OHM SMD |
6,071 |
|
规格书 |
SDS680R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 150 mA | - | Shielded | 3.4Ohm Max | - | 2MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
SDS680R-103MFIXED IND 10UH 1A 0.075OHM SMD |
4,620 |
|
规格书 |
SDS680R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1 A | - | Shielded | 75mOhm Max | - | 38MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
SDS680R-683MFIXED IND 68UH 400MA 0.29OHM SMD |
4,555 |
|
规格书 |
SDS680R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 400 mA | - | Shielded | 290mOhm Max | - | 15MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|

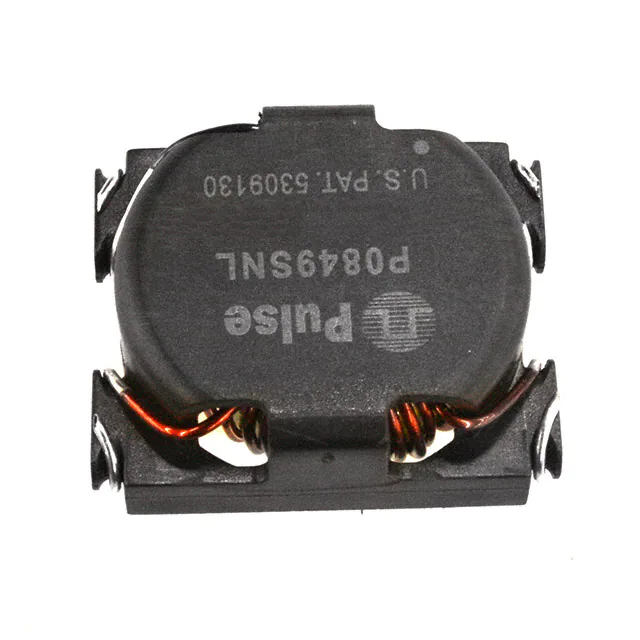

P0849SNLFIXED IND 33UH 5A 19 MOHM SMD |
706 |
|
规格书 |
Bigfoot | Nonstandard | Tube | Active | Toroidal | - | 33 µH | ±20% | 5 A | - | Shielded | 19mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 1.220" L x 1.000" W (30.99mm x 25.40mm) | 0.500" (12.70mm) |
|
|
74439369082WE-XHMI SMT POWER INDUCTOR 8,2 U |
273 |
|
规格书 |
WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 8.2 µH | ±20% | 9.8 A | 20.45A | Shielded | 10mOhm | - | 16MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.457" L x 0.413" W (11.60mm x 10.50mm) | 0.358" (9.10mm) |
|

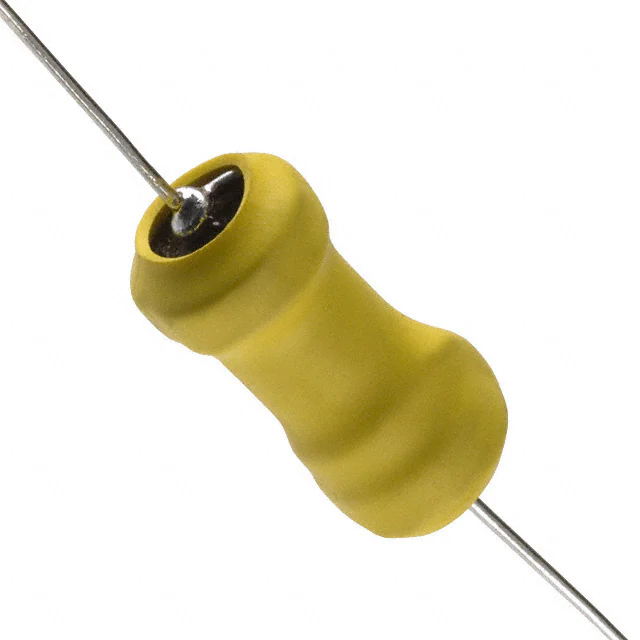

4590R-392KFIXED IND 3.9UH 9.75A 7 MOHM TH |
1,590 |
|
规格书 |
4590R | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 3.9 µH | ±10% | 9.75 A | 8.2A | Unshielded | 7mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.455" Dia x 0.900" L (11.55mm x 22.86mm) | - |
|
|
4590R-333KFIXED IND 33UH 4.87A 28 MOHM TH |
1,452 |
|
规格书 |
4590R | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 4.87 A | 2.9A | Unshielded | 28mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.455" Dia x 0.900" L (11.55mm x 22.86mm) | - |
|
|
4590R-104KFIXED IND 100UH 2.815A 84MOHM TH |
308 |
|
规格书 |
4590R | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 2.815 A | 1.7A | Unshielded | 84mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.455" Dia x 0.900" L (11.55mm x 22.86mm) | - |
|

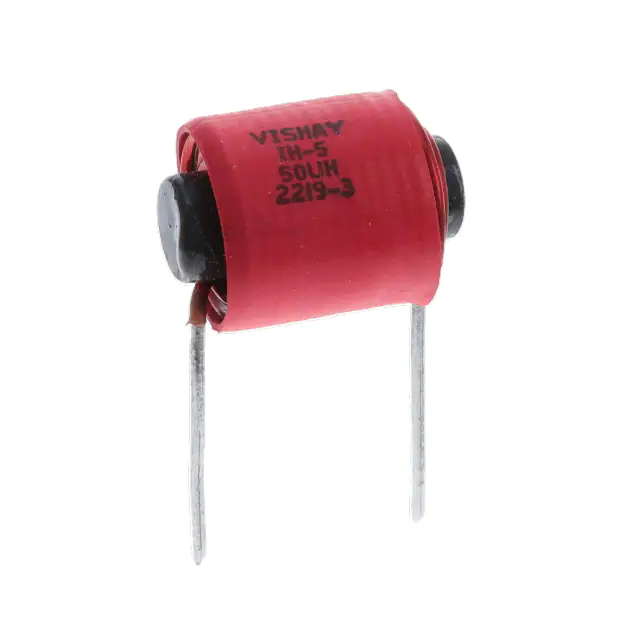

IH05BQ500KFIXED IND 50UH 8A 30 MOHM TH |
429 |
|
规格书 |
IH | Radial, Horizontal Cylinder | - | Active | Drum Core, Wirewound | Ferrite | 50 µH | ±10% | 8 A | 10A | Unshielded | 30mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.840" Dia x 1.125" L (21.34mm x 28.58mm) | - |
|
PE-53116NLFIXED IND 220UH 3A 70 MOHM TH |
820 |
|
规格书 |
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 220 µH | ±20% | 3 A | - | Unshielded | 70mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 1.300" L x 0.700" W (33.02mm x 17.78mm) | 1.400" (35.56mm) |
|
74435561100FIXED IND 10UH 15A 6.9 MOHM SMD |
430 |
|
规格书 |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 15 A | 21.5A | Shielded | 6.9mOhm | - | 14MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1890 | 0.720" L x 0.717" W (18.30mm x 18.20mm) | 0.362" (9.20mm) |
