固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRR1210-101MFIXED IND 100UH 2.5A 135MOHM SMD |
14,285 |
|
规格书 |
SRR1210 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 2.5 A | 2.2A | Shielded | 135mOhm Max | 16 @ 796kHz | 3MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|

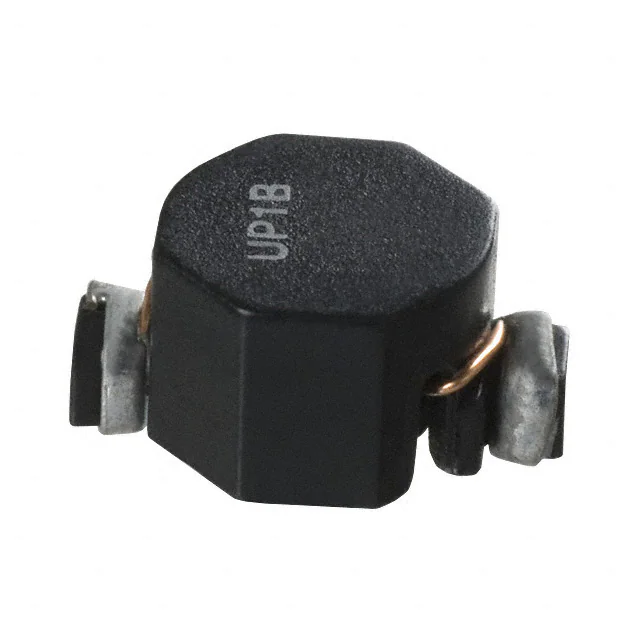

UP1B-220-RFIXED IND 22UH 1A 254.1 MOHM SMD |
13,848 |
|
规格书 |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1 A | 1.2A | Unshielded | 254.1mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.350" L x 0.240" W (8.89mm x 6.10mm) | 0.197" (5.00mm) |
|
ECS-MPI4040R4-2R2-RFIXED IND 2.2UH 3.9A 35 MOHM SMD |
12,995 |
|
规格书 |
ECS-MPI4040 | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±20% | 3.9 A | 5.7A | Shielded | 35mOhm | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
IHLP2020CZER100M01FIXED IND 10UH 2.5A 164 MOHM SMD |
10,898 |
|
规格书 |
IHLP-2020CZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 2.5 A | 4A | Shielded | 164mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.118" (3.00mm) |
|
IHLP1212BZERR22M11FIXED IND 220NH 6.5A 11.4MOHM SM |
6,781 |
|
规格书 |
IHLP-1212BZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 220 nH | ±20% | 6.5 A | 7.5A | Shielded | 11.4mOhm Max | - | 245MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.144" L x 0.118" W (3.65mm x 3.00mm) | 0.079" (2.00mm) |
|
CDRH124NP-6R8MCFIXED IND 6.8UH 4.9A 23 MOHM SMD |
6,127 |
|
规格书 |
CDRH124 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 6.8 µH | ±20% | 4.9 A | - | Shielded | 23mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.177" (4.50mm) |
|
|
IHLP2020CZER1R5M01FIXED IND 1.5UH 7.2A 20.7MOHM SM |
4,475 |
|
规格书 |
IHLP-2020CZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 7.2 A | 11A | Shielded | 20.7mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.118" (3.00mm) |
|
SRP4020TA-6R8MFIXED IND 6.8UH 2.1A 172MOHM SMD |
452 |
|
规格书 |
SRP4020TA | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 6.8 µH | ±20% | 2.1 A | 2.8A | Shielded | 172mOhm Max | 10 @ 100kHz | 24MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 2-SMD | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|

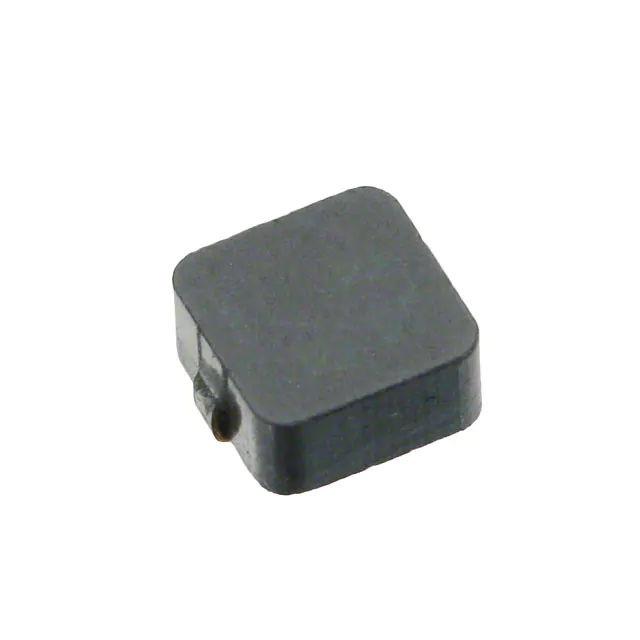

IHLP1212AEERR47M11FIXED IND 470NH 6.7A 15 MOHM SMD |
26,305 |
|
规格书 |
IHLP-1212AE-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 6.7 A | 6.7A | Shielded | 15mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.144" L x 0.118" W (3.65mm x 3.00mm) | 0.059" (1.50mm) |
|
SRP4012TA-4R7MFIXED IND 4.7UH 2A 145 MOHM SMD |
7,685 |
|
规格书 |
SRP4012TA | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 4.7 µH | ±20% | 2 A | 2.5A | Shielded | 145mOhm Max | 10 @ 100kHz | 35MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 2-SMD | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.047" (1.20mm) |
|
|
SRP4020TA-2R2MFIXED IND 2.2UH 4A 61 MOHM SMD |
7,379 |
|
规格书 |
SRP4020TA | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 2.2 µH | ±20% | 4 A | 6A | Shielded | 61mOhm Max | 10 @ 100kHz | 45MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 2-SMD | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
IHLP2525CZER220M1AFIXED IND 22UH 2.9A 135 MOHM SMD |
5,722 |
|
规格书 |
IHLP-2525CZ-1A | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 22 µH | ±20% | 2.9 A | 2.5A | Shielded | 135mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 2-SMD | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|
|
SRP4020TA-R56MFIXED IND 560NH 7.3A 16 MOHM SMD |
3,000 |
|
规格书 |
SRP4020TA | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 560 nH | ±20% | 7.3 A | 10A | Shielded | 16mOhm Max | 10 @ 100kHz | 105MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 2-SMD | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
SRP4020TA-1R0MFIXED IND 1UH 5A 27 MOHM SMD |
2,743 |
|
规格书 |
SRP4020TA | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 1 µH | ±20% | 5 A | 8.5A | Shielded | 27mOhm Max | 10 @ 100kHz | 65MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 2-SMD | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
IHLP2020BZER1R0M01FIXED IND 1UH 7A 20 MOHM SMD |
2,296 |
|
规格书 |
IHLP-2020BZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 7 A | 16A | Shielded | 20mOhm Max | - | 62MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.079" (2.00mm) |
|
|
SRP4020TA-220MFIXED IND 22UH 1.2A 500 MOHM SMD |
1,623 |
|
规格书 |
SRP4020TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 22 µH | ±20% | 1.2 A | 1.4A | Shielded | 500mOhm Max | 10 @ 100kHz | 12MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
IHLP1212BZERR56M11FIXED IND 560NH 5.5A 19.4MOHM SM |
4,844 |
|
规格书 |
IHLP-1212BZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 560 nH | ±20% | 5.5 A | 5.5A | Shielded | 19.4mOhm Max | - | 110MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.144" L x 0.118" W (3.65mm x 3.00mm) | 0.079" (2.00mm) |
|
|
IHLP1212BZER1R5M11FIXED IND 1.5UH 3.8A 32 MOHM SMD |
22,728 |
|
规格书 |
IHLP-1212BZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 3.8 A | 4A | Shielded | 32mOhm Max | - | 70MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.144" L x 0.118" W (3.65mm x 3.00mm) | 0.079" (2.00mm) |
|
SRP7028A-3R3MFIXED IND 3.3UH 6A 30 MOHM SMD |
13,273 |
|
规格书 |
SRP7028A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 3.3 µH | ±20% | 6 A | 12A | Shielded | 30mOhm Max | 20 @ 100kHz | 25MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
|
SRP7028A-100MFIXED IND 10UH 3.5A 85 MOHM SMD |
10,835 |
|
规格书 |
SRP7028A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 10 µH | ±20% | 3.5 A | 6A | Shielded | 85mOhm Max | 20 @ 100kHz | 14MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
