上传BOM
固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7443340100FIXED IND 1UH 17A 3.9 MOHM SMD |
12,507 |
|
规格书 |
WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 17 A | 24A | Shielded | 3.9mOhm Max | - | 147MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.311" W (8.40mm x 7.90mm) | 0.295" (7.50mm) |
|
IHLP5050EZER4R7M01FIXED IND 4.7UH 12A 15 MOHM SMD |
1,401 |
|
规格书 |
IHLP-5050EZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 12 A | 27A | Shielded | 15mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.508" W (13.20mm x 12.90mm) | 0.197" (5.00mm) |
|
|
7443340220FIXED IND 2.2UH 16.5A 5.6MOHM SM |
1,398 |
|
规格书 |
WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 16.5 A | 12.5A | Shielded | 5.6mOhm Max | - | 97MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.311" W (8.40mm x 7.90mm) | 0.295" (7.50mm) |
|
|
7443340330FIXED IND 3.3UH 14A 8.2 MOHM SMD |
981 |
|
规格书 |
WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 14 A | 8.5A | Shielded | 8.2mOhm Max | - | 81MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.311" W (8.40mm x 7.90mm) | 0.295" (7.50mm) |
|
|
7443340680FIXED IND 6.8UH 5.5A 24 MOHM SMD |
713 |
|
规格书 |
WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 5.5 A | 7.5A | Shielded | 24mOhm Max | - | 37MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.311" W (8.40mm x 7.90mm) | 0.295" (7.50mm) |
|
|
7443340470FIXED IND 4.7UH 7.5A 13.5MOHM SM |
563 |
|
规格书 |
WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 7.5 A | 8A | Shielded | 13.5mOhm Max | - | 45MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.311" W (8.40mm x 7.90mm) | 0.295" (7.50mm) |
|
|
7443340150FIXED IND 1.5UH 16.5A 5.6MOHM SM |
511 |
|
规格书 |
WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 16.5 A | 18.5A | Shielded | 5.6mOhm Max | - | 120MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.311" W (8.40mm x 7.90mm) | 0.295" (7.50mm) |
|
|
7443341000FIXED IND 10UH 4.4A 41 MOHM SMD |
467 |
|
规格书 |
WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 4.4 A | 7A | Shielded | 41mOhm Max | - | 29MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.311" W (8.40mm x 7.90mm) | 0.295" (7.50mm) |
|

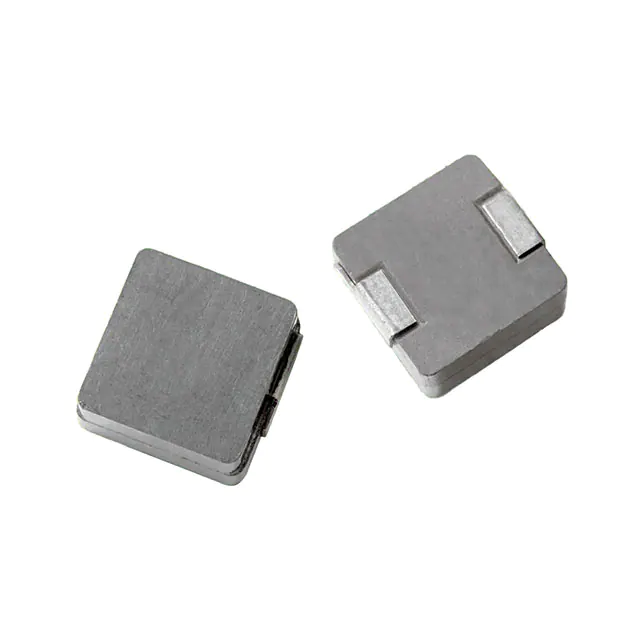

IHLP5050FDER4R7MA1IHLP-5050FD-A1 4.7 20% ER E3 |
398 |
|
规格书 |
IHLP-5050FD-A1 | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 4.7 µH | ±20% | 13.5 A | 30A | Shielded | 11.2mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.525" L x 0.508" W (13.34mm x 12.90mm) | 0.252" (6.40mm) |
|
9250A-105-RCFIXED IND 1MH 70MA 17.5 OHM TH |
2,873 |
|
规格书 |
9250A | Axial | Bulk | Active | Molded | Ferrite | 1 mH | ±10% | 70 mA | 40mA | Shielded | 17.5Ohm Max | 60 @ 790kHz | 3.8MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|

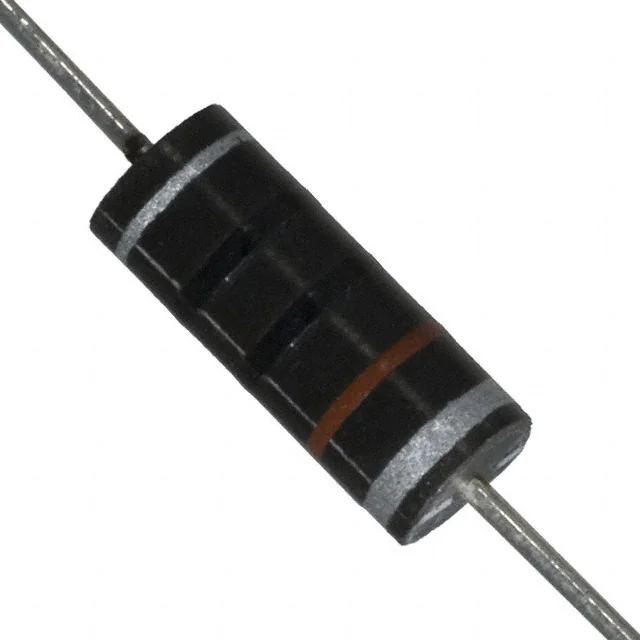

9250A-103-RCFIXED IND 10UH 220MA 1.62 OHM TH |
1,708 |
|
规格书 |
9250A | Axial | Bulk | Active | Molded | Ferrite | 10 µH | ±10% | 220 mA | 220mA | Shielded | 1.62Ohm Max | 50 @ 7.9MHz | 46MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|

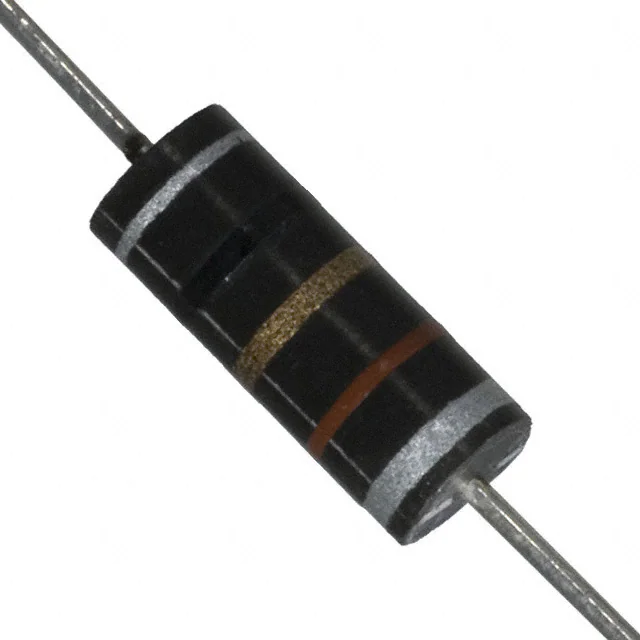

9250A-102-RCFIXED IND 1UH 1.07A 70 MOHM TH |
1,267 |
|
规格书 |
9250A | Axial | Bulk | Active | Molded | Ferrite | 1 µH | ±10% | 1.07 A | 1.07A | Shielded | 70mOhm Max | 40 @ 25MHz | 140MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
8230-02-RCFIXED IND 180NH 1.01A 120MOHM TH |
936 |
|
规格书 |
8230 | Axial | Bulk | Active | Wirewound | Phenolic | 180 nH | ±10% | 1.01 A | - | Unshielded | 120mOhm Max | 35 @ 25MHz | 550MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|

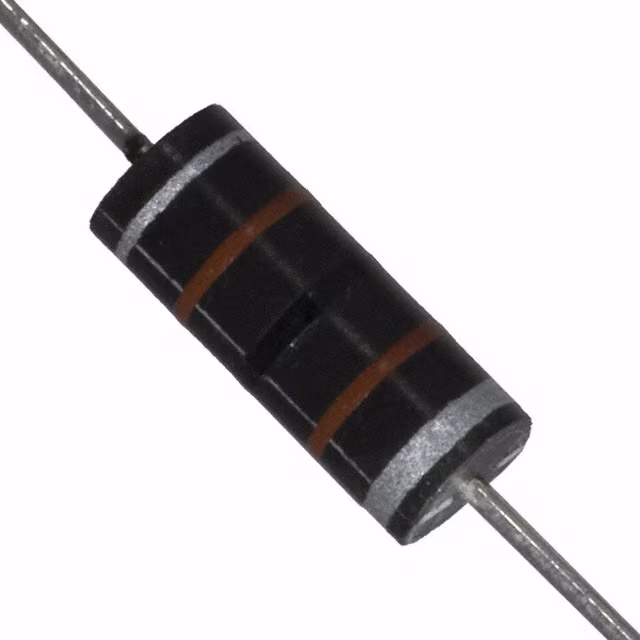

9250A-104-RCFIXED IND 100UH 160MA 3.12OHM TH |
861 |
|
规格书 |
9250A | Axial | Bulk | Active | Molded | Ferrite | 100 µH | ±10% | 160 mA | 120mA | Shielded | 3.12Ohm Max | 50 @ 2.5MHz | 10MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|

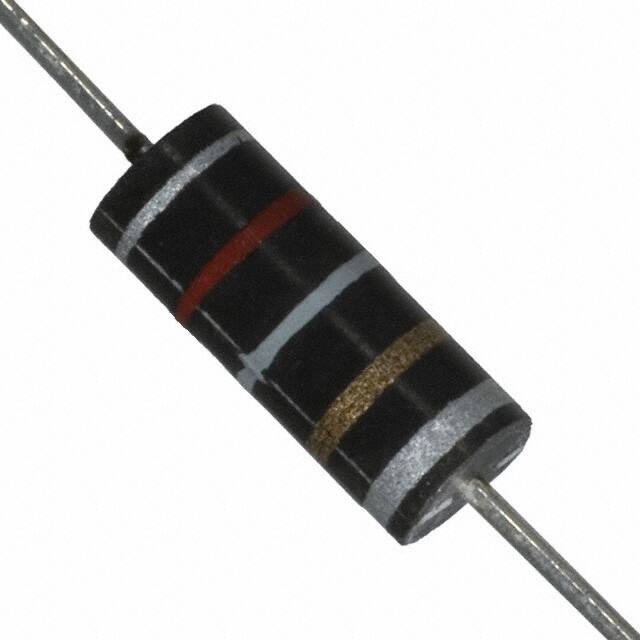

9250A-821-RCFIXED IND 820NH 370MA 590MOHM TH |
664 |
|
规格书 |
9250A | Axial | Bulk | Active | Molded | Ferrite | 820 nH | ±10% | 370 mA | 370mA | Shielded | 590mOhm Max | 50 @ 25MHz | 180MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|

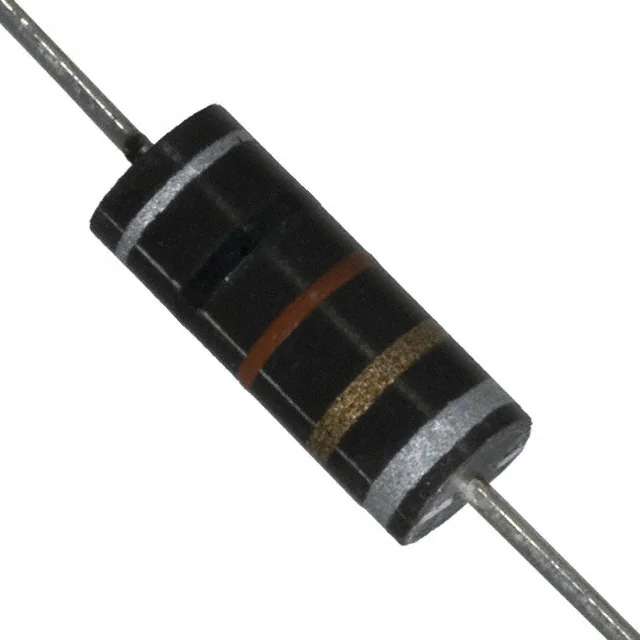

9250A-101-RCFIXED IND 100NH 1.79A 25 MOHM TH |
372 |
|
规格书 |
9250A | Axial | Bulk | Active | Molded | Ferrite | 100 nH | ±10% | 1.79 A | 1.79A | Shielded | 25mOhm Max | 50 @ 25MHz | 250MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|

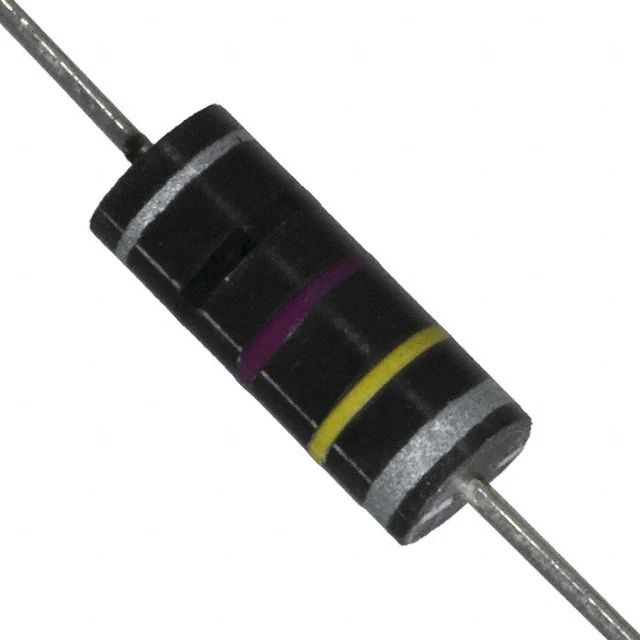

9250A-473-RCFIXED IND 47UH 195MA 2.11 OHM TH |
356 |
|
规格书 |
9250A | Axial | Bulk | Active | Molded | Ferrite | 47 µH | ±10% | 195 mA | 175mA | Shielded | 2.11Ohm Max | 50 @ 2.5MHz | 27MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
74456215FIXED IND 150UH 1A 590 MOHM SMD |
326 |
|
规格书 |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 1 A | 1.2A | Unshielded | 590mOhm Max | - | 5.3MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.209" (5.30mm) |
|

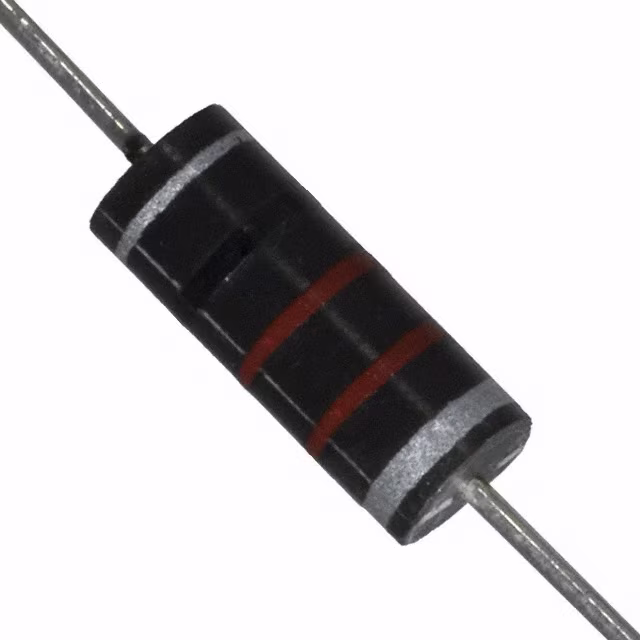

9250A-223-RCFIXED IND 22UH 290MA 960 MOHM TH |
288 |
|
规格书 |
9250A | Axial | Bulk | Active | Molded | Ferrite | 22 µH | ±10% | 290 mA | 220mA | Shielded | 960mOhm Max | 45 @ 2.5MHz | 41MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
IHLP2525EZER3R3M01FIXED IND 3.3UH 8A 20.9 MOHM SMD |
3,553 |
|
规格书 |
IHLP-2525EZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 3.3 µH | ±20% | 8 A | 8A | Shielded | 20.9mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.197" (5.00mm) |
