固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
2-2176075-3FIXED IND 2.3NH 150MA 800MOHM SM TE Connectivity Passive Product |
0 |
|
规格书 |
3640, Sigma Inductors | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 2.3 nH | ±0.2nH | 150 mA | - | Unshielded | 800mOhm Max | 8 @ 500MHz | 8GHz | - | - | 500 MHz | - | Surface Mount | 0201 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - |
|
|
2-2176075-5FIXED IND 2.5NH 150MA 800MOHM SM TE Connectivity Passive Product |
0 |
|
规格书 |
3640, Sigma Inductors | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 2.5 nH | ±0.2nH | 150 mA | - | Unshielded | 800mOhm Max | 8 @ 500MHz | 8GHz | - | - | 500 MHz | - | Surface Mount | 0201 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - |
|
|
2-2176075-7FIXED IND 2.7NH 150MA 800MOHM SM TE Connectivity Passive Product |
0 |
|
规格书 |
3640, Sigma Inductors | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 2.7 nH | ±0.2nH | 150 mA | - | Unshielded | 800mOhm Max | 8 @ 500MHz | 8GHz | - | - | 500 MHz | - | Surface Mount | 0201 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - |
|
|
2176075-3FIXED IND 0.3NH 400MA 200MOHM SM TE Connectivity Passive Product |
0 |
|
规格书 |
3640, Sigma Inductors | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 0.3 nH | ±0.2nH | 400 mA | - | Unshielded | 200mOhm Max | 8 @ 500MHz | 9GHz | - | - | 500 MHz | - | Surface Mount | 0201 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - |
|
|
2176075-2FIXED IND 0.2NH 400MA 200MOHM SM TE Connectivity Passive Product |
0 |
|
规格书 |
3640, Sigma Inductors | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 0.2 nH | ±0.2nH | 400 mA | - | Unshielded | 200mOhm Max | 8 @ 500MHz | 9GHz | - | - | 500 MHz | - | Surface Mount | 0201 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - |
.jpg)
|
36401E0N8ATDFFIXED IND 0.8NH 700MA 150MOHM SM TE Connectivity Passive Product |
5,335 |
|
规格书 |
3640, Sigma Inductors | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 0.8 nH | ±0.2nH | 700 mA | - | Unshielded | 150mOhm Max | 13 @ 500MHz | 14GHz | - | - | 500 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.015" (0.37mm) |
|
36502C8R2JTDGFIXED IND 8.2UH 170MA 6 OHM SMD TE Connectivity Passive Product |
0 |
|
规格书 |
3650, Sigma Inductors | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 8.2 µH | ±5% | 170 mA | - | Unshielded | 6Ohm Max | 15 @ 7.96MHz | 25MHz | AEC-Q200 | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.083" (2.10mm) |
|
3625B331KTFIXED IND 330UH 620MA 950MOHM SM TE Connectivity Passive Product |
0 |
|
规格书 |
3625, Sigma Inductors | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 330 µH | ±10% | 620 mA | 700mA | Unshielded | 950mOhm Max | 12 @ 796kHz | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.189" (4.80mm) |
|
|
3632B103LTFIXED IND 10MH 95MA 26 OHM SMD TE Connectivity Passive Product |
6,000 |
|
规格书 |
3632, Sigma Inductors | 8-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 mH | ±15% | 95 mA | - | Shielded | 26Ohm Max | 110 @ 79.6kHz | 500kHz | - | -25°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.413" L x 0.374" W (10.50mm x 9.50mm) | 0.307" (7.80mm) |
|

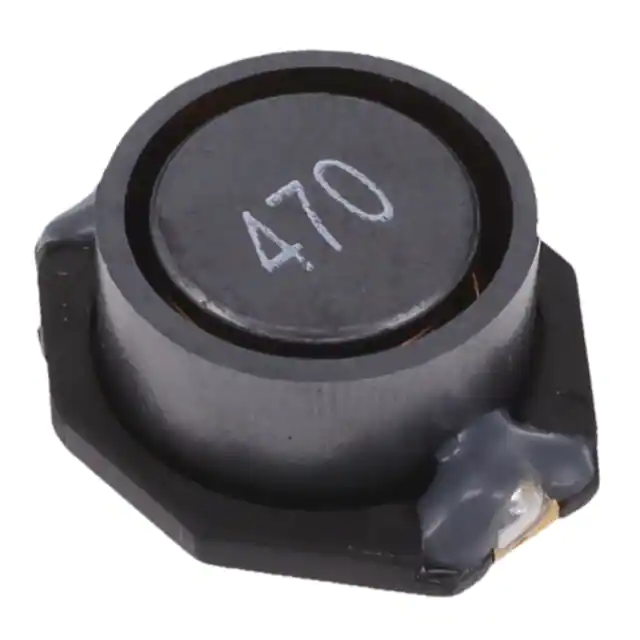

MGDS5-00005-PFIXED IND 47UH 2.4A 97 MOHM SMD TE Connectivity Passive Product |
998 |
|
规格书 |
MGDS5, Coev | Nonstandard | Tape & Reel (TR) | Active | - | - | 47 µH | ±20% | 2.4 A | 4A | Shielded | 97mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.25mm) | 0.300" (7.62mm) |
