固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FP1007R3-R17-RFIXED IND 175NH 61A 0.29MOHM SMD |
16,933 |
|
规格书 |
FLAT-PAC, FP1007 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 175 nH | ±10% | 61 A | 66A | Unshielded | 0.29mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.307" W (10.20mm x 7.80mm) | 0.295" (7.50mm) |
|
744773122FIXED IND 22UH 1A 370 MOHM SMD |
12,203 |
|
规格书 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1 A | 1.22A | Unshielded | 370mOhm Max | - | 20MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
MPI4020V2-1R0-RFIXED IND 1UH 6.5A 24 MOHM SMD |
11,347 |
|
规格书 |
MPI40-V2 | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 1 µH | ±20% | 6.5 A | 7A | Shielded | 24mOhm Max | - | 65MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.160" L x 0.171" W (4.06mm x 4.35mm) | 0.079" (2.00mm) |
|
744773033FIXED IND 3.3UH 2A 86 MOHM SMD |
10,394 |
|
规格书 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 2 A | 2.88A | Unshielded | 86mOhm Max | - | 65MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
7447730FIXED IND 1UH 4A 49 MOHM SMD |
7,184 |
|
规格书 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 4 A | 5.72A | Unshielded | 49mOhm Max | - | 110MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
744773147FIXED IND 47UH 680MA 844MOHM SMD |
5,815 |
|
规格书 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 680 mA | 770mA | Unshielded | 844mOhm Max | - | 17MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
|
744773022FIXED IND 2.2UH 2.5A 71 MOHM SMD |
5,138 |
|
规格书 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 2.5 A | 3.38A | Unshielded | 71mOhm Max | - | 85MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
744773112FIXED IND 12UH 1.28A 210MOHM SMD |
3,344 |
|
规格书 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 1.28 A | 1.62A | Unshielded | 210mOhm Max | - | 32MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
744773168FIXED IND 68UH 560MA 1.117OHM SM |
2,905 |
|
规格书 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 560 mA | 680mA | Unshielded | 1.117Ohm Max | - | 13MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|

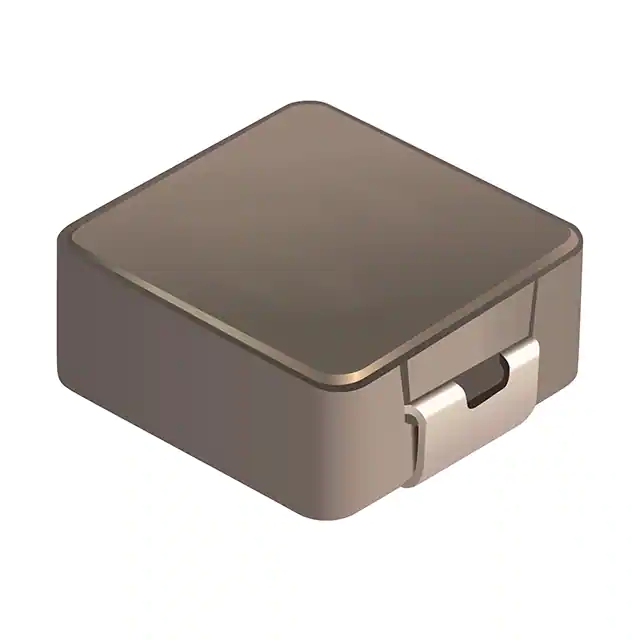

SRP6030VA-100MFIXED IND 10UH 5A 68 MOHM SMD |
2,764 |
|
规格书 |
SRP6030VA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 10 µH | ±20% | 5 A | 5A | Shielded | 68mOhm Max | 10 @ 100kHz | 12MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
744773047FIXED IND 4.7UH 1.82A 110MOHM SM |
2,526 |
|
规格书 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.82 A | 2.46A | Unshielded | 110mOhm Max | - | 50MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
|
SRP6030VA-6R8MFIXED IND 6.8UH 6A 50 MOHM SMD |
1,401 |
|
规格书 |
SRP6030VA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 6.8 µH | ±20% | 6 A | 6.5A | Shielded | 50mOhm Max | 10 @ 100kHz | 15MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
744773133FIXED IND 33UH 860MA 540MOHM SMD |
1,122 |
|
规格书 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 860 mA | 900mA | Unshielded | 540mOhm Max | - | 20MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
|
744773068FIXED IND 6.8UH 1.54A 131MOHM SM |
899 |
|
规格书 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.54 A | 2.1A | Unshielded | 131mOhm Max | - | 41MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
744773118FIXED IND 18UH 1.1A 338 MOHM SMD |
875 |
|
规格书 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±10% | 1.1 A | 1.29A | Unshielded | 338mOhm Max | - | 23MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
RL181S-104J-RCFIXED IND 100MH 9MA 82 OHM TH |
13,004 |
|
规格书 |
RL181S | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 mH | ±5% | 9 mA | - | Shielded | 82Ohm Max | 100 @ 50kHz | 90kHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.413" Dia (10.50mm) | 0.551" (14.00mm) |
|
|
RL181S-393J-RCFIXED IND 39MH 15MA 45 OHM TH |
826 |
|
规格书 |
RL181S | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 39 mH | ±5% | 15 mA | - | Shielded | 45Ohm Max | 100 @ 50kHz | 120kHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.413" Dia (10.50mm) | 0.551" (14.00mm) |
|
|
RL181S-103J-RCFIXED IND 10MH 25MA 12.1 OHM TH |
752 |
|
规格书 |
RL181S | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 mH | ±5% | 25 mA | - | Shielded | 12.1Ohm Max | 100 @ 50kHz | 250kHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.413" Dia (10.50mm) | 0.551" (14.00mm) |
|
|
RL181S-333J-RCFIXED IND 33MH 17MA 26 OHM TH |
724 |
|
规格书 |
RL181S | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 33 mH | ±5% | 17 mA | - | Shielded | 26Ohm Max | 100 @ 50kHz | 160kHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.413" Dia (10.50mm) | 0.551" (14.00mm) |
|
|
RL181S-222J-RCFIXED IND 2.2MH 60MA 5.2 OHM TH |
211 |
|
规格书 |
RL181S | Radial, Vertical Cylinder | Tube | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±5% | 60 mA | - | Shielded | 5.2Ohm Max | 70 @ 50kHz | 510kHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.413" Dia (10.50mm) | 0.551" (14.00mm) |
