固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744383360047FIXED IND 470NH 4.8A 22 MOHM SMD |
4,523 |
|
规格书 |
WE-MAPI | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 470 nH | ±20% | 4.8 A | 8A | Shielded | 22mOhm Max | - | 99MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3020 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.079" (2.00mm) |
|
|
74438336015FIXED IND 1.5UH 3.7A 39 MOHM SMD |
3,765 |
|
规格书 |
WE-MAPI | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 1.5 µH | ±20% | 3.7 A | 4.5A | Shielded | 39mOhm Max | - | 51MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3020 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.079" (2.00mm) |
|
SLF12565T-101M1R6-PFFIXED IND 100UH 1.9A 148MOHM SMD |
2,423 |
|
规格书 |
SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1.9 A | 1.6A | Shielded | 148mOhm Max | - | - | - | -20°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.270" (6.85mm) |
|
|
74438336012FIXED IND 1.2UH 3.9A 36 MOHM SMD |
1,597 |
|
规格书 |
WE-MAPI | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 1.2 µH | ±20% | 3.9 A | 4.75A | Shielded | 36mOhm Max | - | 57MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3020 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.079" (2.00mm) |
|
DD1274AS-H-220M=P3FIXED IND 22UH 2.9A 68.1MOHM SMD |
1,321 |
|
规格书 |
DEM10050C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 2.9 A | 5.6A | Shielded | 68.1mOhm Max | - | - | AEC-Q200 | - | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.197" (5.00mm) |
|
ETQ-P5M150YFCFIXED IND 15UH 7A 39.16MOHM SMD |
1,270 |
|
规格书 |
PCC-M1054M | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 15 µH | ±20% | 7 A | 12A | Shielded | 39.16mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.421" L x 0.394" W (10.70mm x 10.00mm) | 0.213" (5.40mm) |
|
|
DD1274AS-H-3R3N=P3FIXED IND 3.3UH 7.4A 11.4MOHM SM |
1,233 |
|
规格书 |
DEM10050C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 7.4 A | 14.4A | Shielded | 11.4mOhm Max | - | - | AEC-Q200 | - | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.197" (5.00mm) |
|
B82464A4223K000FIXED IND 22UH 2.1A 85 MOHM SMD |
11,150 |
|
规格书 |
B82464A4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 2.1 A | 2.6A | Unshielded | 85mOhm Max | - | 100kHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
744053101FIXED IND 100UH 450MA 480MOHM SM |
3,404 |
|
规格书 |
WE-TPC | 2323 (5858 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±30% | 450 mA | 450mA | Shielded | 480mOhm Max | - | 10MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.118" (3.00mm) |
|

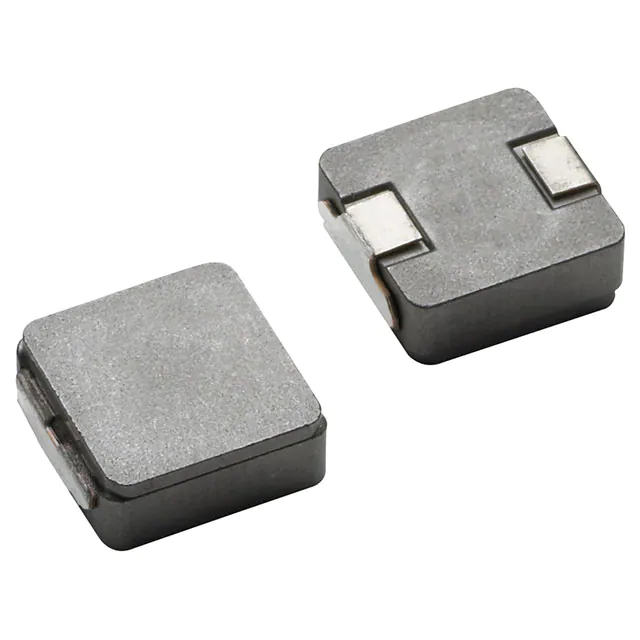

IHLP4040DZER101M1AIHLP-4040DZ-1A 100 20% ER E3 |
3,020 |
|
规格书 |
IHLP-4040DZ-1A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 100 µH | ±20% | 2.5 A | 2.25A | Shielded | 270mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.157" (4.00mm) |
|
|
744053220FIXED IND 22UH 1.15A 120MOHM SMD |
2,929 |
|
规格书 |
WE-TPC | 2323 (5858 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±30% | 1.15 A | 900mA | Shielded | 120mOhm Max | - | 20MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.118" (3.00mm) |
|
|
744053008FIXED IND 8.2UH 2.1A 55 MOHM SMD |
1,344 |
|
规格书 |
WE-TPC | 2323 (5858 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±30% | 2.1 A | 1.6A | Shielded | 55mOhm Max | - | 28MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.118" (3.00mm) |
|
|
744053330FIXED IND 33UH 900MA 190MOHM SMD |
1,309 |
|
规格书 |
WE-TPC | 2323 (5858 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±30% | 900 mA | 750mA | Shielded | 190mOhm Max | - | 15MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.118" (3.00mm) |
|
SRR1210A-220MFIXED IND 22UH 5.2A 38 MOHM SMD |
1,032 |
|
规格书 |
SRR1210A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±20% | 5.2 A | 4.5A | Shielded | 38mOhm Max | 16 @ 2.52MHz | 8MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|
|
744053221FIXED IND 220UH 300MA 1.25OHM SM |
434 |
|
规格书 |
WE-TPC | 2323 (5858 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±30% | 300 mA | 290mA | Shielded | 1.25Ohm Max | - | 6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.118" (3.00mm) |
|
SRP5030TA-3R3MFIXED IND 3.3UH 5A 38 MOHM SMD |
12,698 |
|
规格书 |
SRP5030TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 3.3 µH | ±20% | 5 A | 8A | Shielded | 38mOhm Max | 15 @ 100kHz | 30MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.118" (3.00mm) |
|
|
SRP5030TA-1R5MFIXED IND 1.5UH 6A 25 MOHM SMD |
12,655 |
|
规格书 |
SRP5030TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 1.5 µH | ±20% | 6 A | 10A | Shielded | 25mOhm Max | 10 @ 100kHz | 44MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.118" (3.00mm) |
|
|
SRP5030TA-4R7MFIXED IND 4.7UH 4.6A 53 MOHM SMD |
9,721 |
|
规格书 |
SRP5030TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 4.7 µH | ±20% | 4.6 A | 6A | Shielded | 53mOhm Max | 15 @ 100kHz | 23MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.118" (3.00mm) |
|
|
SRP5030TA-2R2MFIXED IND 2.2UH 5.5A 35 MOHM SMD |
5,585 |
|
规格书 |
SRP5030TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 2.2 µH | ±20% | 5.5 A | 9A | Shielded | 35mOhm Max | 15 @ 100kHz | 36MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.118" (3.00mm) |
|
B82472P6105M000FIXED IND 1MH 200MA 3.85 OHM SMD |
3,561 |
|
规格书 |
B82472P6 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 200 mA | 150mA | Shielded | 3.85Ohm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
