固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LPWI201610TBR47TFIXED IND 470NH 4.8A 27MOHM SMD Littelfuse Inc. |
0 |
|
规格书 |
LPWI | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | Metal Composite | 470 nH | ±20% | 4.8 A | 5.7A | Shielded | 27mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
.jpg)
|
LPWI201610SR47TFIXED IND 470NH 3.8A 40 MOHM SMD Littelfuse Inc. |
0 |
|
规格书 |
LPWI | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | Metal Composite | 470 nH | ±20% | 3.8 A | 4A | Shielded | 40mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
LPWI201610SR68TFIXED IND 680NH 3.5A 50 MOHM SMD Littelfuse Inc. |
0 |
|
规格书 |
LPWI | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | Metal Composite | 680 nH | ±20% | 3.5 A | 3.7A | Shielded | 50mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
LPWI201610S1R0TFIXED IND 1UH 3.1A 65 MOHM SMD Littelfuse Inc. |
0 |
|
规格书 |
LPWI | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | Metal Composite | 1 µH | ±20% | 3.1 A | 3.1A | Shielded | 65mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
LPWI201610S2R2TFIXED IND 2.2UH 1.7A 150MOHM SMD Littelfuse Inc. |
0 |
|
规格书 |
LPWI | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | Metal Composite | 2.2 µH | ±20% | 1.7 A | 1.5A | Shielded | 150mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
.jpg)
|
LPWI252010SR33TFIXED IND 330NH 5.8A 25 MOHM SMD Littelfuse Inc. |
0 |
|
规格书 |
LPWI | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | Metal Composite | 330 nH | ±20% | 5.8 A | 6.3A | Shielded | 25mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
LPWI252010SR47TFIXED IND 470NH 4.1A 30 MOHM SMD Littelfuse Inc. |
0 |
|
规格书 |
LPWI | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | Metal Composite | 470 nH | ±20% | 4.1 A | 5.5A | Shielded | 30mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
LPWI252010S1R5TFIXED IND 1.5UH 2.8A 80 MOHM SMD Littelfuse Inc. |
0 |
|
规格书 |
LPWI | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | Metal Composite | 1.5 µH | ±20% | 2.8 A | 3.1A | Shielded | 80mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
LPWI252010HR47TFIXED IND 470NH 5.2A 27 MOHM SMD Littelfuse Inc. |
0 |
|
规格书 |
LPWI | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | Metal Composite | 470 nH | ±20% | 5.2 A | 6A | Shielded | 27mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|

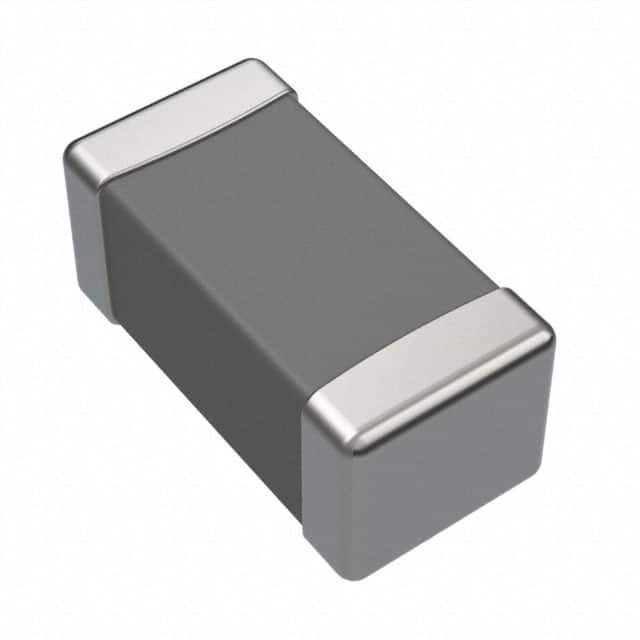

LPWI160808S1R0TFIXED IND 1UH 1.7A 150 MOHM SMD Littelfuse Inc. |
0 |
|
规格书 |
LPWI | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | Metal Composite | 1 µH | ±20% | 1.7 A | 1.7A | Shielded | 150mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.031" (0.80mm) |
