固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XFHCL6-R22MFIXED IND 220NH 23A 2.8 MOHM SMD XFMRS |
1,000 |
|
规格书 |
XFHCL6 | - | Tape & Reel (TR) | Active | Molded | - | 220 nH | ±20% | 23 A | 40A | Shielded | 2.8mOhm Max | - | 126MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
XFHCL6-1R5MFIXED IND 1.5UH 9A 15 MOHM SMD XFMRS |
1,000 |
|
规格书 |
XFHCL6 | - | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 9 A | 18A | Shielded | 15mOhm Max | - | 40MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
XFHCL6-R47MFIXED IND 470NH 17A 4.2 MOHM SMD XFMRS |
1,000 |
|
规格书 |
XFHCL6 | - | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 17 A | 26A | Shielded | 4.2mOhm Max | - | 75MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|

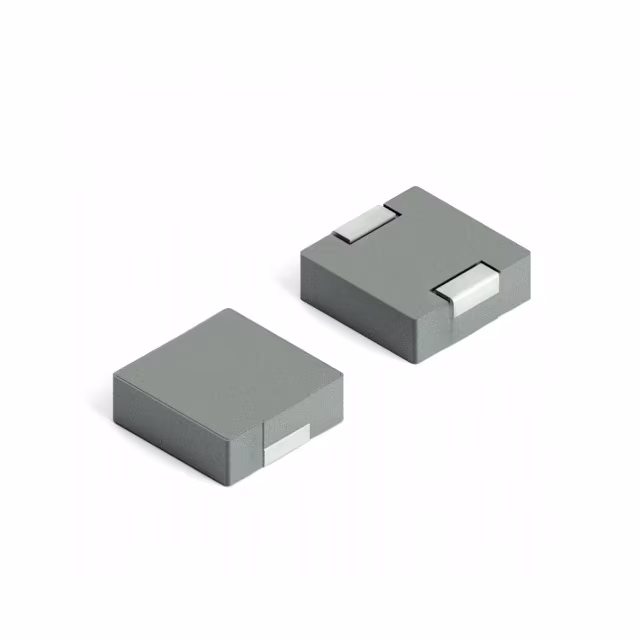

XFHCL6-R82MFIXED IND 820NH 16A 8 MOHM SMD XFMRS |
1,000 |
|
规格书 |
XFHCL6 | - | Tape & Reel (TR) | Active | Molded | - | 820 nH | ±20% | 16 A | 24A | Shielded | 8mOhm Max | - | 60MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
XFHCL6-R15MFIXED IND 150NH 26A 2.5 MOHM SMD XFMRS |
1,000 |
|
规格书 |
XFHCL6 | - | Tape & Reel (TR) | Active | Molded | - | 150 nH | ±20% | 26 A | 52A | Shielded | 2.5mOhm Max | - | 180MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
XFHCL6-3R3MFIXED IND 3.3UH 6A 30 MOHM SMD XFMRS |
1,000 |
|
规格书 |
XFHCL6 | - | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 6 A | 13.5A | Shielded | 30mOhm Max | - | 30MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
XFHCL6-100MFIXED IND 10UH 3A 105 MOHM SMD XFMRS |
1,000 |
|
规格书 |
XFHCL6 | - | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 3 A | 7A | Shielded | 105mOhm Max | - | 16MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
XFHCL6-2R2MFIXED IND 2.2UH 8A 20 MOHM SMD XFMRS |
790 |
|
规格书 |
XFHCL6 | - | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 8 A | 14A | Shielded | 20mOhm Max | - | 38MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
XFHCL6-4R7MFIXED IND 4.7UH 5.5A 40 MOHM SMD XFMRS |
940 |
|
规格书 |
XFHCL6 | - | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 5.5 A | 10A | Shielded | 40mOhm Max | - | 25MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
XFHCL6-220MFIXED IND 22UH 2.5A 135 MOHM SMD XFMRS |
1,000 |
|
规格书 |
XFHCL6 | - | Tape & Reel (TR) | Active | Molded | - | 22 µH | ±20% | 2.5 A | 3.5A | Shielded | 135mOhm Max | - | 14MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
