固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74437336022FIXED IND 2.2UH 4.9A 0.035OHM SM Würth Elektronik |
6,263 |
|
规格书 |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 2.2 µH | ±20% | 4.9 A | 14A | Shielded | 35mOhm Max | - | 42MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5030 | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.118" (3.00mm) |
|
744316330FIXED IND 3.3UH 5.75A 18.5 MOHM Würth Elektronik |
3,084 |
|
规格书 |
WE-HCI | 2-SMD | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±20% | 5.75 A | 5.8A | Shielded | 18.5mOhm | - | 66MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 5040 | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.169" (4.30mm) |
|
|
744316150FIXED IND 1.5UH 9A 8.15 MOHM SMD Würth Elektronik |
2,774 |
|
规格书 |
WE-HCI | 2-SMD | Tape & Reel (TR) | Active | Wirewound | - | 1.5 µH | ±20% | 9 A | 9A | Shielded | 8.15mOhm | - | 110MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 5040 | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.169" (4.30mm) |
|
|
74437336010FIXED IND 1UH 7.3A 0.014OHM SMD Würth Elektronik |
2,150 |
|
规格书 |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 1 µH | ±20% | 7.3 A | 14.2A | Shielded | 14mOhm Max | - | 60MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5030 | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.118" (3.00mm) |
|
|
744316560FIXED IND 5.6UH 4.5A 28.5MOHM SM Würth Elektronik |
565 |
|
规格书 |
WE-HCI | 2-SMD | Tape & Reel (TR) | Active | Wirewound | - | 5.6 µH | ±20% | 4.5 A | 4.6A | Shielded | 28.5mOhm | - | 48MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 5040 | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.169" (4.30mm) |
|
|
744316022FIXED IND 220NH 20A 1.25MOHM SMD Würth Elektronik |
174 |
|
规格书 |
WE-HCI | 2-SMD | Tape & Reel (TR) | Active | Wirewound | - | 220 nH | ±20% | 20 A | 25A | Shielded | 1.25mOhm | - | 507MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 5040 | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.169" (4.30mm) |
|

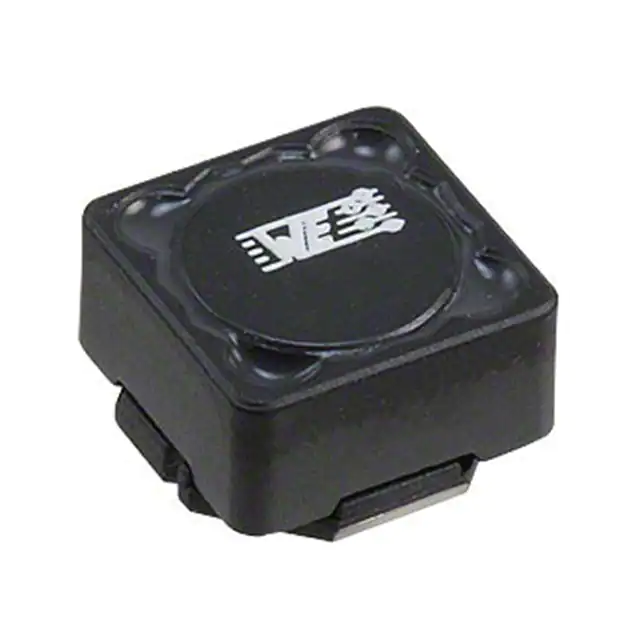

7687714102FIXED IND 1MH 400MA 3.2 OHM SMD Würth Elektronik |
164 |
|
规格书 |
WE-PD HV | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 mH | ±20% | 400 mA | 550mA | Shielded | 3.2Ohm Max | - | 1.7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.236" (6.00mm) |
|

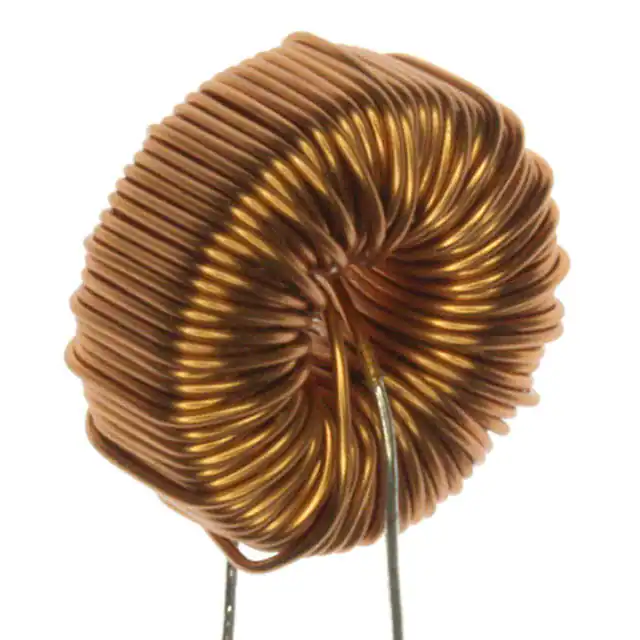

7447010FIXED IND 470UH 1A 225 MOHM TH Würth Elektronik |
587 |
|
规格书 |
WE-FI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | 470 µH | ±20% | 1.6 A | - | Unshielded | 225mOhm Max | - | - | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.728" Dia x 0.374" W (18.50mm x 9.50mm) | - |
|

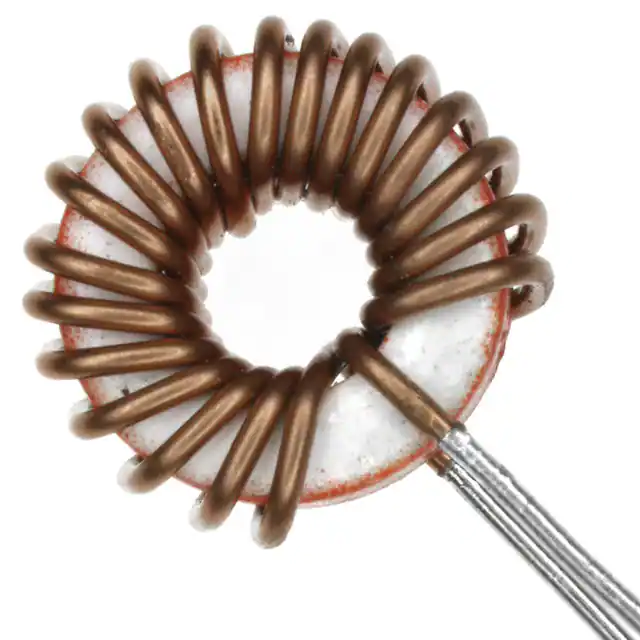

7447017FIXED IND 22UH 5A 15 MOHM TH Würth Elektronik |
279 |
|
规格书 |
WE-FI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | 22 µH | ±20% | 5 A | - | Unshielded | 15mOhm Max | - | - | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.748" Dia x 0.413" W (19.00mm x 10.50mm) | - |
|
74439344012FIXED IND 1.2UH 10.3A 6.4MOHM SM Würth Elektronik |
943 |
|
规格书 |
WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 1.2 µH | ±20% | 10.3 A | 26A | Shielded | 6.4mOhm | - | 55MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.262" L x 0.254" W (6.65mm x 6.45mm) | 0.130" (3.30mm) |
