固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

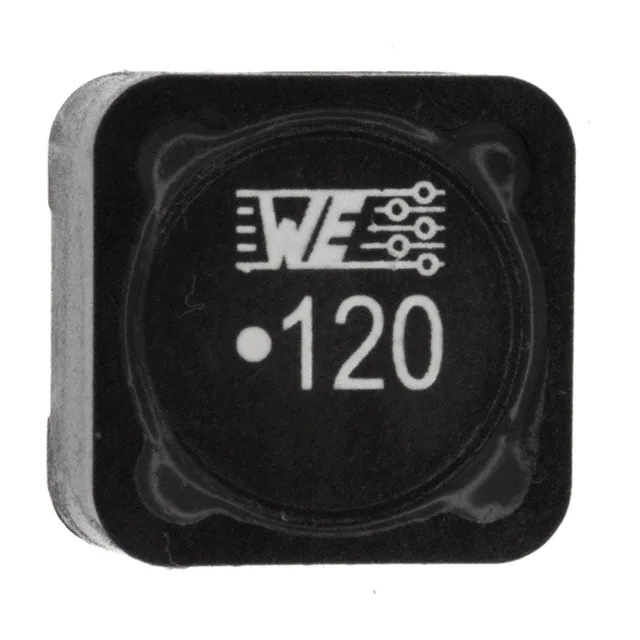

744770112FIXED IND 12UH 5.9A 24 MOHM SMD Würth Elektronik |
760 |
|
规格书 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 5.9 A | 6.3A | Shielded | 24mOhm Max | - | 16MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|

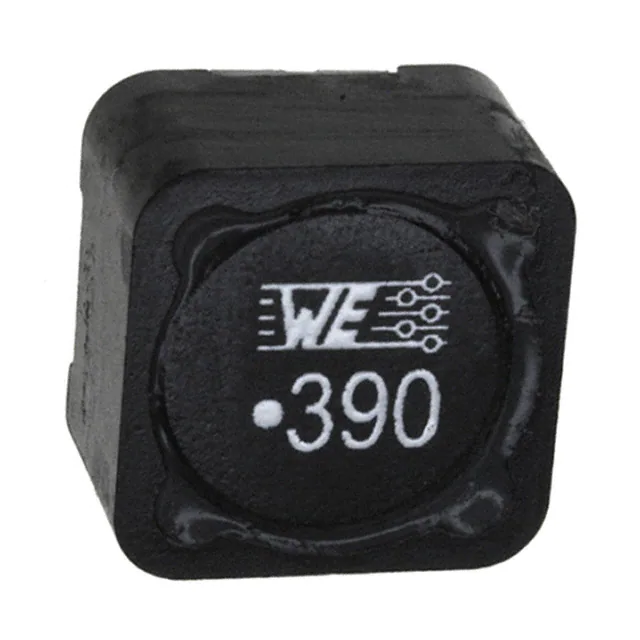

744770139FIXED IND 39UH 3A 73 MOHM SMD Würth Elektronik |
699 |
|
规格书 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±20% | 3 A | 3.5A | Shielded | 73mOhm Max | - | 8.2MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
7443330100FIXED IND 1UH 20A 2.65 MOHM SMD Würth Elektronik |
640 |
|
规格书 |
WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 20 A | 27.5A | Shielded | 2.65mOhm Max | - | 100MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.429" L x 0.394" W (10.90mm x 10.00mm) | 0.382" (9.70mm) |
|

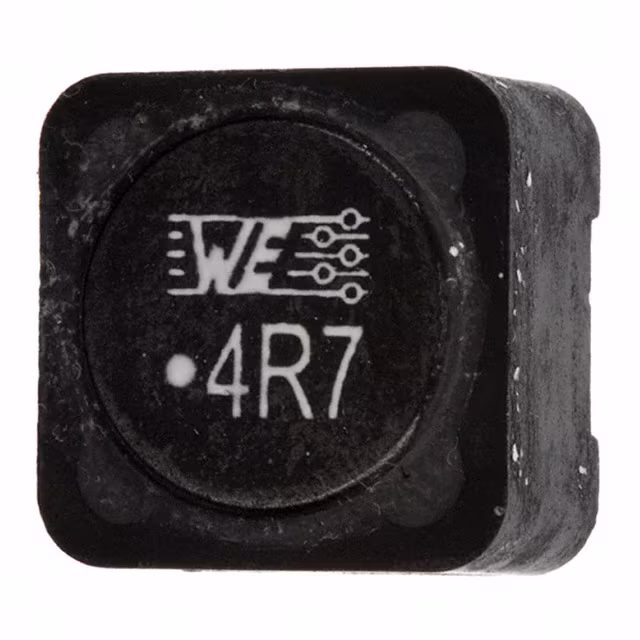

74477004FIXED IND 4.7UH 8.5A 16 MOHM SMD Würth Elektronik |
550 |
|
规格书 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | -20%, +40% | 8.5 A | 9.3A | Shielded | 16mOhm Max | - | 31.2MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
7443330150FIXED IND 1.5UH 18A 4 MOHM SMD Würth Elektronik |
439 |
|
规格书 |
WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 18 A | 27A | Shielded | 4mOhm Max | - | 78MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.429" L x 0.394" W (10.90mm x 10.00mm) | 0.382" (9.70mm) |
|

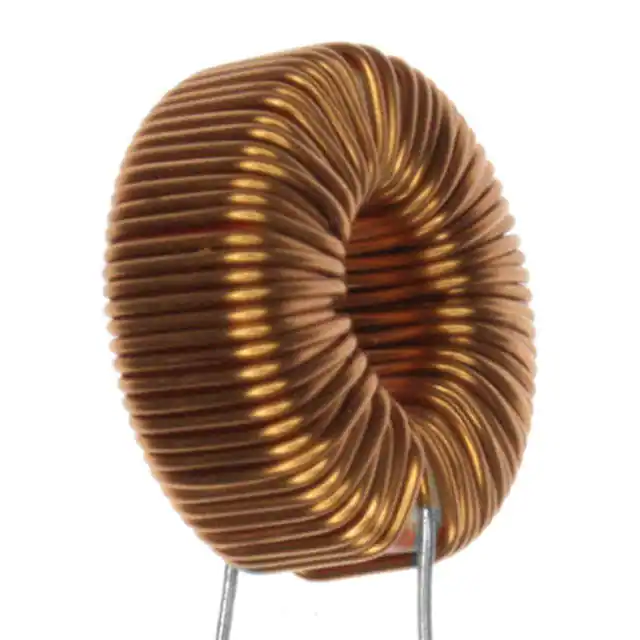

7447060FIXED IND 300UH 2A 150 MOHM TH Würth Elektronik |
270 |
|
规格书 |
WE-FI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | 300 µH | ±20% | 2 A | - | Unshielded | 150mOhm Max | - | - | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.827" Dia x 0.433" L (21.00mm x 11.00mm) | - |
|

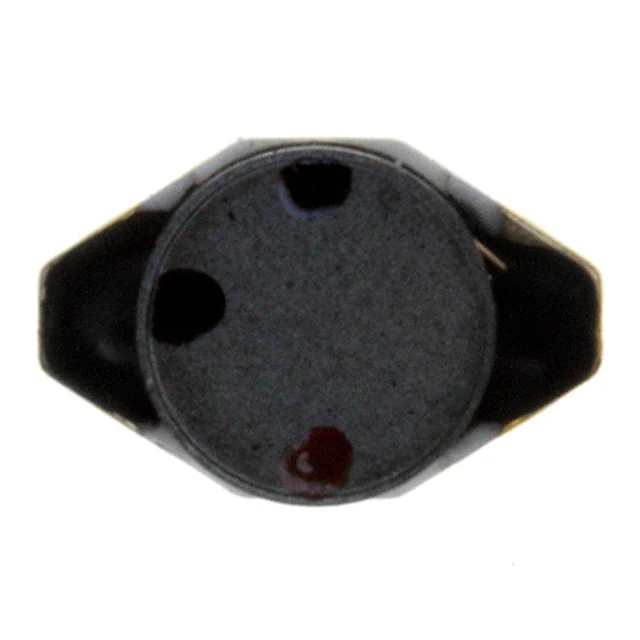

7445510FIXED IND 10UH 1.2A 160 MOHM SMD Würth Elektronik |
10,264 |
|
规格书 |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.2 A | 1.1A | Unshielded | 160mOhm Max | - | 26MHz | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|

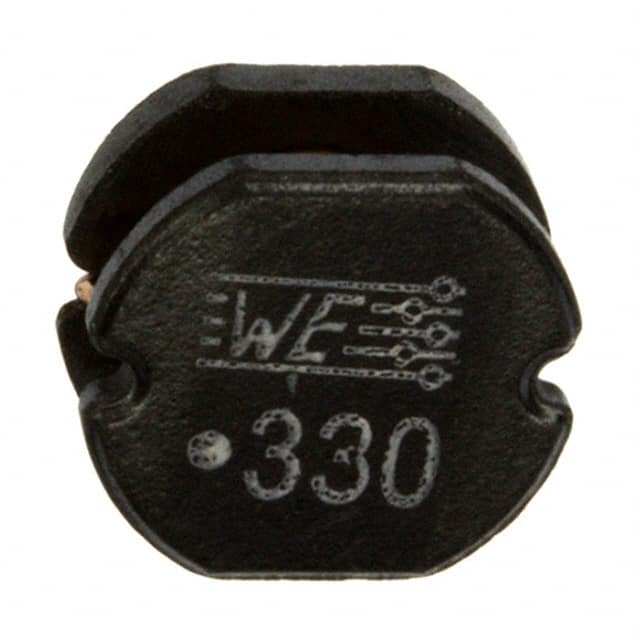

744776133FIXED IND 33UH 1.78A 120MOHM SMD Würth Elektronik |
1,359 |
|
规格书 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.78 A | 1.89A | Unshielded | 120mOhm Max | - | 13MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.232" (5.90mm) |
|

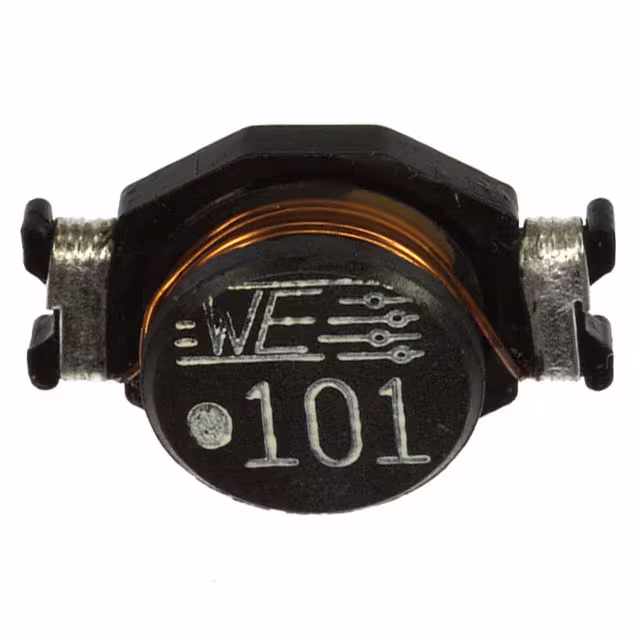

7445720FIXED IND 100UH 2A 202 MOHM SMD Würth Elektronik |
980 |
|
规格书 |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 2 A | 3A | Unshielded | 202mOhm Max | - | 6.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.866" L x 0.591" W (22.00mm x 15.00mm) | 0.307" (7.80mm) |
|

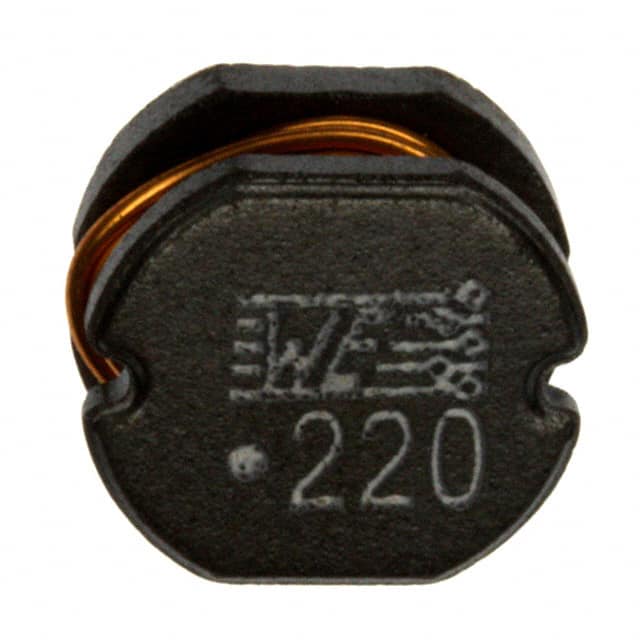

744776122FIXED IND 22UH 2.04A 100MOHM SMD Würth Elektronik |
359 |
|
规格书 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 2.04 A | 2.07A | Unshielded | 100mOhm Max | - | 16MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.232" (5.90mm) |
