上传BOM
固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74408943150FIXED IND 15UH 1.4A 136 MOHM SMD Würth Elektronik |
1,930 |
|
规格书 |
WE-SPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 1.4 A | 1.7A | Shielded | 136mOhm Max | - | 22MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.161" (4.10mm) |
|
74437349470FIXED IND 47UH 1.45A 0.33OHM SMD Würth Elektronik |
1,766 |
|
规格书 |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 47 µH | ±20% | 1.45 A | 3.4A | Shielded | 330mOhm Max | - | 7.3MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 7050 | 0.299" L x 0.272" W (7.60mm x 6.90mm) | 0.197" (5.00mm) |
|
|
74408943022FIXED IND 2.2UH 3A 30 MOHM SMD Würth Elektronik |
1,358 |
|
规格书 |
WE-SPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 3 A | 4.6A | Shielded | 30mOhm Max | - | 85MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.161" (4.10mm) |

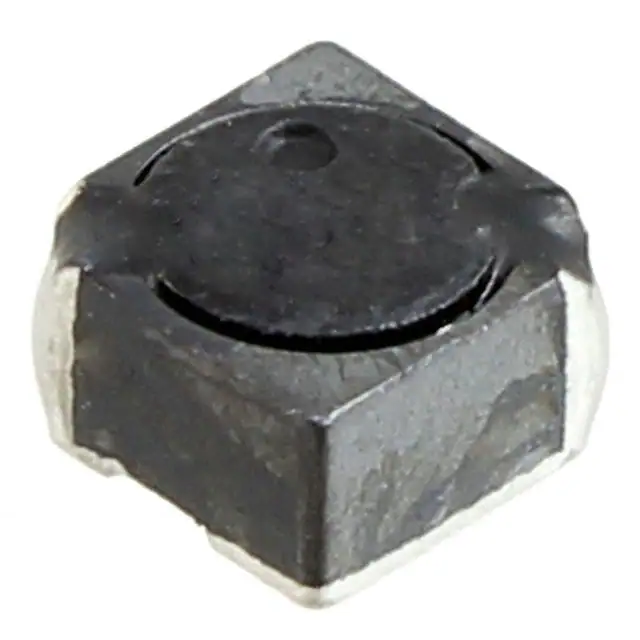

 0.118 Height.jpg)
|
74408942100FIXED IND 10UH 1.38A 148MOHM SMD Würth Elektronik |
1,278 |
|
规格书 |
WE-SPC | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.38 A | 2.1A | Shielded | 148mOhm Max | - | 25MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
78438356033HTWE-MAIA SMT POWER INDUCTOR Würth Elektronik |
899 |
|
规格书 |
WE-MAIA | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | 3.3 µH | ±20% | 3.6 A | 4.8A | Shielded | 51.8mOhm Max | - | 25.5MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
|
78438356047HTWE-MAIA SMT POWER INDUCTOR Würth Elektronik |
544 |
|
规格书 |
WE-MAIA | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | 4.7 µH | ±20% | 3 A | 3.7A | Shielded | 74.8mOhm Max | - | 18MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
|
74408943680FIXED IND 68UH 600MA 700MOHM SMD Würth Elektronik |
392 |
|
规格书 |
WE-SPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 600 mA | 850mA | Shielded | 700mOhm Max | - | 9.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.161" (4.10mm) |
|
|
74408942330FIXED IND 33UH 750MA 500MOHM SMD Würth Elektronik |
153 |
|
规格书 |
WE-SPC | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 750 mA | 1.1A | Shielded | 500mOhm Max | - | 12MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
74437346033FIXED IND 3.3UH 5A 0.03OHM SMD Würth Elektronik |
3,329 |
|
规格书 |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 3.3 µH | ±20% | 5 A | 16.6A | Shielded | 30mOhm Max | - | 27MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.122" (3.10mm) |
|
|
74437346010FIXED IND 1UH 8A 0.01OHM SMD Würth Elektronik |
3,091 |
|
规格书 |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 1 µH | ±20% | 8 A | 29A | Shielded | 10mOhm Max | - | 54MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.122" (3.10mm) |
