固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

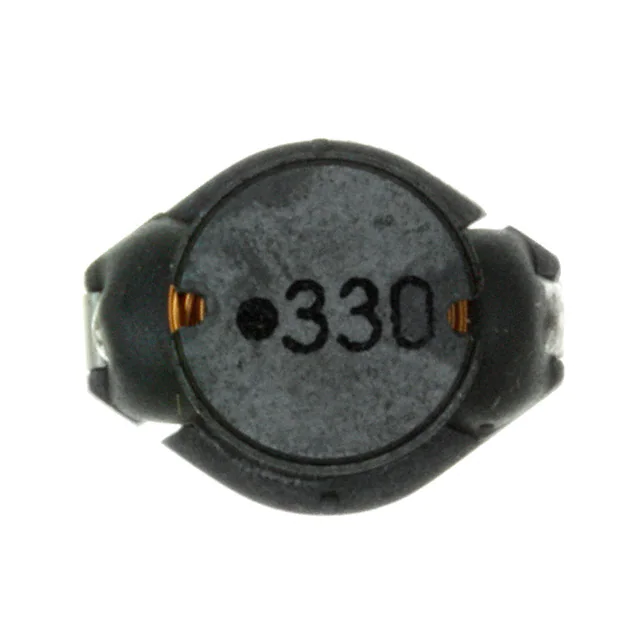

74456133FIXED IND 33UH 2.3A 120 MOHM SMD Würth Elektronik |
4,034 |
|
规格书 |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 2.3 A | 2.6A | Unshielded | 120mOhm Max | - | 15MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.209" (5.30mm) |
|
744066680FIXED IND 68UH 1.5A 216 MOHM SMD Würth Elektronik |
3,319 |
|
规格书 |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±30% | 1.5 A | 1.5A | Shielded | 216mOhm Max | - | 7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.161" (4.10mm) |
|

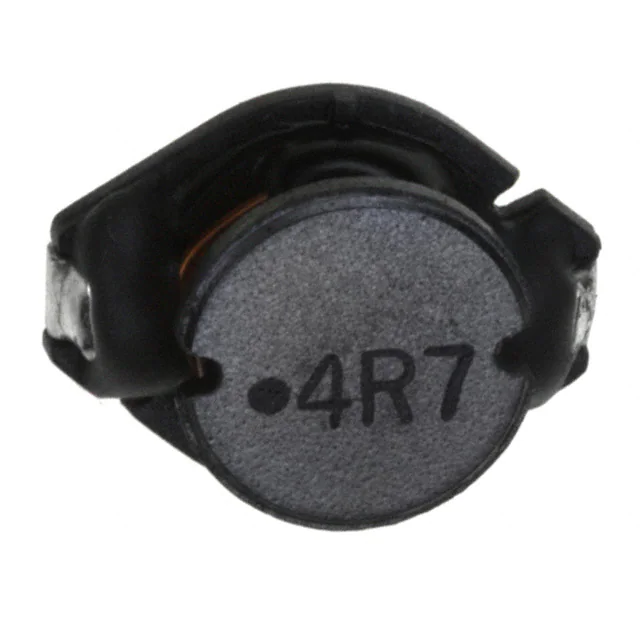

74456047FIXED IND 4.7UH 5A 19 MOHM SMD Würth Elektronik |
3,205 |
|
规格书 |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 5 A | 6A | Unshielded | 19mOhm Max | - | 38MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.209" (5.30mm) |
|

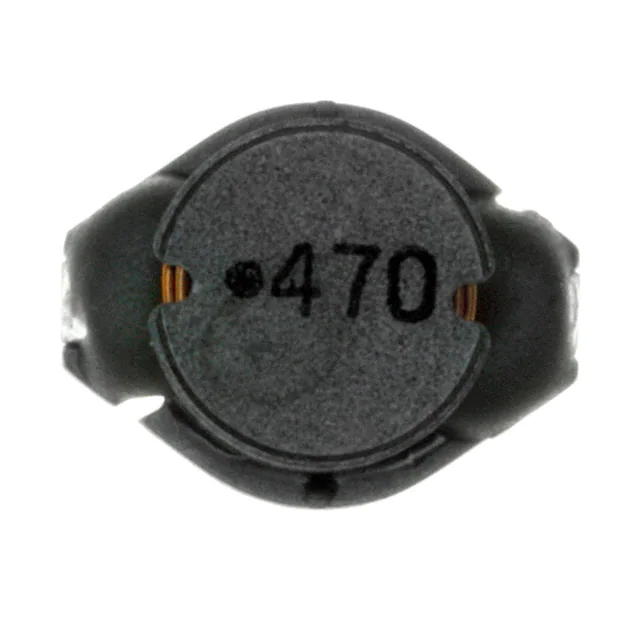

74456147FIXED IND 47UH 1.8A 190 MOHM SMD Würth Elektronik |
3,053 |
|
规格书 |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 1.8 A | 2.14A | Unshielded | 190mOhm Max | - | 10MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.209" (5.30mm) |
|
|
744066100FIXED IND 10UH 3.6A 35 MOHM SMD Würth Elektronik |
2,931 |
|
规格书 |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±30% | 3.6 A | 4A | Shielded | 35mOhm Max | - | 20MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.161" (4.10mm) |
|
|
7440660062FIXED IND 6.2UH 4.3A 24 MOHM SMD Würth Elektronik |
2,100 |
|
规格书 |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.2 µH | ±30% | 4.3 A | 4.5A | Shielded | 24mOhm Max | - | 25MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.161" (4.10mm) |
|
7443082022FIXED IND 220NH 60A 0.00018OHM Würth Elektronik |
2,020 |
|
规格书 |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 220 nH | ±10% | 60 A | 59.3A | Shielded | 0.18mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1088 | 0.402" L x 0.315" W (10.20mm x 8.00mm) | 0.319" (8.10mm) |
|

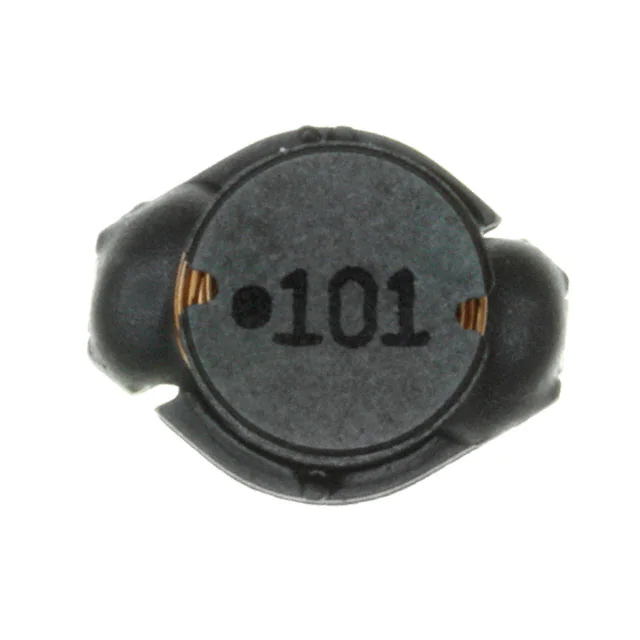

7445620FIXED IND 100UH 1.4A 330MOHM SMD Würth Elektronik |
1,642 |
|
规格书 |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 1.4 A | 1.5A | Unshielded | 330mOhm Max | - | 8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.209" (5.30mm) |
|
|
7443082015AFIXED IND 150NH 65A 0.00015OHM Würth Elektronik |
1,383 |
|
规格书 |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 150 nH | ±10% | 65 A | 76.9A | Shielded | 0.15mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1088 | 0.402" L x 0.319" W (10.20mm x 8.10mm) | 0.315" (8.00mm) |
|
|
7443082012FIXED IND 120NH 60A 0.00018OHM Würth Elektronik |
1,290 |
|
规格书 |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 120 nH | ±10% | 60 A | 100A | Shielded | 0.18mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1088 | 0.402" L x 0.315" W (10.20mm x 8.00mm) | 0.319" (8.10mm) |
