固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

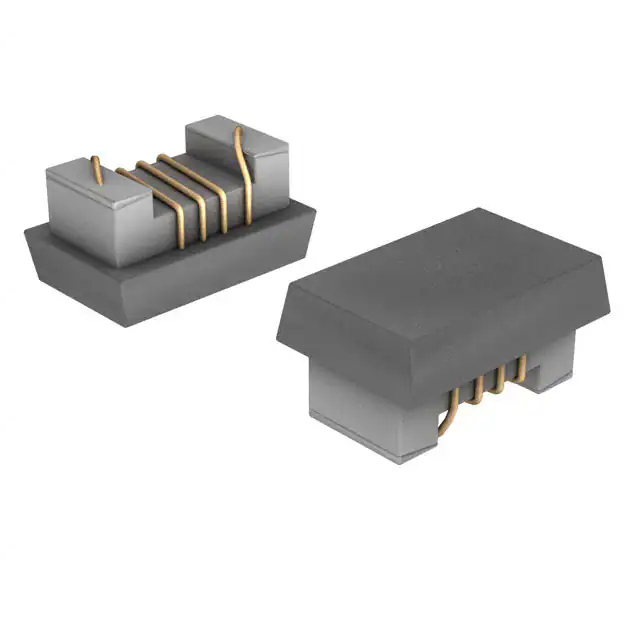

744917175FIXED IND 75NH 500MA 520MOHM SMD Würth Elektronik |
0 |
|
规格书 |
WE-KI HC | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 75 nH | ±2% | 500 mA | - | Unshielded | 520mOhm Max | 37 @ 250MHz | 1.9GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0.039" (1.00mm) |
|
|
744917191FIXED IND 91NH 440MA 440MOHM SMD Würth Elektronik |
0 |
|
规格书 |
WE-KI HC | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 91 nH | ±2% | 440 mA | - | Unshielded | 440mOhm Max | 36 @ 250MHz | 1.65GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0.039" (1.00mm) |
|
|
744917211FIXED IND 110NH 440MA 580MOHM SM Würth Elektronik |
0 |
|
规格书 |
WE-KI HC | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 110 nH | ±2% | 440 mA | - | Unshielded | 580mOhm Max | 38 @ 250MHz | 1.6GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0.039" (1.00mm) |
|
|
744917215FIXED IND 150NH 390MA 820MOHM SM Würth Elektronik |
0 |
|
规格书 |
WE-KI HC | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 150 nH | ±2% | 390 mA | - | Unshielded | 820mOhm Max | 38 @ 250MHz | 1.35GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0.039" (1.00mm) |
|
|
744917218FIXED IND 180NH 310MA 1.5OHM SMD Würth Elektronik |
0 |
|
规格书 |
WE-KI HC | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 180 nH | ±2% | 310 mA | - | Unshielded | 1.5Ohm Max | 25 @ 250MHz | 1.3GHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0.039" (1.00mm) |
|
|
744917221FIXED IND 210NH 280MA 2 OHM SMD Würth Elektronik |
0 |
|
规格书 |
WE-KI HC | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 210 nH | ±2% | 280 mA | - | Unshielded | 2Ohm Max | 24 @ 250MHz | 1.2GHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0.039" (1.00mm) |
|
|
744917222FIXED IND 220NH 280MA 2 OHM SMD Würth Elektronik |
0 |
|
规格书 |
WE-KI HC | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 220 nH | ±2% | 280 mA | - | Unshielded | 2Ohm Max | 25 @ 250MHz | 1.1GHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0.039" (1.00mm) |
|
|
744917225FIXED IND 250NH 240MA 3 OHM SMD Würth Elektronik |
0 |
|
规格书 |
WE-KI HC | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 250 nH | ±2% | 240 mA | - | Unshielded | 3Ohm Max | 25 @ 250MHz | 1.05GHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0.039" (1.00mm) |
|
|
744917230FIXED IND 300NH 220MA 2.8OHM SMD Würth Elektronik |
0 |
|
规格书 |
WE-KI HC | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 300 nH | ±2% | 220 mA | - | Unshielded | 2.8Ohm Max | 25 @ 250MHz | 990MHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0.039" (1.00mm) |
|
|
744917233FIXED IND 330NH 180MA 3.6OHM SMD Würth Elektronik |
0 |
|
规格书 |
WE-KI HC | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 330 nH | ±2% | 180 mA | - | Unshielded | 3.6Ohm Max | 25 @ 250MHz | 930MHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0.039" (1.00mm) |
