固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

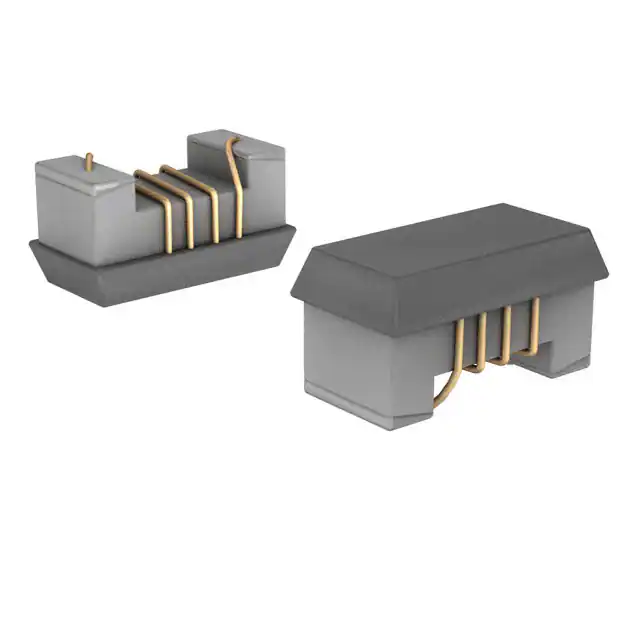

744916112FIXED IND 12NH 1.2A 70 MOHM SMD Würth Elektronik |
0 |
|
规格书 |
WE-KI HC | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 12 nH | ±2% | 1.2 A | - | Unshielded | 70mOhm Max | 28 @ 250MHz | 4.4GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1006 Metric) | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.024" (0.60mm) |
|
|
744916113FIXED IND 13NH 870MA 140MOHM SMD Würth Elektronik |
0 |
|
规格书 |
WE-KI HC | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 13 nH | ±2% | 870 mA | - | Unshielded | 140mOhm Max | 27 @ 250MHz | 4.2GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1006 Metric) | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.024" (0.60mm) |
|
|
744916115FIXED IND 15NH 1.1A 130 MOHM SMD Würth Elektronik |
0 |
|
规格书 |
WE-KI HC | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 15 nH | ±2% | 1.1 A | - | Unshielded | 130mOhm Max | 28 @ 250MHz | 3.9GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1006 Metric) | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.024" (0.60mm) |
|
|
744916116FIXED IND 16NH 850MA 130MOHM SMD Würth Elektronik |
0 |
|
规格书 |
WE-KI HC | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 16 nH | ±2% | 850 mA | - | Unshielded | 130mOhm Max | 27 @ 250MHz | 3.7GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1006 Metric) | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.024" (0.60mm) |
|
|
744916118FIXED IND 18NH 900MA 120MOHM SMD Würth Elektronik |
0 |
|
规格书 |
WE-KI HC | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 18 nH | ±2% | 900 mA | - | Unshielded | 120mOhm Max | 26 @ 250MHz | 3.55GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1006 Metric) | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.024" (0.60mm) |
|
|
744916119FIXED IND 19NH 850MA 175MOHM SMD Würth Elektronik |
0 |
|
规格书 |
WE-KI HC | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 19 nH | ±2% | 850 mA | - | Unshielded | 175mOhm Max | 26 @ 250MHz | 3.5GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1006 Metric) | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.024" (0.60mm) |
|
|
744916121FIXED IND 21NH 450MA 460MOHM SMD Würth Elektronik |
0 |
|
规格书 |
WE-KI HC | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 21 nH | ±2% | 450 mA | - | Unshielded | 460mOhm Max | 25 @ 250MHz | 1.7GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1006 Metric) | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.024" (0.60mm) |
|
|
744916122FIXED IND 22NH 800MA 250MOHM SMD Würth Elektronik |
0 |
|
规格书 |
WE-KI HC | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 22 nH | ±2% | 800 mA | - | Unshielded | 250mOhm Max | 28 @ 250MHz | 3.3GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1006 Metric) | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.024" (0.60mm) |
|
|
744916123FIXED IND 23NH 800MA 160MOHM SMD Würth Elektronik |
0 |
|
规格书 |
WE-KI HC | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 23 nH | ±2% | 800 mA | - | Unshielded | 160mOhm Max | 28 @ 250MHz | 3.3GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1006 Metric) | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.024" (0.60mm) |
|
|
744916124FIXED IND 24NH 700MA 290MOHM SMD Würth Elektronik |
0 |
|
规格书 |
WE-KI HC | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 24 nH | ±2% | 700 mA | - | Unshielded | 290mOhm Max | 27 @ 250MHz | 3.15GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1006 Metric) | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.024" (0.60mm) |
