固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

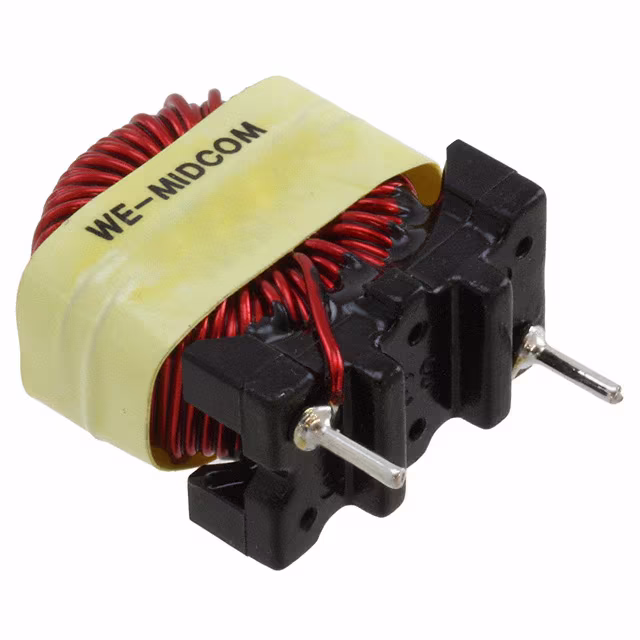

750312186FIXED IND 696UH 2A 128 MOHM TH Würth Elektronik |
0 |
|
规格书 |
MID-LLIT | Radial, Vertical | Tray | Active | Toroidal | - | 696 µH | ±10% | 2 A | - | - | 128mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.820" L x 0.450" W (20.83mm x 11.43mm) | 0.970" (24.64mm) |
|
7447908FIXED IND Würth Elektronik |
48 |
|
规格书 |
WE-MI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Nickel Zinc Ferrite (NiZn) | 10 µH | ±10% | 15 mA | - | Unshielded | 1Ohm Max | 50 @ 2MHz | 28MHz | - | -55°C ~ 125°C | 2 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
7447610268SMT FERRITE INDUCTOR 0603; 680 N Würth Elektronik |
0 |
|
规格书 |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
7447610242SMT FERRITE INDUCTOR 0603; 420 N Würth Elektronik |
0 |
|
规格书 |
WE-RFI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 420 nH | ±5% | 425 mA | - | Unshielded | 255mOhm Max | 13 @ 7.9MHz | 1.11GHz | AEC-Q200 | -40°C ~ 85°C | 7.9 MHz | - | Surface Mount | 0603 | 0.065" L x 0.043" W (1.65mm x 1.10mm) | 0.043" (1.10mm) |
|
|
7447610239SMT FERRITE INDUCTOR 0603; 390 N Würth Elektronik |
0 |
|
规格书 |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
7447610422SMT FERRITE INDUCTOR 0603; 22000 Würth Elektronik |
0 |
|
规格书 |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
7447610247SMT FERRITE INDUCTOR 0603; 470 N Würth Elektronik |
0 |
|
规格书 |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
744765075GAFIXED IND 7.5NH 680MA 104MOHM SM Würth Elektronik |
0 |
|
规格书 |
WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 7.5 nH | ±0.2nH | 680 mA | - | Unshielded | 104mOhm Max | 25 @ 250MHz | 5.8GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
7447660033WE-GF SMT WIRE WOUND INDUCTOR Würth Elektronik |
0 |
|
规格书 |
WE-GF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 nH | ±10% | 450 mA | - | Unshielded | 400mOhm Max | 30 @ 25.2MHz | 440MHz | - | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | 4532 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.142" (3.60mm) |
|
7447720223WE-TI RADIAL LEADED WIRE WOUND I Würth Elektronik |
0 |
|
规格书 |
WE-TI | Radial, Vertical Cylinder | Tray | Active | Wirewound | Nickel Zinc Ferrite (NiZn) | 22 mH | ±5% | 90 mA | 110mA | Unshielded | 55Ohm Max | - | 380kHz | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
