固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

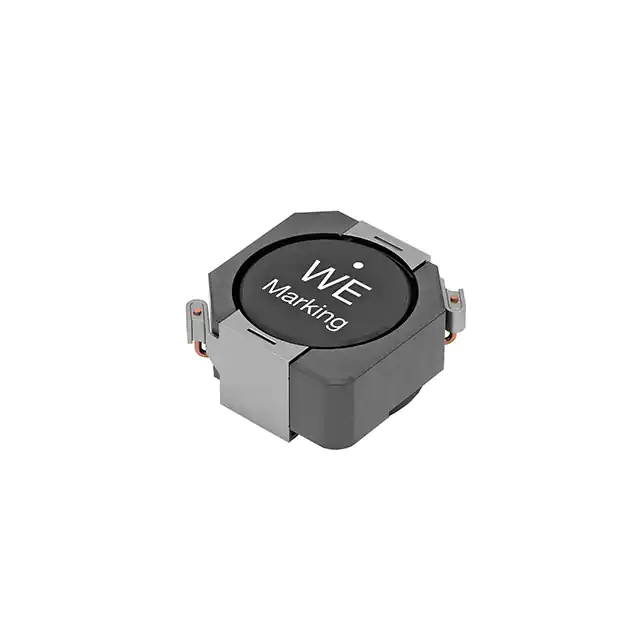

7447706047FIXED IND 4.7UH 8.1A 12MOHM SMD Würth Elektronik |
182 |
|
规格书 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 8.1 A | 11.5A | Shielded | 12mOhm Max | - | 27.4MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
74404086471FIXED IND 470UH 650MA 1.2OHM SMD Würth Elektronik |
10,946 |
|
规格书 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 650 mA | 1.08A | Shielded | 1.2Ohm | - | 1.8MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 8065 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.256" (6.50mm) |
|
74479275222FIXED IND 2.2UH 1.3A 176MOHM SMD Würth Elektronik |
7,742 |
|
规格书 |
WE-PMCI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 1.3 A | 1.7A | Shielded | 176mOhm Max | - | 40MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
74479275210FIXED IND 1UH 1.8A 78 MOHM SMD Würth Elektronik |
6,155 |
|
规格书 |
WE-PMCI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 1.8 A | 2.1A | Shielded | 78mOhm Max | - | 80MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
|
74404086102FIXED IND 1MH 480MA 2.35 OHM SMD Würth Elektronik |
2,740 |
|
规格书 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 0.4 A | 650mA | Shielded | 2.35Ohm | - | 1.39MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 8065 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.256" (6.50mm) |
|
|
74404086152FIXED IND 1.5MH 360MA 3.65OHM SM Würth Elektronik |
2,594 |
|
规格书 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 mH | ±20% | 360 mA | 540mA | Shielded | 3.65Ohm | - | 1.13MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 8065 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.256" (6.50mm) |
|
|
74479275147FIXED IND 470NH 2.6A 47 MOHM SMD Würth Elektronik |
2,018 |
|
规格书 |
WE-PMCI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 2.6 A | 3.3A | Shielded | 47mOhm Max | - | 140MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
|
74404086222FIXED IND 2.2MH 310MA 5 OHM SMD Würth Elektronik |
1,262 |
|
规格书 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±20% | 310 mA | 450mA | Shielded | 5Ohm | - | 924kHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 8065 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.256" (6.50mm) |
|
|
74404086472FIXED IND 4.7MH 190MA 12.15 OHM Würth Elektronik |
882 |
|
规格书 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 mH | ±20% | 190 mA | 290mA | Shielded | 12.15Ohm | - | 620kHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 8065 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.256" (6.50mm) |
|
|
74404086332FIXED IND 3.3MH 240MA 7.3OHM SMD Würth Elektronik |
304 |
|
规格书 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 mH | ±20% | 240 mA | 360mA | Shielded | 7.3Ohm | - | 759kHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 8065 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.256" (6.50mm) |
