固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
784314011WE-HCIA SMD FLAT WIRE HIGH CURRE Würth Elektronik |
1,341 |
|
规格书 |
WE-HCIA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.1 µH | ±20% | 14.7 A | 15.2A | Shielded | 3.47mOhm Max | - | 147MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.272" L x 0.272" W (6.90mm x 6.90mm) | 0.197" (5.00mm) |
|
|
784314100WE-HCIA SMD FLAT WIRE HIGH CURRE Würth Elektronik |
1,201 |
|
规格书 |
WE-HCIA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 3.7 A | 4.85A | Shielded | 33.72mOhm Max | - | 41MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.272" L x 0.272" W (6.90mm x 6.90mm) | 0.197" (5.00mm) |
|
|
74439346012WE-XHMI SMT POWER INDUCTOR 6060; Würth Elektronik |
1,399 |
|
规格书 |
WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 1.2 µH | ±20% | 14.2 A | 20A | Shielded | 3.65mOhm | - | 50MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.262" L x 0.254" W (6.65mm x 6.45mm) | 0.240" (6.10mm) |
|
|
74439346018WE-XHMI SMT POWER INDUCTOR 6060; Würth Elektronik |
1,350 |
|
规格书 |
WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 1.8 µH | ±20% | 11.5 A | 18.3A | Shielded | 4.7mOhm | - | 42MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.262" L x 0.254" W (6.65mm x 6.45mm) | 0.240" (6.10mm) |
|
|
74439346010WE-XHMI SMT POWER INDUCTOR 6060; Würth Elektronik |
1,311 |
|
规格书 |
WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 1 µH | ±20% | 13.1 A | 24A | Shielded | 3.39mOhm | - | 60MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.262" L x 0.254" W (6.65mm x 6.45mm) | 0.240" (6.10mm) |
|
|
74439346015WE-XHMI SMT POWER INDUCTOR 6060; Würth Elektronik |
1,228 |
|
规格书 |
WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 1.5 µH | ±20% | 13.2 A | 20.5A | Shielded | 3.9mOhm | - | 44MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.262" L x 0.254" W (6.65mm x 6.45mm) | 0.240" (6.10mm) |
|
|
74439346033WE-XHMI SMT POWER INDUCTOR 6060; Würth Elektronik |
1,134 |
|
规格书 |
WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 3.3 µH | ±20% | 8 A | 15A | Shielded | 10.83mOhm | - | 31MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.262" L x 0.254" W (6.65mm x 6.45mm) | 0.240" (6.10mm) |
|
|
74439346022WE-XHMI SMT POWER INDUCTOR 6060; Würth Elektronik |
794 |
|
规格书 |
WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 2.2 µH | ±20% | 10.6 A | 19.5A | Shielded | 5.58mOhm | - | 37MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.262" L x 0.254" W (6.65mm x 6.45mm) | 0.240" (6.10mm) |
|

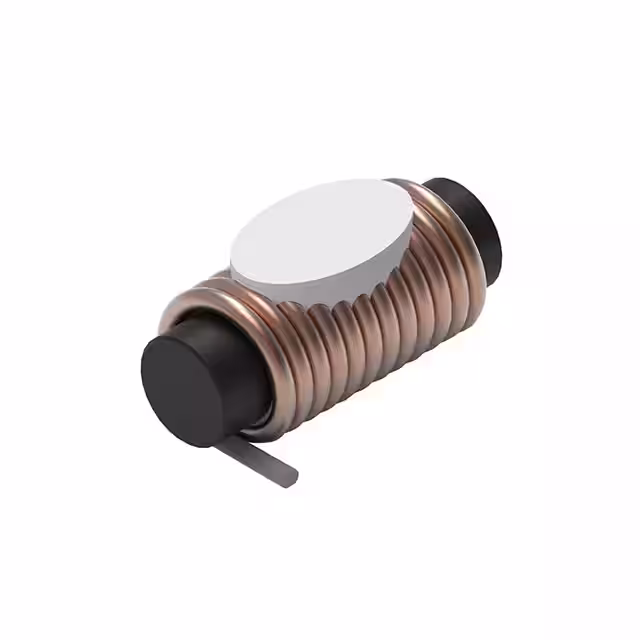

7847232045FIXED IND 4.45UH 12A 3.8MOHM SMD Würth Elektronik |
220 |
|
规格书 |
WE-RCIS | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.45 µH | ±20% | 12 A | 45A | Unshielded | 3.8mOhm | - | 40MHz | AEC-Q200 | -40°C ~ 150°C | 1 kHz | - | Surface Mount | - | 0.984" L x 0.512" W (25.00mm x 13.00mm) | 0.467" (11.85mm) |
|
|
74439344047WE-XHMI SMT POWER INDUCTOR 4.7 U Würth Elektronik |
966 |
|
规格书 |
WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 4.7 µH | ±20% | 4.7 A | 10.5A | Shielded | 31mOhm | - | 28MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.262" L x 0.254" W (6.65mm x 6.45mm) | 0.130" (3.30mm) |
