上传BOM
固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

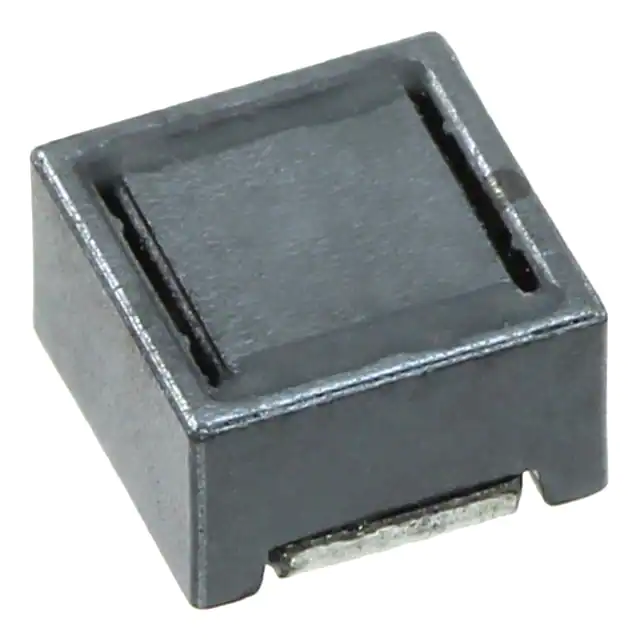

74406042010FIXED IND 1UH 4.47A 23 MOHM SMD Würth Elektronik |
2,027 |
|
规格书 |
WE-LQFS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 4.47 A | 4.06A | Shielded | 23mOhm Max | - | 237MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4818 | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.079" (2.00mm) |
|
|
74406042220FIXED IND 22UH 1A 339.2MOHM SMD Würth Elektronik |
1,017 |
|
规格书 |
WE-LQFS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1 A | 680mA | Shielded | 339.2mOhm | - | 30MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4818 | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.079" (2.00mm) |
|

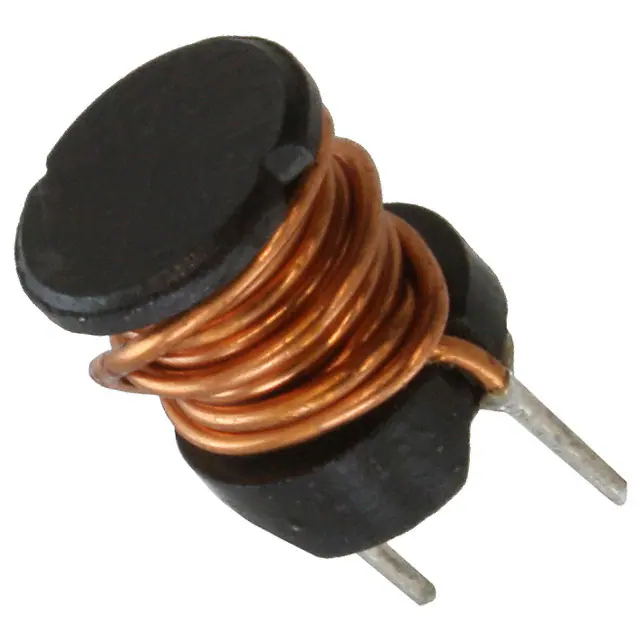

744772100FIXED IND 10UH 4.2A 40 MOHM TH Würth Elektronik |
4,543 |
|
规格书 |
WE-TI | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±15% | 4.2 A | 5A | Unshielded | 40mOhm Max | - | 23.6MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|

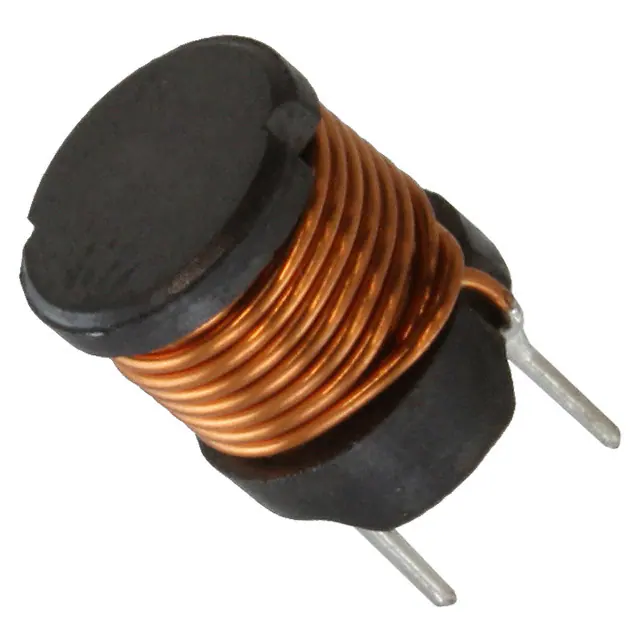

744772330FIXED IND 33UH 2A 60 MOHM TH Würth Elektronik |
3,113 |
|
规格书 |
WE-TI | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 2 A | 2.5A | Unshielded | 60mOhm Max | - | 10.2MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|
744772470FIXED IND 47UH 2.3A 120 MOHM TH Würth Elektronik |
1,421 |
|
规格书 |
WE-TI | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 2.3 A | 2.5A | Unshielded | 120mOhm Max | - | 9MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|
|
744772472FIXED IND 4.7MH 240MA 9.5 OHM TH Würth Elektronik |
1,100 |
|
规格书 |
WE-TI | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 4.7 mH | ±5% | 240 mA | 250mA | Unshielded | 9.5Ohm Max | - | 600kHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|
|
74406043221FIXED IND 220UH 400MA 1.326 OHM Würth Elektronik |
11,521 |
|
规格书 |
WE-LQFS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 400 mA | 260mA | Shielded | 1.326Ohm Max | - | 7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4828 | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
|
74406043470FIXED IND 47UH 970MA 260MOHM SMD Würth Elektronik |
9,253 |
|
规格书 |
WE-LQFS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 970 mA | 560mA | Shielded | 260mOhm Max | - | 17MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4828 | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
|
74406043471FIXED IND 470UH 260MA 2.803 OHM Würth Elektronik |
6,420 |
|
规格书 |
WE-LQFS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 260 mA | 180mA | Shielded | 2.803Ohm Max | - | 4.7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4828 | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
|
74406043331FIXED IND 330UH 340MA 1.864 OHM Würth Elektronik |
3,703 |
|
规格书 |
WE-LQFS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 340 mA | 220mA | Shielded | 1.864Ohm Max | - | 5.8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4828 | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
