固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74437334056FIXED IND 5.6UH 2.1A 0.122OHM SM Würth Elektronik |
2,933 |
|
规格书 |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 5.6 µH | ±20% | 2.1 A | 7A | Shielded | 122mOhm Max | - | 21MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5020 | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.079" (2.00mm) |
|
|
744373340033FIXED IND 330NH 9A 0.0073OHM SMD Würth Elektronik |
2,721 |
|
规格书 |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 330 nH | ±20% | 9 A | 29.3A | Shielded | 7.3mOhm Max | - | 100MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5020 | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.079" (2.00mm) |
|

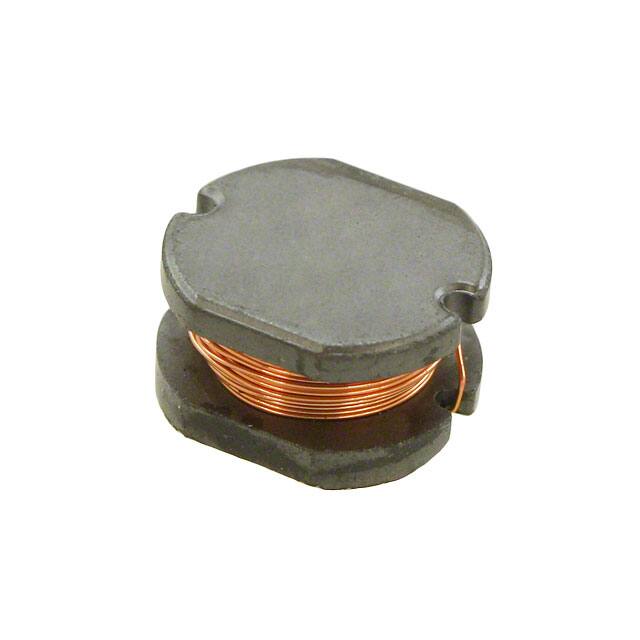

76877630FIXED IND 1MH 380MA 2.6 OHM SMD Würth Elektronik |
1,237 |
|
规格书 |
WE-PD2 HV | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 380 mA | 380mA | Unshielded | 2.6Ohm Max | - | 1.9MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.232" (5.90mm) |
|
744373210047FIXED IND 470NH 5.9A 0.02OHM SMD Würth Elektronik |
735 |
|
规格书 |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 470 nH | ±20% | 5.9 A | 12.5A | Shielded | 20mOhm Max | - | 120MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4012 | 0.160" L x 0.160" W (4.06mm x 4.06mm) | 0.047" (1.20mm) |
|
|
74437321015FIXED IND 1.5UH 3A 0.0633OHM SMD Würth Elektronik |
465 |
|
规格书 |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 1.5 µH | ±20% | 3 A | 5.1A | Shielded | 63.3mOhm Max | - | 60MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4012 | 0.160" L x 0.160" W (4.06mm x 4.06mm) | 0.047" (1.20mm) |
|

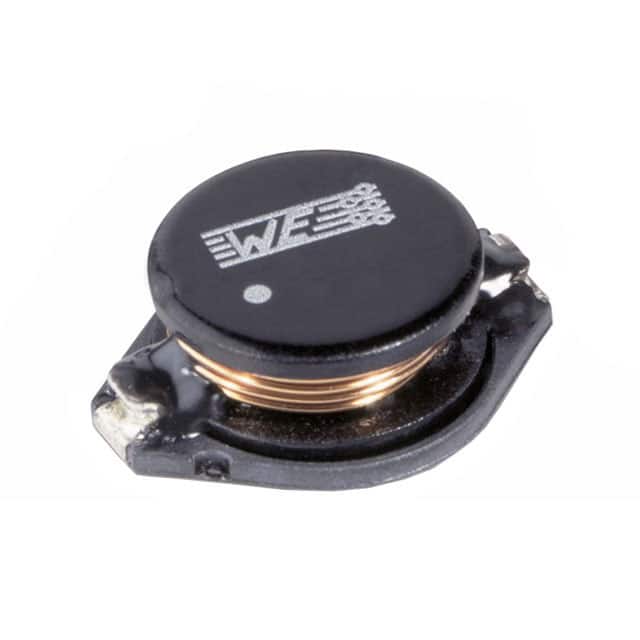

74455215FIXED IND 150UH 250MA 2 OHM SMD Würth Elektronik |
180 |
|
规格书 |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 250 mA | 270mA | Unshielded | 2Ohm Max | - | 6MHz | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.173" W (6.60mm x 4.40mm) | 0.114" (2.90mm) |
|
744373680056FIXED IND 560NH 19A 0.0018OHM SM Würth Elektronik |
786 |
|
规格书 |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 560 nH | ±20% | 19 A | 60.9A | Shielded | 1.8mOhm Max | - | 70MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.161" (4.10mm) |
|
|
744373680039FIXED IND 390NH 20.5A 0.0013OHM Würth Elektronik |
475 |
|
规格书 |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 390 nH | ±20% | 20.5 A | 77.5A | Shielded | 1.3mOhm Max | - | 101MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.161" (4.10mm) |
|
|
744373680045FIXED IND 450NH 20A 0.0015OHM SM Würth Elektronik |
454 |
|
规格书 |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 450 nH | ±20% | 20 A | 64.5A | Shielded | 1.5mOhm Max | - | 82MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.161" (4.10mm) |
|
|
744373680036FIXED IND 360NH 21A 0.0012OHM SM Würth Elektronik |
297 |
|
规格书 |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 360 nH | ±20% | 21 A | 79.4A | Shielded | 1.2mOhm Max | - | 104MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.161" (4.10mm) |
