固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WL05JT18NFIXED IND 18NH 600MA 200MOHM SMD Viking Tech |
2,000 |
|
规格书 |
WL | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 18 nH | ±5% | 600 mA | - | Unshielded | 200mOhm Max | 50 @ 500MHz | 3.3GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|
|
WL05JT8N2FIXED IND 8.2NH 600MA 120MOHM SM Viking Tech |
2,000 |
|
规格书 |
WL | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 8.2 nH | ±5% | 600 mA | - | Unshielded | 120mOhm Max | 50 @ 1GHz | 4.7GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|
|
WL02GT8N7FIXED IND 8.7NH 480MA 200MOHM SM Viking Tech |
8,000 |
|
规格书 |
WL | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 8.7 nH | ±2% | 480 mA | - | Unshielded | 200mOhm Max | 18 @ 250MHz | 4.1GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.61mm) |
|

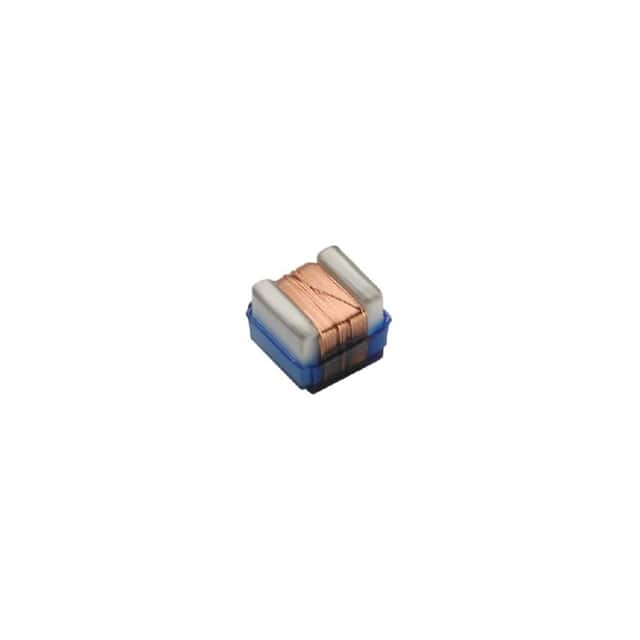

WL02JT22NFIXED IND 22NH 400MA 300MOHM SMD Viking Tech |
7,976 |
|
规格书 |
WL | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 22 nH | ±5% | 400 mA | - | Unshielded | 300mOhm Max | 25 @ 250MHz | 2.8GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.61mm) |
|
|
WL02JT7N5FIXED IND 7.5NH 680MA 104MOHM SM Viking Tech |
4,000 |
|
规格书 |
WL | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 7.5 nH | ±5% | 680 mA | - | Unshielded | 104mOhm Max | 22 @ 250MHz | 4.8GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.61mm) |
|
|
WL02GT18NFIXED IND 18NH 420MA 230MOHM SMD Viking Tech |
4,000 |
|
规格书 |
WL | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 18 nH | ±2% | 420 mA | - | Unshielded | 230mOhm Max | 25 @ 250MHz | 3.1GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.61mm) |
|
|
WL02JT15NFIXED IND 15NH 560MA 172MOHM SMD Viking Tech |
4,000 |
|
规格书 |
WL | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 15 nH | ±5% | 560 mA | - | Unshielded | 172mOhm Max | 24 @ 250MHz | 3.28GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.61mm) |
|
|
WL02JT5N6FIXED IND 5.6NH 760MA 83MOHM SMD Viking Tech |
4,000 |
|
规格书 |
WL | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 5.6 nH | ±5% | 760 mA | - | Unshielded | 83mOhm Max | 20 @ 250MHz | 4.8GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.61mm) |
|
PCS127MT101FIXED IND 100UH 1.7A 220MOHM SMD Viking Tech |
1,200 |
|
规格书 |
PCS | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±20% | 1.7 A | - | Shielded | 220mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
PSDB5D28NT4R7FIXED IND 4.7UH 2A 29 MOHM SMD Viking Tech |
2,000 |
|
规格书 |
PSDB | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±30% | 2 A | - | Shielded | 29mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.244" W (6.30mm x 6.20mm) | 0.118" (3.00mm) |
