固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHLP2020BZER3R3M01FIXED IND 3.3UH 3.3A 85.5MOHM SM |
6,397 |
|
规格书 |
IHLP-2020BZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 3.3 A | 8.5A | Shielded | 85.5mOhm Max | - | 30MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.079" (2.00mm) |
|
74479275210FIXED IND 1UH 1.8A 78 MOHM SMD |
6,155 |
|
规格书 |
WE-PMCI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 1.8 A | 2.1A | Shielded | 78mOhm Max | - | 80MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
74404086102FIXED IND 1MH 480MA 2.35 OHM SMD |
2,740 |
|
规格书 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 0.4 A | 650mA | Shielded | 2.35Ohm | - | 1.39MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 8065 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.256" (6.50mm) |
|
|
74404086152FIXED IND 1.5MH 360MA 3.65OHM SM |
2,594 |
|
规格书 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 mH | ±20% | 360 mA | 540mA | Shielded | 3.65Ohm | - | 1.13MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 8065 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.256" (6.50mm) |
|
NS12555T152MNFIXED IND 1.5MH 440MA 2.076 OHM |
2,199 |
|
规格书 |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 mH | ±20% | 440 mA | 400mA | Shielded | 2.076Ohm Max | - | 1.7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.230" (5.85mm) |
|
|
74479275147FIXED IND 470NH 2.6A 47 MOHM SMD |
2,018 |
|
规格书 |
WE-PMCI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 2.6 A | 3.3A | Shielded | 47mOhm Max | - | 140MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
DR127-820-RFIXED IND 82UH 2.09A 143MOHM SMD |
1,692 |
|
规格书 |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±20% | 2.09 A | 4.06A | Shielded | 143mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
74404086222FIXED IND 2.2MH 310MA 5 OHM SMD |
1,262 |
|
规格书 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±20% | 310 mA | 450mA | Shielded | 5Ohm | - | 924kHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 8065 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.256" (6.50mm) |
|
|
74404086472FIXED IND 4.7MH 190MA 12.15 OHM |
882 |
|
规格书 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 mH | ±20% | 190 mA | 290mA | Shielded | 12.15Ohm | - | 620kHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 8065 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.256" (6.50mm) |
|

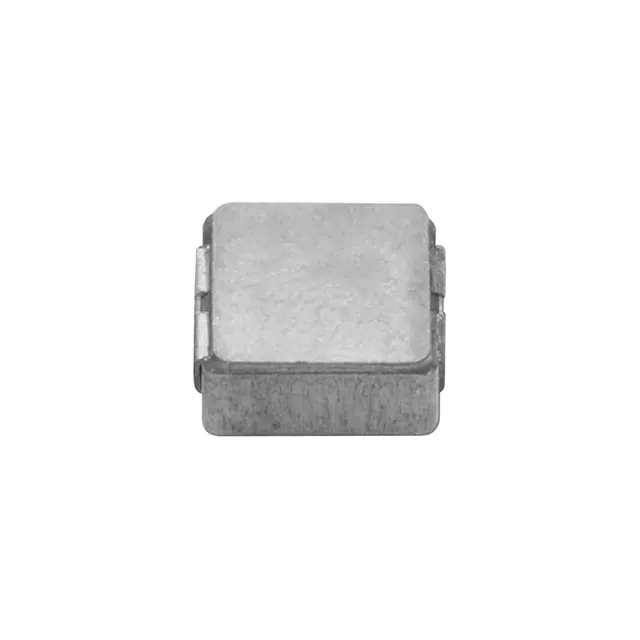

IHLP2525CZER100MA1IHLP-2525CZ-A1 10 20% ER E3 |
641 |
|
规格书 |
IHLP-2525CZ-A1 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 3 A | 7A | Shielded | 105mOhm Max | - | 16MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|

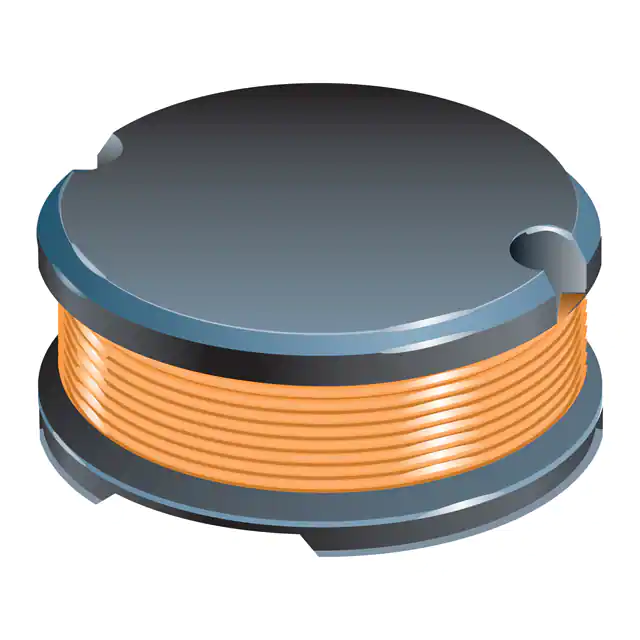

SDR1307A-101KFIXED IND 100UH 1.9A 180MOHM SMD |
431 |
|
规格书 |
SDR1307A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 1.9 A | 3A | Unshielded | 180mOhm Max | 25 @ 796kHz | 5.8MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" Dia (13.00mm) | 0.287" (7.30mm) |
|
|
74404086332FIXED IND 3.3MH 240MA 7.3OHM SMD |
304 |
|
规格书 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 mH | ±20% | 240 mA | 360mA | Shielded | 7.3Ohm | - | 759kHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 8065 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.256" (6.50mm) |
|
|
74404086151FIXED IND 150UH 1.2A 355MOHM SMD |
260 |
|
规格书 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 1.2 A | 1.8A | Shielded | 355mOhm | - | 3.2MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 8065 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.256" (6.50mm) |
|
SRR1280-220MFIXED IND 22UH 4.3A 38.6MOHM SMD |
66,941 |
|
规格书 |
SRR1280 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 4.3 A | 4.1A | Shielded | 38.6mOhm Max | 20 @ 2.52MHz | 11MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|

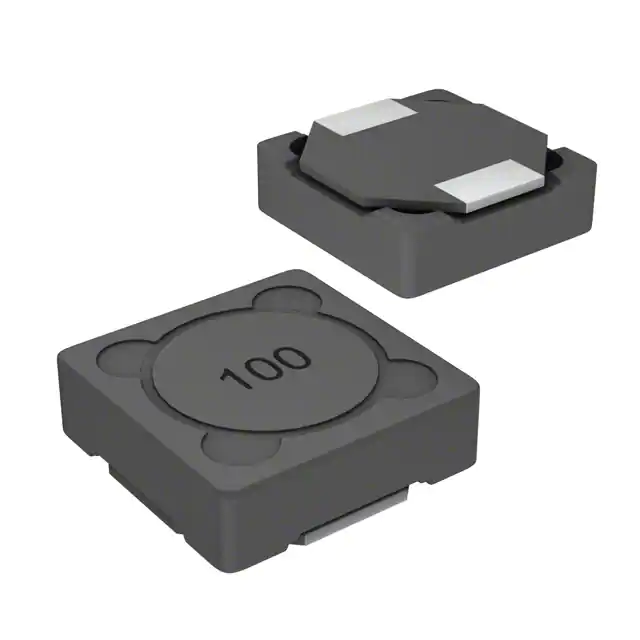

SRR1240-100MFIXED IND 10UH 4A 32 MOHM SMD |
59,354 |
|
规格书 |
SRR1240 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 4 A | 4A | Shielded | 32mOhm Max | 17 @ 2.52MHz | 27MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
SRR1260-221KFIXED IND 220UH 1.38A 380MOHM SM |
47,902 |
|
规格书 |
SRR1260 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 1.38 A | 1.3A | Shielded | 380mOhm Max | 22 @ 796kHz | 4.2MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
|
SRR1240-150MFIXED IND 15UH 3.5A 47 MOHM SMD |
30,666 |
|
规格书 |
SRR1240 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 3.5 A | 3.2A | Shielded | 47mOhm Max | 16 @ 2.52MHz | 22MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
|
SRR1260-330MFIXED IND 33UH 3A 60 MOHM SMD |
28,112 |
|
规格书 |
SRR1260 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 3 A | 2.8A | Shielded | 60mOhm Max | 27 @ 2.52MHz | 9.97MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
|
SRR1260-271KFIXED IND 270UH 1.3A 450MOHM SMD |
25,546 |
|
规格书 |
SRR1260 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 270 µH | ±10% | 1.3 A | 1.2A | Shielded | 450mOhm Max | 20 @ 796kHz | 3.6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
|
SRR1280-560MFIXED IND 56UH 2.6A 100 MOHM SMD |
23,048 |
|
规格书 |
SRR1280 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±20% | 2.6 A | 2.5A | Shielded | 100mOhm Max | 24 @ 2.52MHz | 7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
