固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPM10040T-2R2M-HZFIXED IND 2.2UH 16.7A 7.46 MOHM TDK Corporation |
690 |
|
规格书 |
SPM-HZ | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 16.7 A | 9.7A | Shielded | 7.46mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.421" L x 0.394" W (10.70mm x 10.00mm) | 0.157" (4.00mm) |
|
SPM10040T-1R5M-HZRAUTO IND 1.5H 17.2A 4.29MOHM TDK Corporation |
191 |
|
规格书 |
SPM-HZR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal | 1.5 µH | ±20% | 17.2 A | 16.6A | Shielded | 4.29mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.421" L x 0.394" W (10.70mm x 10.00mm) | 0.157" (4.00mm) |
|
SLF12575T-470M2R7-HFIXED IND 47UH 2.7A 63.36MOHM SM TDK Corporation |
514 |
|
规格书 |
SLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 2.7 A | 2.7A | Shielded | 63.36mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|
|
SLF12575T-330M3R2-HFIXED IND 33UH 3.2A 47.4MOHM SMD TDK Corporation |
503 |
|
规格书 |
SLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 3.2 A | 3.2A | Shielded | 47.4mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|
|
SLF12575T-101M1R9-HFIXED IND 100UH 1.9A 125MOHM SMD TDK Corporation |
472 |
|
规格书 |
SLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1.9 A | 1.9A | Shielded | 125mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|
SPM10054T-100M-HZFIXED IND 10UH 10.6A 24.31 MOHM TDK Corporation |
135 |
|
规格书 |
SPM-HZ | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Metal | 10 µH | ±20% | 10.6 A | 4.6A | Shielded | 24.31mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.421" L x 0.394" W (10.70mm x 10.00mm) | 0.213" (5.40mm) |
|

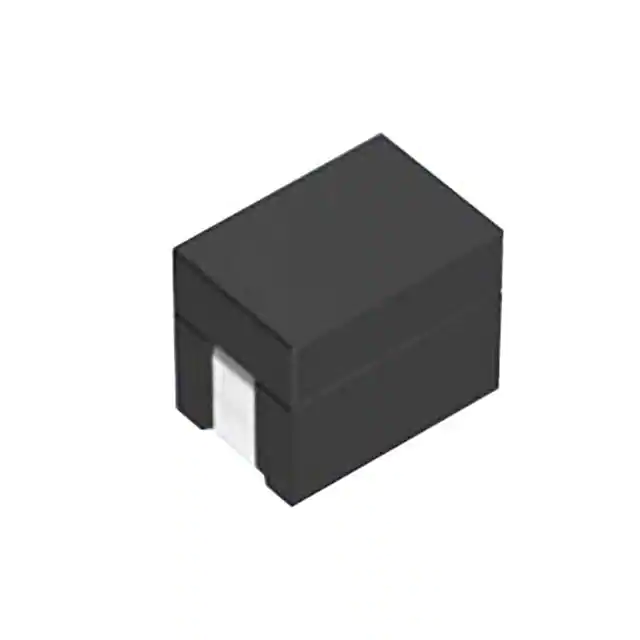

VLBS1007083T-R20LFIXED IND 200NH 70A 0.18MOHM SMD TDK Corporation |
880 |
|
规格书 |
VLBS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 200 nH | ±15% | 70 A | 50A | Shielded | 0.18mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.276" W (10.00mm x 7.00mm) | 0.327" (8.30mm) |
|

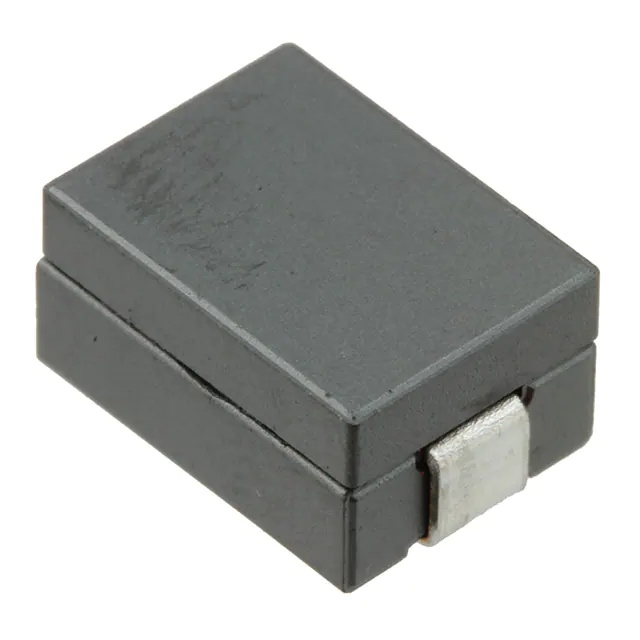

VLB10050HT-R15MFIXED IND 150NH 31A 0.35MOHM SMD TDK Corporation |
1,734 |
|
规格书 |
VLB | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 nH | ±20% | 31 A | 52A | Unshielded | 0.35mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.386" L x 0.264" W (9.80mm x 6.70mm) | 0.197" (5.00mm) |
|

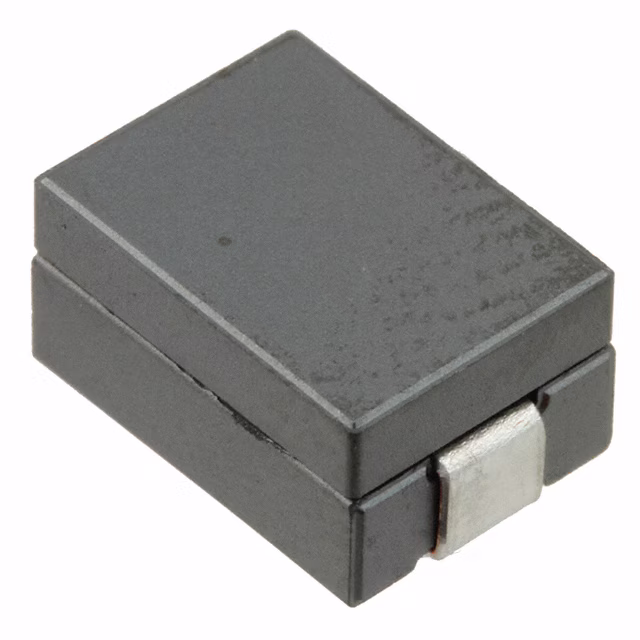

VLB10050HT-R20MFIXED IND 200NH 31A 0.35MOHM SMD TDK Corporation |
724 |
|
规格书 |
VLB | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 200 nH | ±20% | 31 A | 37A | Unshielded | 0.35mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.386" L x 0.264" W (9.80mm x 6.70mm) | 0.197" (5.00mm) |
|
VLB7050HT-R15MFIXED IND 150NH 36A 0.27MOHM SMD TDK Corporation |
378 |
|
规格书 |
VLB | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 nH | ±20% | 36 A | 37A | Unshielded | 0.27mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.268" L x 0.264" W (6.80mm x 6.70mm) | 0.197" (5.00mm) |
