固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

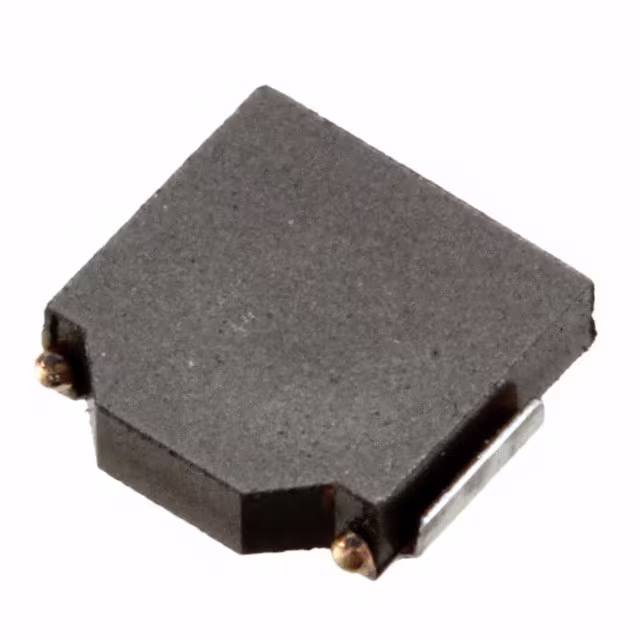

SPM4012T-3R3MFIXED IND 3.3UH 2.4A 145MOHM SMD TDK Corporation |
0 |
|
规格书 |
SPM | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 3.3 µH | ±20% | 2.4 A | 2.8A | Shielded | 145mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.047" (1.20mm) |
|

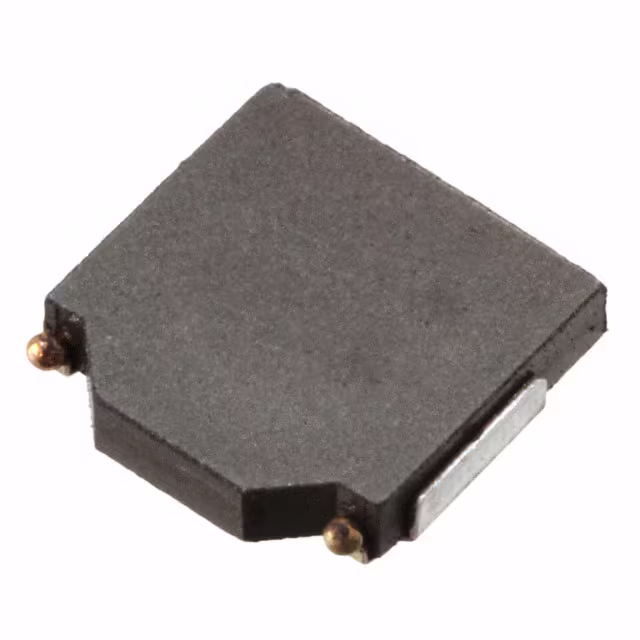

SPM5012T-2R2MFIXED IND 2.2UH 2.7A 78.8MOHM SM TDK Corporation |
4 |
|
规格书 |
SPM | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 2.7 A | 4.9A | Shielded | 78.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.201" W (5.40mm x 5.10mm) | 0.047" (1.20mm) |
|

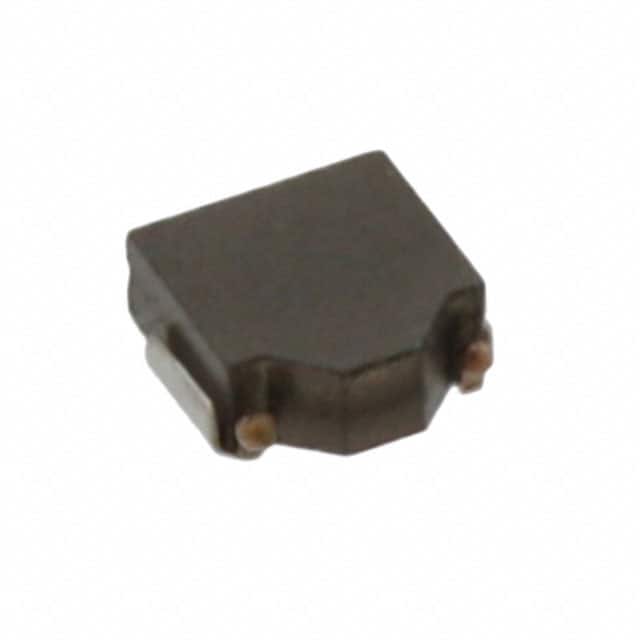

SPM3020T-2R2MFIXED IND 2.2UH 2.8A 90 MOHM SMD TDK Corporation |
0 |
|
规格书 |
SPM | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 2.8 A | 3.9A | Shielded | 90mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | 0.079" (2.00mm) |
|
VLF302510MT-150M-CAFIXED IND 15UH 550MA 600MOHM SMD TDK Corporation |
6 |
|
规格书 |
VLF-M-CA | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 550 mA | 470mA | Shielded | 600mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.098" W (3.00mm x 2.50mm) | 0.039" (1.00mm) |
|
SPM5015T-2R2MFIXED IND 2.2UH 4.3A 49.5MOHM SM TDK Corporation |
0 |
|
规格书 |
SPM | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 4.3 A | 3.9A | Shielded | 49.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.201" W (5.40mm x 5.10mm) | 0.059" (1.50mm) |
|
|
SPM5015T-4R7MFIXED IND 4.7UH 3.1A 102.8 MOHM TDK Corporation |
0 |
|
规格书 |
SPM | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 4.7 µH | ±20% | 3.1 A | 2.9A | Shielded | 102.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.201" W (5.40mm x 5.10mm) | 0.059" (1.50mm) |
|
SPM3012T-1R5MFIXED IND 1.5UH 2.5A 90 MOHM SMD TDK Corporation |
0 |
|
规格书 |
SPM | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 1.5 µH | ±20% | 2.5 A | 2.8A | Shielded | 90mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | 0.047" (1.20mm) |
|
|

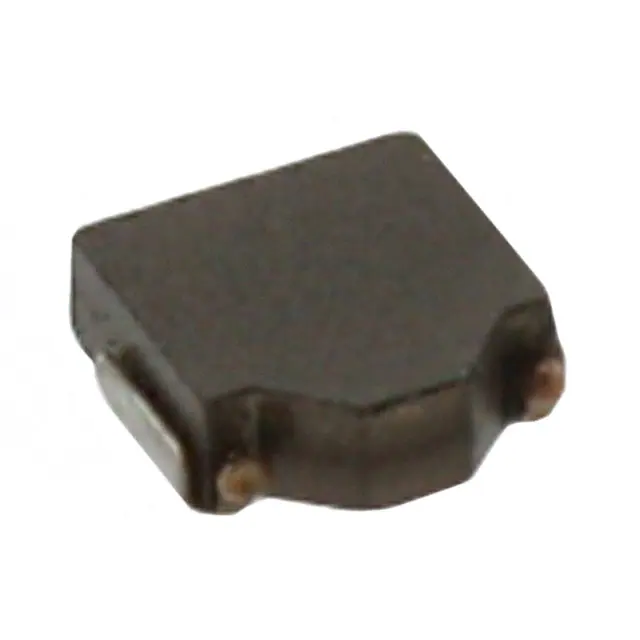

SPM3012T-2R2MFIXED IND 2.2UH 2.2A 115MOHM SMD TDK Corporation |
0 |
|
规格书 |
SPM | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 2.2 A | 2.5A | Shielded | 115mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | 0.047" (1.20mm) |
|
CLF10040T-2R2N-HFIXED IND 2.2UH 7.5A 9.7MOHM SMD TDK Corporation |
5 |
|
规格书 |
CLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 7.5 A | 5A | Shielded | 9.7mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.382" W (10.00mm x 9.70mm) | 0.161" (4.10mm) |
|
|
CLF10040T-1R0N-HFIXED IND 1UH 12A 5.7 MOHM SMD TDK Corporation |
0 |
|
规格书 |
CLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 12 A | 6.3A | Shielded | 5.7mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.382" W (10.00mm x 9.70mm) | 0.161" (4.10mm) |
