固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

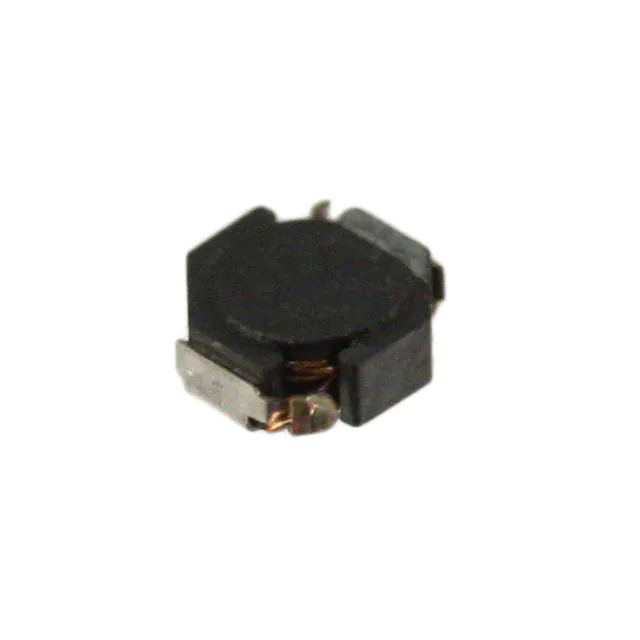

VLF3012ST-100MR59FIXED IND 10UH 590MA 330MOHM SMD TDK Corporation |
0 |
|
规格书 |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 590 mA | - | Shielded | 330mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.110" W (3.00mm x 2.80mm) | 0.047" (1.20mm) |
|
|
VLF3012ST-150MR49FIXED IND 15UH 490MA 490MOHM SMD TDK Corporation |
0 |
|
规格书 |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 490 mA | - | Shielded | 490mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.110" W (3.00mm x 2.80mm) | 0.047" (1.20mm) |
|
|
VLF3012ST-1R0N2R0FIXED IND 1UH 2A 38 MOHM SMD TDK Corporation |
0 |
|
规格书 |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 2 A | - | Shielded | 38mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.110" W (3.00mm x 2.80mm) | 0.047" (1.20mm) |
|
|
VLF3012ST-2R2M1R4FIXED IND 2.2UH 1.4A 72 MOHM SMD TDK Corporation |
0 |
|
规格书 |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.4 A | - | Shielded | 72mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.110" W (3.00mm x 2.80mm) | 0.047" (1.20mm) |
|
|
VLF3012ST-3R3M1R1FIXED IND 3.3UH 1.1A 110MOHM SMD TDK Corporation |
0 |
|
规格书 |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 1.1 A | - | Shielded | 110mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.110" W (3.00mm x 2.80mm) | 0.047" (1.20mm) |
|
|
VLF3012ST-4R7MR91FIXED IND 4.7UH 910MA 155MOHM SM TDK Corporation |
0 |
|
规格书 |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 910 mA | - | Shielded | 155mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.110" W (3.00mm x 2.80mm) | 0.047" (1.20mm) |
|
|
VLF3012ST-220MR43FIXED IND 22UH 430MA 740MOHM SMD TDK Corporation |
3 |
|
规格书 |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 430 mA | - | Shielded | 740mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.110" W (3.00mm x 2.80mm) | 0.047" (1.20mm) |
|
VLF252010MT-R68N-CAFIXED IND 680NH 2.7A 43 MOHM SMD TDK Corporation |
0 |
|
规格书 |
VLF-M-CA | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 680 nH | ±30% | 2.7 A | 1.7A | Shielded | 43mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
VLF4010ST-100MR80FIXED IND 10UH 800MA 300MOHM SMD TDK Corporation |
0 |
|
规格书 |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 800 mA | 800mA | Shielded | 300mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.169" L x 0.157" W (4.30mm x 4.00mm) | 0.039" (1.00mm) |
|
|
VLF4010ST-1R0N1R9FIXED IND 1UH 1.9A 60 MOHM SMD TDK Corporation |
0 |
|
规格书 |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 1.9 A | 2.1A | Shielded | 60mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.169" L x 0.157" W (4.30mm x 4.00mm) | 0.039" (1.00mm) |
