固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SLF7032T-470MR67-2FIXED IND 47UH 670MA 288MOHM SMD TDK Corporation |
0 |
|
规格书 |
SLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 670 mA | - | Shielded | 288mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.134" (3.40mm) |
|
|
SLF7032T-101MR45-2FIXED IND 100UH 450MA 540MOHM SM TDK Corporation |
0 |
|
规格书 |
SLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 450 mA | - | Shielded | 540mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.134" (3.40mm) |
|
VLS3012T-100MR72FIXED IND 10UH 720MA 336MOHM SMD TDK Corporation |
0 |
|
规格书 |
VLS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 10 µH | ±20% | 720 mA | 720mA | Shielded | 336mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
VLS3012T-1R0N2R2FIXED IND 1UH 2.2A 70 MOHM SMD TDK Corporation |
0 |
|
规格书 |
VLS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 1 µH | ±30% | 2.2 A | 2.2A | Shielded | 70mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
VLS3012T-1R5N1R7FIXED IND 1.5UH 1.7A 82 MOHM SMD TDK Corporation |
0 |
|
规格书 |
VLS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 1.5 µH | ±30% | 1.7 A | 1.7A | Shielded | 82mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
VLS3012T-2R2M1R5FIXED IND 2.2UH 1.5A 98 MOHM SMD TDK Corporation |
0 |
|
规格书 |
VLS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 2.2 µH | ±20% | 1.5 A | 1.5A | Shielded | 98mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
VLS3012T-330MR40FIXED IND 33UH 400MA 1.248OHM SM TDK Corporation |
0 |
|
规格书 |
VLS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 33 µH | ±20% | 400 mA | 400mA | Shielded | 1.248Ohm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
VLS3012T-4R7M1R0FIXED IND 4.7UH 1A 156 MOHM SMD TDK Corporation |
0 |
|
规格书 |
VLS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 4.7 µH | ±20% | 1 A | 1A | Shielded | 156mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
VLF4012ST-100MR65FIXED IND 10UH 650MA 490MOHM SMD TDK Corporation |
0 |
|
规格书 |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 650 mA | 900mA | Shielded | 490mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.150" L x 0.142" W (3.80mm x 3.60mm) | 0.047" (1.20mm) |
|
|

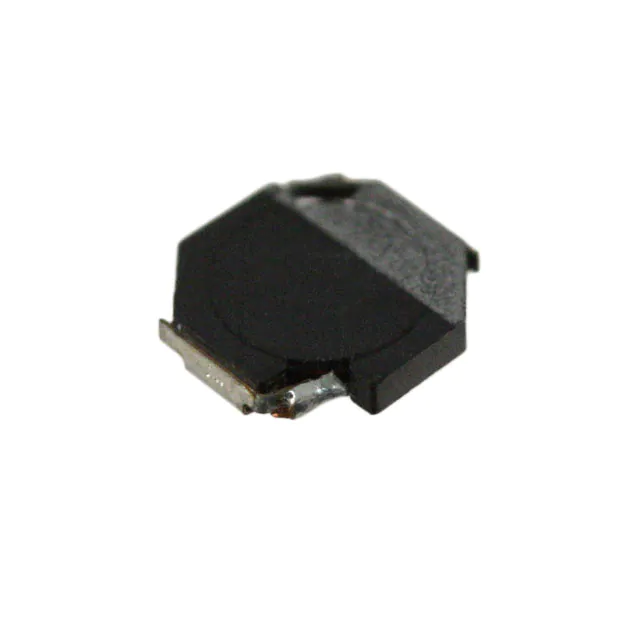

VLF4012ST-1R0N1R9FIXED IND 1UH 1.9A 54 MOHM SMD TDK Corporation |
0 |
|
规格书 |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 1.9 A | 2.7A | Shielded | 54mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.150" L x 0.142" W (3.80mm x 3.60mm) | 0.047" (1.20mm) |
