固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NLC453232T-150KFIXED IND 15UH 450MA 700MOHM SMD TDK Corporation |
0 |
|
规格书 |
NLC | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 450 mA | - | Unshielded | 700mOhm Max | 10 @ 2.52MHz | 20MHz | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
NLC453232T-220KFIXED IND 22UH 370MA 900MOHM SMD TDK Corporation |
0 |
|
规格书 |
NLC | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 370 mA | - | Unshielded | 900mOhm Max | 10 @ 2.52MHz | 18MHz | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
NLC453232T-330KFIXED IND 33UH 300MA 1.4 OHM SMD TDK Corporation |
0 |
|
规格书 |
NLC | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 300 mA | - | Unshielded | 1.4Ohm Max | 10 @ 2.52MHz | 14MHz | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
NLC453232T-470KFIXED IND 47UH 260MA 1.9 OHM SMD TDK Corporation |
0 |
|
规格书 |
NLC | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 260 mA | - | Unshielded | 1.9Ohm Max | 10 @ 2.52MHz | 11.5MHz | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
NLC453232T-680KFIXED IND 68UH 220MA 2.6 OHM SMD TDK Corporation |
0 |
|
规格书 |
NLC | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 220 mA | - | Unshielded | 2.6Ohm Max | 10 @ 2.52MHz | 10MHz | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
NLC453232T-101KFIXED IND 100UH 180MA 4 OHM SMD TDK Corporation |
0 |
|
规格书 |
NLC | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 180 mA | - | Unshielded | 4Ohm Max | 20 @ 796kHz | 8MHz | - | -40°C ~ 85°C | 796 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|

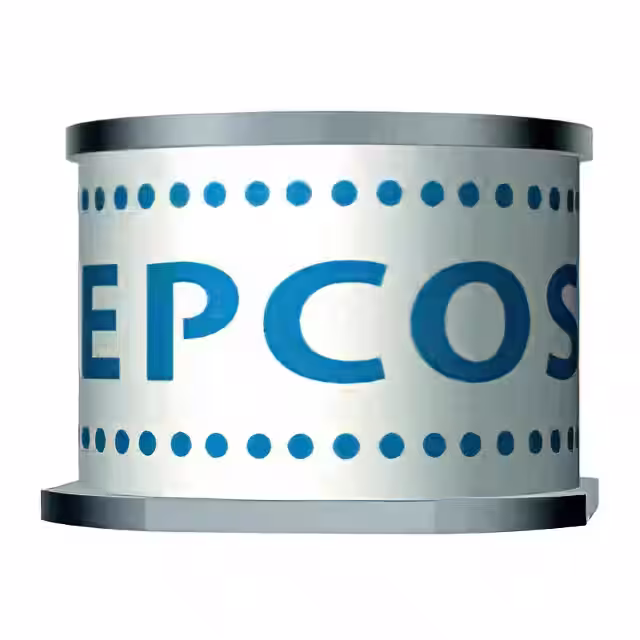

NLC453232T-151KFIXED IND 150UH 140MA 6.5OHM SMD TDK Corporation |
0 |
|
规格书 |
NLC | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 140 mA | - | Unshielded | 6.5Ohm Max | 20 @ 796kHz | 7MHz | - | -40°C ~ 85°C | 796 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
NLC453232T-221KFIXED IND 220UH 120MA 9 OHM SMD TDK Corporation |
0 |
|
规格书 |
NLC | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 120 mA | - | Unshielded | 9Ohm Max | 20 @ 796kHz | 5.5MHz | - | -40°C ~ 85°C | 796 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
NLC453232T-331KFIXED IND 330UH 90MA 13 OHM SMD TDK Corporation |
0 |
|
规格书 |
NLC | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 90 mA | - | Unshielded | 13Ohm Max | 20 @ 796kHz | 4MHz | - | -40°C ~ 85°C | 796 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
NL453232T-821J-PFFIXED IND 820UH 30MA 35 OHM SMD TDK Corporation |
0 |
|
规格书 |
NL | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 820 µH | ±5% | 30 mA | - | Unshielded | 35Ohm Max | 30 @ 796kHz | 2.5MHz | - | -40°C ~ 105°C | 796 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
